1019427 PHOENIX CONTACT -

SCC 15-F - Shield connection clamp

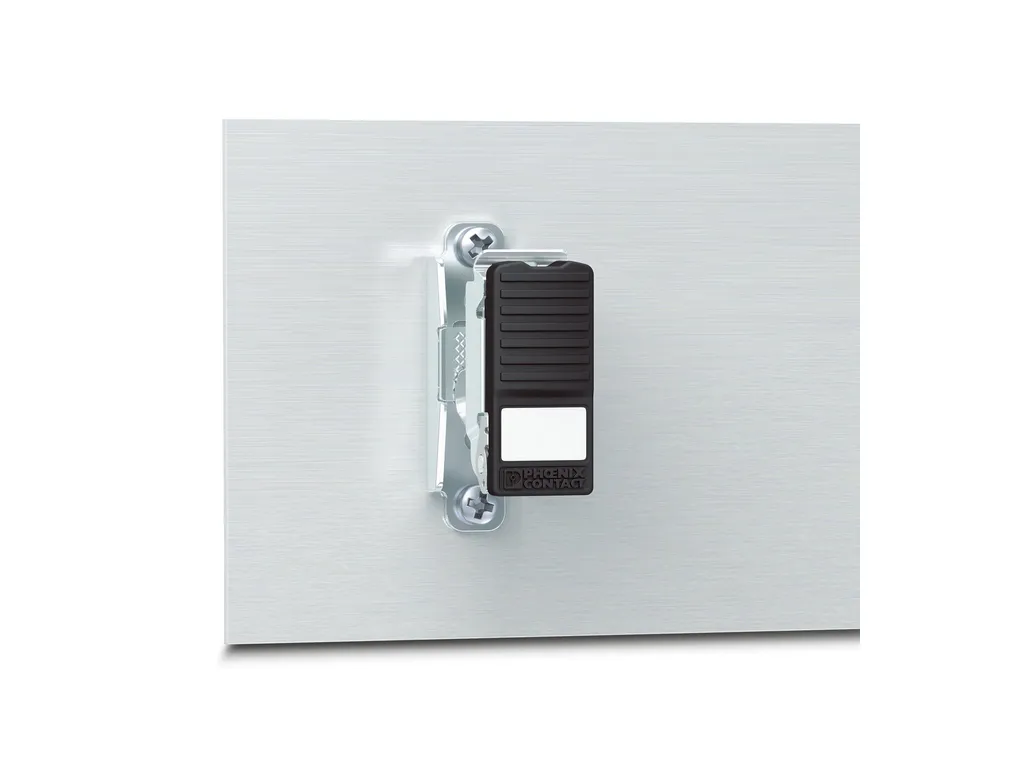

Shield connection clamp, number of positions: 1, connection method: Spring-cage connection, mounting type: Mounting panel, color: black

Product Code: 1019427 copia - copy

Partner cod.: 1019427 copia - copy

PHOENIX CONTACT

Notes	General Note: The shield connection clamps must not be used for strain relief of cables/conductors. Do not use for pretective conductor connection.
Product properties	Product type: Shield connection clamp Number of positions: 1
Electrical properties	Maximum power dissipation for nominal condition: 0 W
Connection data	Stripping length: 50 mm
Dimensions	Width: 19 mm Height: 47.6 mm Depth: 35 mm
Material specifications	Color: black Flammability rating according to UL 94: V0 Insulating material group: CTI 600 Insulating material: PA 6.6 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Cable/line	External cable diameter: 8 mm ... 15 mm
Mechanical tests	Mechanical strength Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: Mounting panel
