| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling Further products with variable cable type and variable cable length can be found in the accessories section |
| Product properties | Product type: Data cable preassembled Sensor type: PROFINET Number of positions: 4 Application: Standard Shielded: yes Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Interfaces | Bus system: PROFINET Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps EtherCATî CAT5 (IEC 11801), 100 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Material specifications | Flammability rating according to UL 94: V2 |

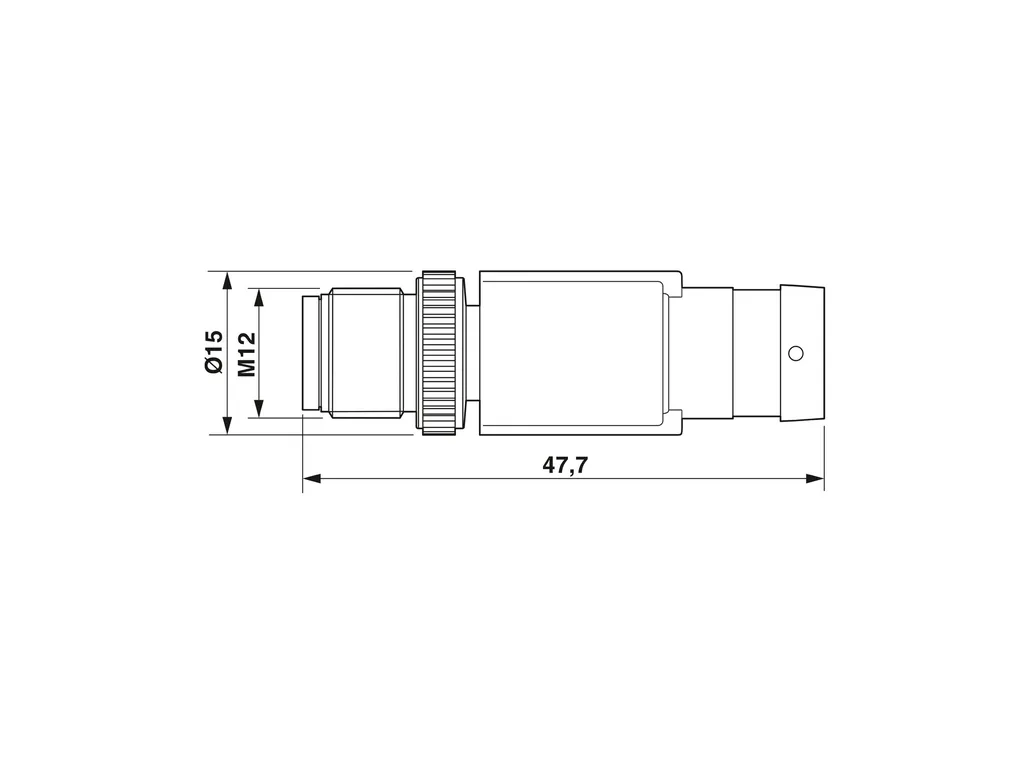

| Connector | Connection 1 Type: Plug straight M12 / IP67 Number of positions: 4 Coding type: D (Data) Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Zinc die-cast, nickel-plated (Screw connection) FKM (Seal) Insertion/withdrawal cycles: ââ°¥ 100 100 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Tightening torque: 0.4 Nm Degree of protection: IP67 Ambient temperature (operation): -25°C ... 90°C Connection 2 Type: Plug straight RJ45 / IP20 Number of positions: 4 (8) 4 Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) PA (Housing) Insertion/withdrawal cycles: ââ°¥ 750 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Ambient temperature (operation): -25°C ... 80°C Degree of protection: IP20 |
| Cable/line | Cable length: 10 m PROFINET drag chain CAT5Ã[93C] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG Cable weight: 61 kg/km Number of positions: 4 Shielded: yes Cable type: PROFINET drag chain CAT5Ã[93C] Conductor structure: 1x4xAWG22/7, SF/TQ Signal runtime: 5.3 ns/m Signal speed: 0.66 c Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Wire diameter incl. insulation: 1.5 mm External cable diameter: 6.5 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: green RAL 6018 Conductor material: Tin-plated Cu litz wires Material wire insulation: PE Single wire, color: white, yellow, blue, orange Thickness, outer sheath: approx. 0.9 mm Overall twist: Star quad Optical shield covering: 85 % Insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 20.00 mé/m (at 10 MHz) Loop resistance: ââ°¤ 120.00 é/km Wave impedance: 100 é ñ15Ãé (at 1 ... 100 MHz) Nominal voltage, cable: 600 V (UL rating) Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 7.5 x D Smallest bending radius, fixed installation: 33 mm Smallest bending radius, movable installation: 49 mm Max. bending cycles: 3000000 Tensile strength: ââ°¤ 150 N Torsion force: ñ 30°/m Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 Ãà Hz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20ÃÃà Hz) 60 dB (at 31.25ÃÃà Hz) 55 dB (at 62.5ÃÃà Hz) 50 dB (at 100 MHz) Shield attenuation: 2.1 dB (with 1 MHz) 4 dB (at 4 Ãà Hz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20ÃÃà Hz) 11.4 dB (at 31.25ÃÃà Hz) 16.5 dB (at 62.5ÃÃà Hz) 21.3 dB (at 100 MHz) Halogen-free: yes Flame resistance: according to IEC 60332-1-2 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: UV resistant Special properties: Electrical properties in accordance with EN 50288-2-2 Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation) -40°C ... 70°C (Cable, flexible installation) Ambient temperature (installation): -20°C ... 60°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (M12 connector) IP67 (M12 connector) IP20 (RJ45 connector) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
