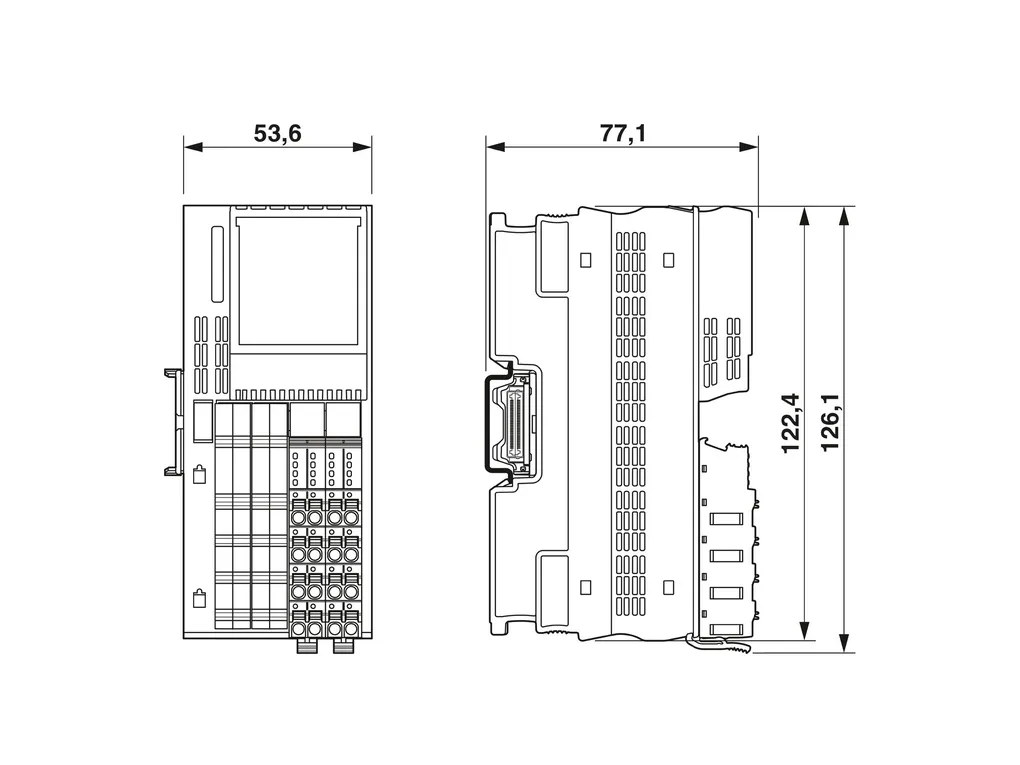

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/74eb6a06d0a7be42a613b7c139bfe300/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 77.14 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715). |
| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area Utilization restrictionââ¬Ã¢¹ CCCex note: Use in potentially explosive areas is not permitted in China. |
| Material specifications | Color: traffic grey A RAL 7042 |
| Interfaces | Axioline P local bus Connection method: Bus base module Transmission speed: 100 Mbps |
| Input data | Analog Input name: Active analog inputs Description of the input: HART enabled, passive analog input signals Number of inputs: 8 (HART) Connection method: Push-in connection Connection technology: 2-conductor Note regarding the connection technology: shielded, twisted pair Current input signal: 4 mA ... 20 mA Protective circuit: Polarity reversal protection of the inputs |
| Product properties | Type: block modular Product type: I/O component Product family: Axioline P Mounting position: any (no temperature derating) Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Potentials: Supply of the logic voltage U Supply voltage range: 19.2 VÃDC ... 30 VÃDC (via bus base module (UL) at AXLÃPÃBK...) Potentials: Supply of the AxiolineÃP local bus U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 135 mA Potentials: Axioline P extension module supply voltage Supply voltage: UL (via bus base module) Current draw: max. 260 mA (via bus base module) Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (UBus) / functional ground: 500 VÃAC, 62 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 62 Hz, 1 min. Test voltage: Field to functional earth: 500 VÃAC, 62 Hz, 1 min. Test voltage: Field to 5ÃV and 24ÃV supplies: 1500 VÃAC, 62 Hz, 1 min. |
| Connection data | Connection technology Connection name: Axioline P connector Note on the connection method: Please observe the information provided on conductor cross sections in the ââ¬Ã AxiolineÃP: system and installationâ⬠user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm Axioline P connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the ââ¬Ã AxiolineÃP: system and installationâ⬠user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C (Standard) Air pressure (operation): 70 kPa ... 106 kPa (up to 2000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 2000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
| Approvals | ATEX Identification: II 3G Ex ec IIC T4 Gc Certificate: DEMKO 20 ATEX 2334X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx UL 20.0002X UKCAÃExÃ(UKEX) Identification: II 3G Ex ec IIC T4 Gc Certificate: PxCAI22UKEx1052416X CCCÃEx Identification: Ex e ib mb [ia Ga] IIC T4 Gb [Ex iaD] Certificate: 2022122310115622 Ex data UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any (no temperature derating) |
