1071138 PHOENIX CONTACT -

EH 70-C CS/ABS-PC BK9005 - Upper part of housing

DIN rail housing, Upper housing part, tall design, no connection opening, width: 70.1 mm, height: 75 mm, depth: 36.95 mm, color: black (9005)

Product Code: 1071138 copia - copy

Partner cod.: 1071138 copia - copy

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Product family: EH 70 Type: Upper housing part, tall design, no connection opening Housing type: DIN rail housing Ventilation openings present: no Housing series: EH

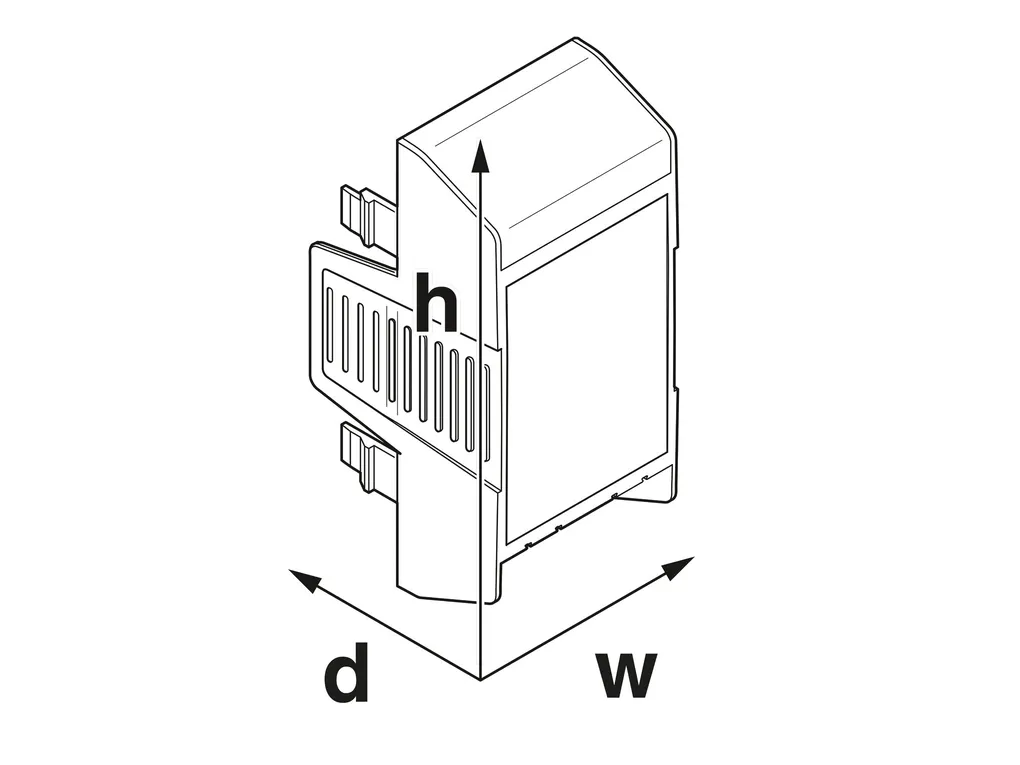

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af0ef00338de04587d2a8bc62cf44b8/-S204x204-FJPG Width: 70.1 mm Height: 75 mm Depth: 36.95 mm Depth from base support surface: 19.95 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: ABS-PC
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 %
PCB data	Type of PCB mount: Slot
Mounting	Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail)
