1080099 PHOENIX CONTACT -

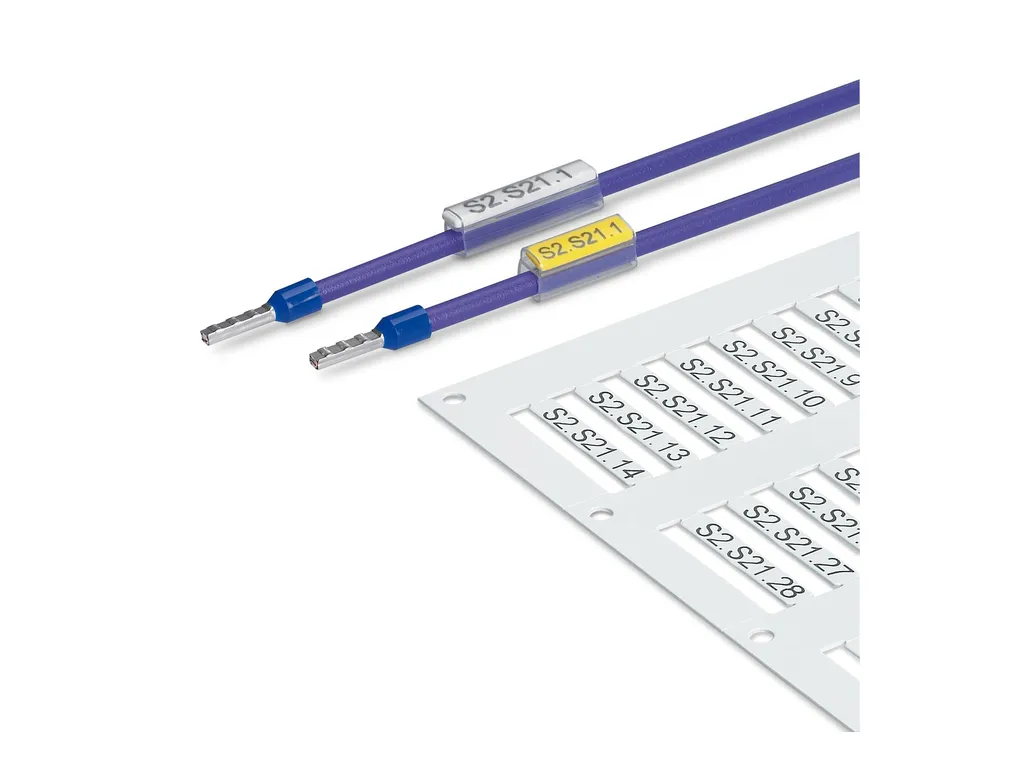

WMT (15X4)RL - Cable marker

Cable marker, Roll, white, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: insert, cable diameter range: 0.6 ... 45 mm, lettering field size: 15x4mm, Number of individual labels: 6000

Product Code: 1080099 copia - copy

Partner cod.: 1080099 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Roll Marking Number of individual labels: 6000 Number of individual labels per row: 6 Identification technology: Thermal transfer for rolls
Dimensions	Width: 4 mm Length: 15 mm External dimensions Outside diameter: 0.6 mm ... 45 mm
Material specifications	Color: white Material: PVC Base element material: PVC Components: Silicone-free
Cable/line	External cable diameter: 0.6 mm ... 45 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed Test for substances that would hinder coating with paint or varnishÃ¢Ã¢¬Ã¢¹ Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 80Ã°C (105Ã°C): Test passed Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -30°C ... 80°C Recommended ambient temperature (storage/transport): 10°C ... 30°C Recommended humidity (storage/transport): 40 % ... 70 % (Storage in a dry and dark place in the original packaging is recommended) Shelf life: 1ÃYear
Mounting	Mounting type: insert
