1085638 PHOENIX CONTACT -

EV-T2HPCC-DC500A-5,0M50ECBK11 - DC charging cable

CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with replaceable mating face frame, with replaceable DC power contacts, without panel feed-through, with digital temperature sensors, HPC CCS type2, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIXCONTACT logo, cable: 5 m, black, straight

Product Code: 1085638 copia - copy

Partner cod.: 1085638 copia - copy

PHOENIX CONTACT

Product properties	Product type: DC charging cable Product family: CHARX connect professional Application: for charging electric vehicles (EV) with direct current (DC) for installation at charging stations for electromobility (EVSE) Type: HPC DC charging cable with cooled vehicle charging connector and cooled cable Design: with replaceable mating face frame with replaceable DC power contacts without panel feed-through with digital temperature sensors Technology: Combined Charging System High Power Charging Affixed logo: PHOENIXÃCONTACT logo Label: 8.9Ãmm x 28.9Ãmm (customer logo on request) Charging standard: HPC CCS typeÃ2 Charging mode: Mode 4 Cooling system Cooling: in the vehicle charging connector and in the cable Coolant: 50%Ãwater, 50%Ãglycol (Glysofor N) Cooling capacity: 600 W (Cable length: 3Ãm) 800 W (Cable length: 4Ãm) 900 W (Cable length: 5Ãm) 1050 W (Cable length: 6Ãm) Cooling hose diameter: 1x 11.5 mm Supply hose 2x 8.8 mm Return hoses Flow rate: 2Ãl/min Operating pressure: 1.00 bar ... 2.00 bar Relief pressure: 2.00 bar Maximum permissible pressure: 4.00 bar Flow temperature: 15°C Communication interface: CAN bus for reading the temperature and leakage sensor data Digital output for determining the functional status of the vehicle connector
Electrical properties	Type of signal transmission: Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 Note on the connection method: Crimp connection, cannot be disconnected Coding: 1500ÃÃ© (between PE and PP) Temperature monitoring: 2x NTC (replaceable, front DC contacts) 2x NTC (DC power wires inside) Type of charging current: DC DC Boost Mode Charging power: 500 kW up to 700 kW (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.) Charging current: 500 A up to 700 A (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.) Power contact Number: 3 (PE, DC+, DC-) Rated voltage: 1000 VÃDC Rated current: 500 A (up to 40Ã°C) Signal contact Number: 2 (CP, PP) Rated voltage: 30 VÃAC Rated current: 2 A Temperature sensors (NTC) Sensor type: NTC Attachment point: 2Ãsensors for the replaceable front DC contacts 2Ãsensors for the internal DC power wires Switch-off temperature: 90°C

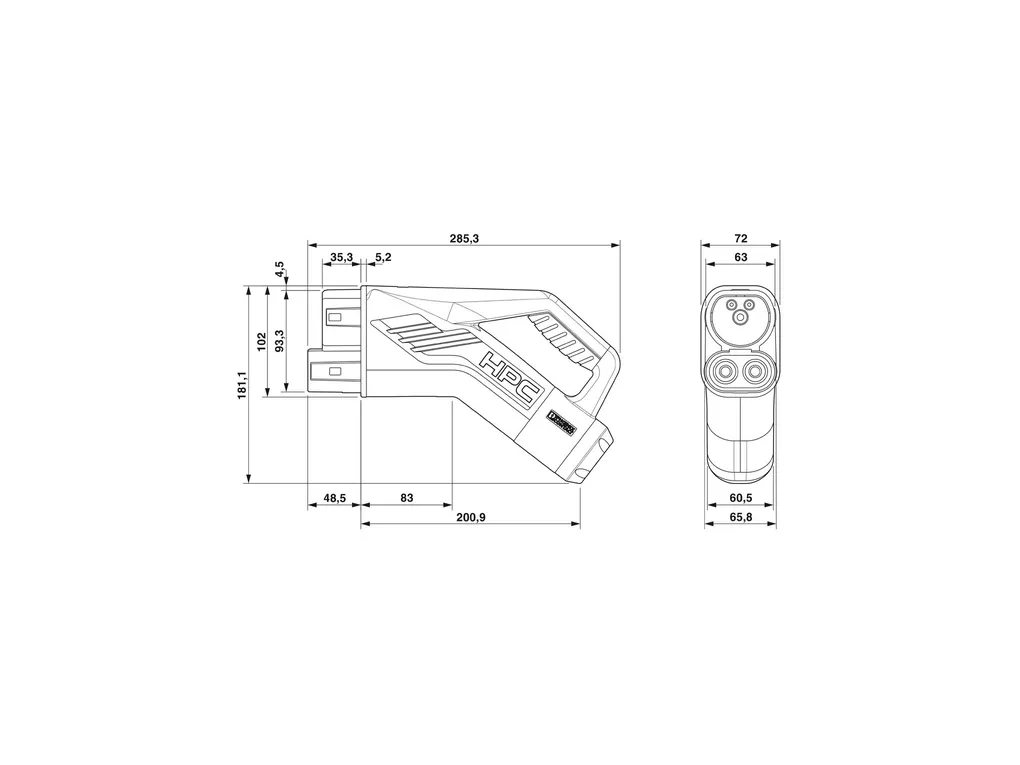

Dimensions	Vehicle charging connector Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7984ce1ae5b79543ae159a03e9501405/-S204x204-FJPG Width: 72 mm Height: 181.1 mm Depth: 285.3 mm
Material specifications	Color (Housing): black (9005) Color (Handle area): black (9005) Color (Mating face): black (9005) Color (Cable): black (9005) Material (Vehicle charging connector): Plastic Material (Cable outer sheath): EVM-1 in accordance with EN 50620 Material (Contact surface): Silver Flammability rating according to UL 94: V0 (Mating face)
Cable/line	Cable length: 5 m Ã±45Ãmm Wiring standards/regulations: Based on ULÃ62 (FileÃE515623, VolÃ1) Based on IEC 62893 Cable weight: max. 1938 kg/km Cable type: straight Cable structure: 5ÃxÃ25Ãmm²Ã+Ã7ÃxÃ0.75Ãmm² External cable diameter: 35.7 mm Ã±0.4Ãmm Outer sheath, material: TPE-U in accordance with IEC 62893-1 Stripping length of the sheath: 250 mm Ã±5Ãmm Cable resistance: Ã¢Ã¢°¤ 0.00078 Ã©/m (based on a power core, at an ambient temperature of 20°C) Bending radius: min. 357 mm (10x diameter)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 10000 Insertion force: < 100 N Withdrawal force: < 100 N
Environmental and real-life conditions	Ambient conditions Degree of protection (Vehicle charging connector): IP54 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) Ambient temperature (operation): -30°C ... 40°C max. 55°C (Current reduction required, observe the DC contact temperature limit value ofÃ90°C) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: 5000 m (above sea level)
Standards and regulations	Standards Standards/regulations: IEC 62196-3-1
