| Product properties | Product type: Front adapter Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (per branch): ââ°¤ 1 A Current (per byte): ââ°¤ 2 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller SIEMENS S7-1500 Suitable I/O card: 6ES7521-1BH10-0AA0 6ES7522-1BH10-0AA0 |

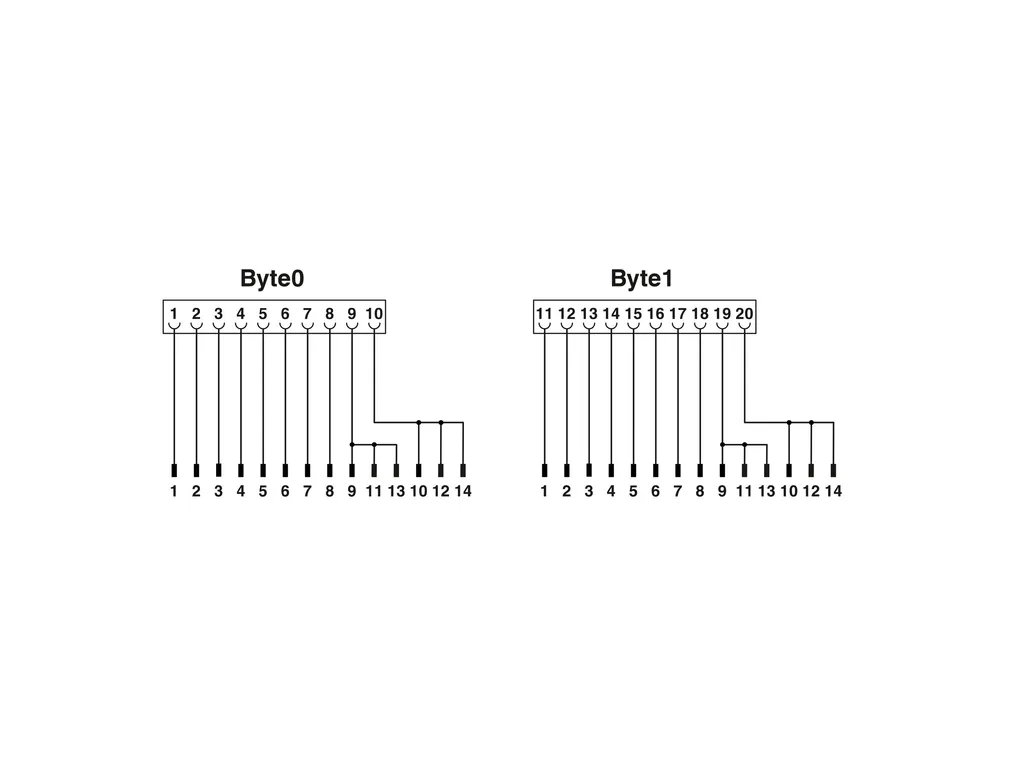

| Connection data | ConnectionÃ1 (control level) Connection method: Plug-in connection Number of connections: 1 Number of positions: 24 ConnectionÃ2 (field level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 2 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Dimensions | Item dimensions Width: 13 mm Height: 118.56 mm Depth: 27.75 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP20 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UL, USA/Canada Identification: ULÃ508 Recognized |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: Plug-in mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
