1104789 PHOENIX CONTACT -

PLC-V8L/D15S/OUT - System connection

V8 adapter for 8 x PLC-INTERFACE (14 mm), connection 1: D-SUB pin strip 1x 15-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend

Product Code: 1104789 copia - copy

Partner cod.: 1104789 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: PLC-INTERFACE Number of positions: 15 No. of channels: 8 Operating mode: 100% operating factor Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 8 Operating voltage range: 18 VÃDC ... 30 VÃDC Current (per branch): Ã¢Ã¢°¤ 1 A Current (Power supply): Ã¢Ã¢°¤ 3 A Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV (1.2/50 Ã¼s) Supported controller universal Suitable I/O card: universal
Connection data	ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60807-2 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 15 Insertion/withdrawal cycles: > 500 Pitch: 2.74 mm ConnectionÃ2 (field level) Connection method: Plug-in connection Note: Can be snapped onto 8x PLC-INTERFACE terminals ConnectionÃ3 (supply) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of connections: 1 Number of positions: 2 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Signaling	Status display present: Yes Operating voltage display: Green LED

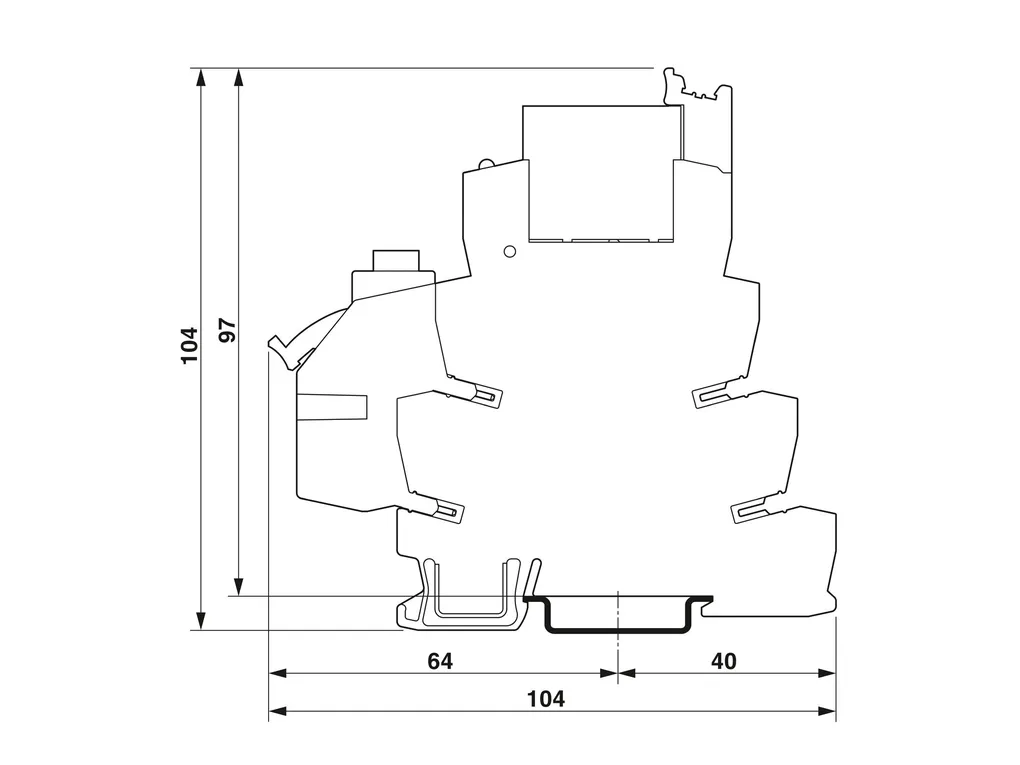

Dimensions	Item dimensions Width: 112.3 mm Height: 41.02 mm Depth: 49.89 mm
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP20 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 DNV GL data Temperature: D Humidity: A Vibration: C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: Plug-on assembly Assembly instructions: in rows with zero spacing Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
