| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |

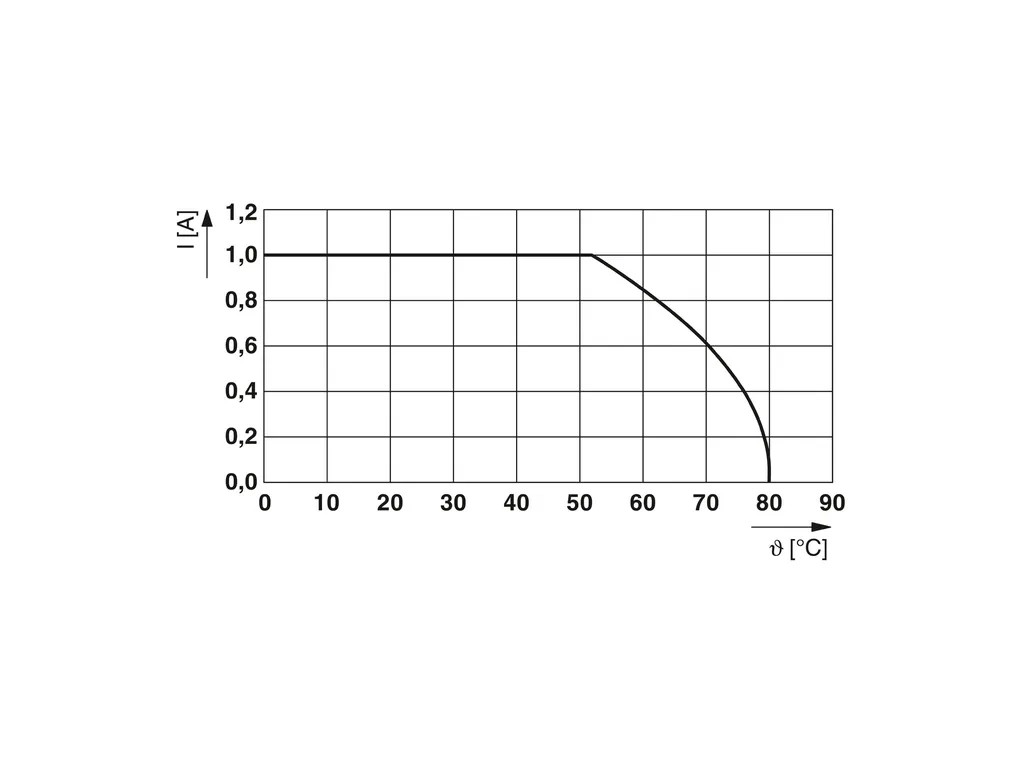

| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path, 50°C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70°C): ââ°¤ 0.6 A (Uncoiled, see derating) Supported controller SIEMENS ET 200SP HA Suitable terminal block: 6DL1193-6TP00-0BH1 6DL1193-6TP00-0DH1 6DL1193-6TP00-0BM1 6DL1193-6TP00-0DM1 Suitable I/O module: 6DL1131-6BL00-0PH1 (Terminal Block H1/M1) 6DL1132-6BL00-0PH1 (Terminal Block H1/M1) |
| Cable/line | Cable length: 1 m 10X0.14Ã[PVC] UL AWM Style: 2464/1061 Number of positions: 10 Shielded: no Cable type: 10X0.14Ã[PVC] Conductor type: Round cable set Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 10x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03Ãmm External cable diameter: 6.1 mm ñ0.4Ãmm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20ðC) Insulation resistance: ââ°¥ 20 Mé*km (20ðC) Smallest bending radius, fixed installation: 52 mm Smallest bending radius, movable installation: 98 mm Max. bending cycles: 5000 Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code D-SUB 37 X1 (1): D-SUB15 X2 (1) = black D-SUB 37 X1 (2): D-SUB15 X2 (2) = brown D-SUB 37 X1 (3): D-SUB15 X2 (3) = red D-SUB 37 X1 (4): D-SUB15 X2 (4) = orange D-SUB 37 X1 (5): D-SUB15 X2 (5) = yellow D-SUB 37 X1 (6): D-SUB15 X2 (6) = green D-SUB 37 X1 (7): D-SUB15 X2 (7) = blue D-SUB 37 X1 (8): D-SUB15 X2 (8) = violet D-SUB 37 X1 (17): D-SUB15 X2 (9) = gray D-SUB15 X4 (9) = gray D-SUB 37 X1 (36): D-SUB15 X2 (10) = white D-SUB15 X4 (10) = white D-SUB 37 X1 (9): D-SUB15 X3 (1) = black D-SUB 37 X1 (10): D-SUB15 X3 (2) = brown D-SUB 37 X1 (11): D-SUB15 X3 (3) = red D-SUB 37 X1 (12): D-SUB15 X3 (4) = orange D-SUB 37 X1 (13): D-SUB15 X3 (5) = yellow D-SUB 37 X1 (14): D-SUB15 X3 (6) = green D-SUB 37 X1 (15): D-SUB15 X3 (7) = blue D-SUB 37 X1 (16): D-SUB15 X3 (8) = violet D-SUB 37 X1 (18): D-SUB15 X3 (9) = gray D-SUB15 X5 (9) = gray D-SUB 37 X1 (37): D-SUB15 X3 (10) = white D-SUB15 X5 (10) = white D-SUB 37 X1 (20): D-SUB15 X4 (1) = black D-SUB 37 X1 (21): D-SUB15 X4 (2) = brown D-SUB 37 X1 (22): D-SUB15 X4 (3) = red D-SUB 37 X1 (23): D-SUB15 X4 (4) = orange D-SUB 37 X1 (24): D-SUB15 X4 (5) = yellow D-SUB 37 X1 (25): D-SUB15 X4 (6) = green D-SUB 37 X1 (26): D-SUB15 X4 (7) = blue D-SUB 37 X1 (27): D-SUB15 X4 (8) = violet D-SUB 37 X1 (28): D-SUB15 X5 (1) = black D-SUB 37 X1 (29): D-SUB15 X5 (2) = brown D-SUB 37 X1 (30): D-SUB15 X5 (3) = red D-SUB 37 X1 (31): D-SUB15 X5 (4) = orange D-SUB 37 X1 (32): D-SUB15 X5 (5) = yellow D-SUB 37 X1 (33): D-SUB15 X5 (6) = green D-SUB 37 X1 (34): D-SUB15 X5 (7) = blue D-SUB 37 X1 (35): D-SUB15 X5 (8) = violet |
| Connection data | Connection 1 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 M2,5 Number of connections: 1 Number of positions: 37 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.77 mm Connection 2 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 M2,5 Number of connections: 4 Number of positions: 15 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.74 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
