1125988 PHOENIX CONTACT -

PLC-RPT-120UC/21/SO46 - Relay Module

PLC-INTERFACE for protection against interference currents/voltages on the control side. Consisting of PLC-BPT-120UC/21/SO46 basic terminal block with Push-in connection and plug-in miniature relay with power contact up to 6A, 1changeover contact, 120VAC input voltage

Product Code: 1125988 copia - copy

Partner cod.: 1125988 copia - copy

PHOENIX CONTACT

Notes	General: Separating plate PLC-ATP must be installed for voltages larger than 250ÃV (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... The PLC-ATP separating plate should be installed for safe isolation between adjacent modules The PLC-ATP separating plate is required at the start and end of every PLC terminal strip. The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.
Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Filter to prevent interference Operating mode: 100% operating factor Mechanical service life: 2x 10⁷ cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 3
Electrical properties	Maximum power dissipation for nominal condition: 0.84 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV

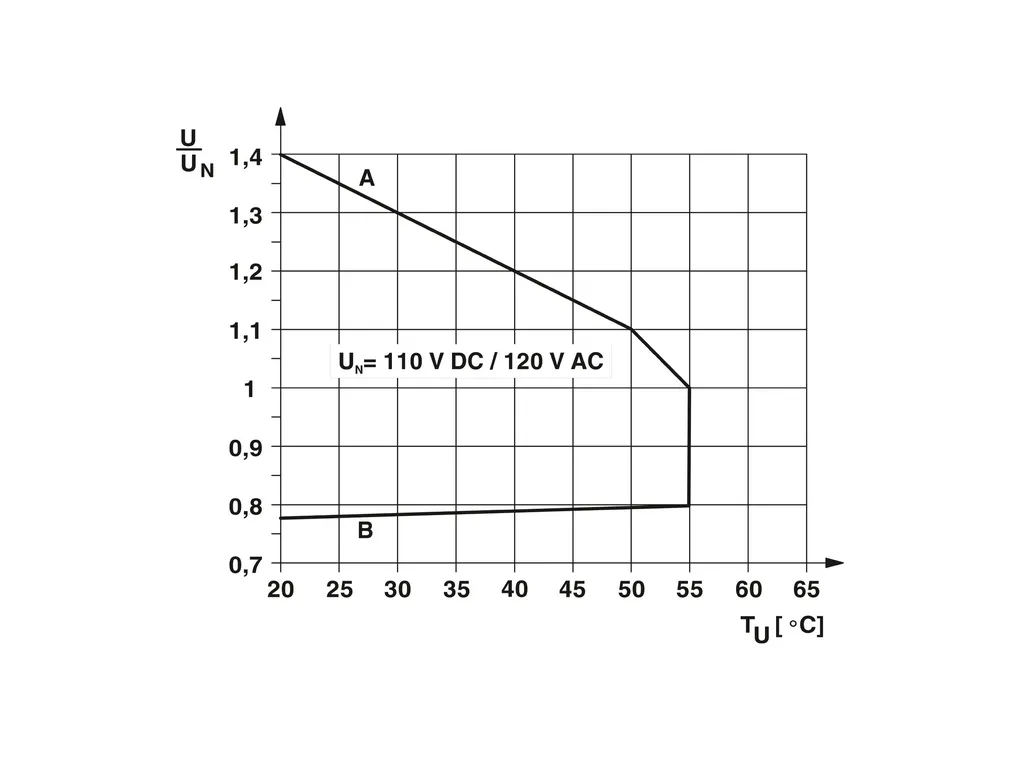

Input data	Coil side Nominal input voltage U_N: 120 VÃAC 110 VÃDC Input voltage range: 93.6 VÃAC ... 168 VÃAC (20Ã°C) 85.8 VÃDC ... 154 VÃDC (20Ã°C) Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 7 mA (50ÃHz) 8 mA (60ÃHz) Typical response time: 7 ms Typical release time: 20 ms Typical release voltage: 50 VÃAC Coil voltage: 60 VÃDC Protective circuit: Bridge rectifier RC element Status display: Yellow LED
Output data	Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (100 mA) Limiting continuous current: 6 A Maximum inrush current: 10 A (4 s) Min. switching current: 10 mA (12ÃV) Short-circuit current: 200 A (conditional short-circuit current) Interrupting rating (ohmic load) max.: 140 W (24ÃVÃDC) 20 W (48ÃVÃDC) 18 W (60ÃVÃDC) 23 W (110ÃVÃDC) 40 W (220ÃVÃDC) 1500 VA (250ÃVÃAC) Switching capacity min.: 0.12 W Output fuse: 4 A gL/gG NEOZED Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15)
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 94 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT III (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -40°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
