1148703 PHOENIX CONTACT -

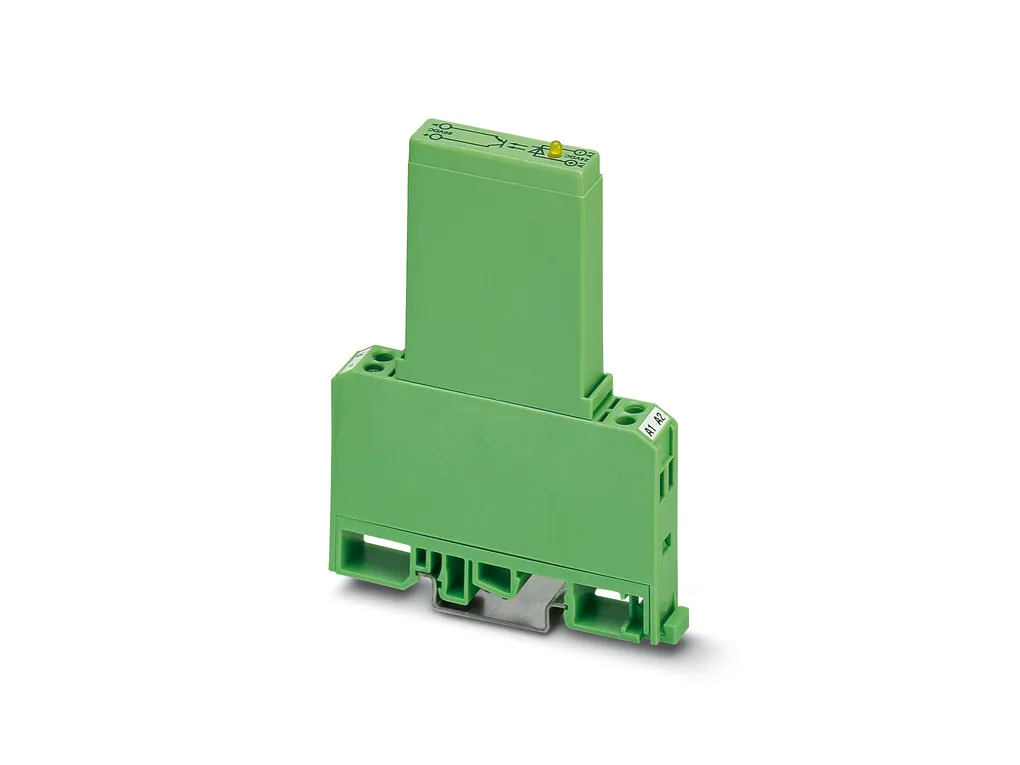

RIF-RPT-LDP-24DC/1X2/3X1/AU/FG - Relay Module

Relay module with Push-in connection, consisting of: relay base with status LED, freewheeling diode, and retaining bracket, safety relay with force-guided contacts in accordance with DINEN61810-3, contact switching type: 3N/O contacts and 1N/C contact, input voltage: 24VDC

Product Code: 1148703 copia - copy

Partner cod.: 1148703 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: RIFLINEÃcomplete Operating mode: 100% operating factor Mechanical service life: approx. 10⁷ cycles B_10d: 810000 Cycles (AC15, 250ÃVÃ/Ã0.5ÃA, 1ÃNO) 170000 Cycles (AC15; 250ÃVÃ/Ã2ÃA; 1ÃNO) 318000 Cycles (DC13, 24ÃVÃ/Ã1ÃA, 1ÃNO) 208000 Cycles (DC13, 24ÃVÃ/Ã2ÃA, 1ÃNO) Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Safe isolation, reinforced insulation and 6 kV between coil and contact circuit and between contacts 11-12 and 13-14, 41-42 to 23-24, 33-34 Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.41 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Test voltage (): 1.5 kV_rms (50ÃHz, 1Ãmin., open contact) 2.5 kV_rms (50ÃHz, 1Ãmin., between contacts: 7, 8 to 9, 10) 4 kV_rms (50ÃHz, 1Ãmin., between contacts: all others) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC (Input/output) Rated surge voltage: 6 kV (Input/output) Short-circuit protection device Current: 10 A (RT28-32) Voltage: 500 V (SCPD) Short-circuit current: 1 kA (conditional short-circuit current)
Input data	Coil side Nominal operating voltage U_N: 24 VÃDC Input voltage range in reference to U_N: See derating diagram Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 17 mA Input power dissipation for U_N: 0.4 W Typical response time: 10 ms Typical release time: 15 ms Coil voltage: 24 VÃDC Protective circuit: Freewheeling diode Status display: Yellow LED
Output data	Switching Contact switching type: 3 N/O contacts, 1 N/C contact Type of switch contact: Single contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 250 VÃAC 300 VÃDC Minimum switching voltage: 10 V (5 mA) Limiting continuous current: 6 A Maximum inrush current: 35 A (20Ãms) Min. switching current: 5 mA (10ÃV) Interrupting rating (ohmic load) max.: 144 W (24ÃVÃDC) 100 W (48ÃVÃDC) 75 W (60ÃVÃDC) 55 W (110ÃVÃDC) 50 W (220ÃVÃDC) 1500 VA (250ÃVÃAC) Force-guided contacts in accordance with ENÃ61810-3: TypeÃA Utilization category CB Scheme (IEC 60947-5-1): AC15, 2 A/240 V (N/O contact) DC13, 2 A/24 V (N/O contact)
Connection data	Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16 (solid) 26 ... 16 (flexible)
Dimensions	Width: 21 mm Height: 96 mm Depth: 67 mm
Material specifications	Flammability rating according to UL 94: V2 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT II (Relay) Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	All specifications in accordance with the standard Standards/regulations: IEC 60947-5-1 IEC 61810-3 Air clearances and creepage distances between the power circuits Standards/regulations: ENÃ61810-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
