| Product properties | Product type: Interface module Product family: VARIOFACE Front Connect Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Max. permissible operating voltage: 30 VÃAC 60 VÃDC Max. permissible current: 2 A (per branch) Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.8 kV (1.2/50 üs) |

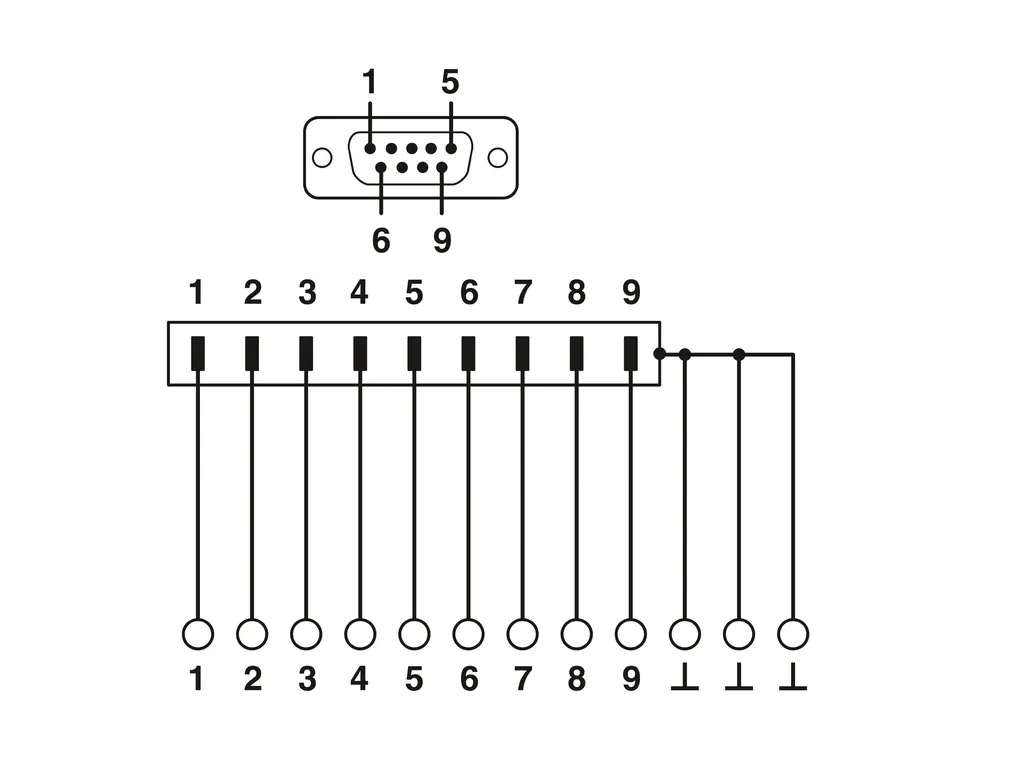

| Connection data | Controller level Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB pin strip Number of connections: 1 Number of positions: 9 Field level Connection method: Push-in connection Stripping length: 10 mm Number of positions: 12 Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) Conductor cross section AWG: 24 ... 16 |
| Dimensions | Item dimensions Width: 18.9 mm Height: 127.2 mm Depth: 46.85 mm |
| Material specifications | Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (ââ°¤Ã2000Ãm) -40°C ... 63°C (2001Ãm - 3000Ãm) Altitude: ââ°¤ 3000 m |
| Approvals | UL, USA/Canada Identification: UL 61010-2-201 CSA, USA/Canada Identification: CSAÃC22.2 NO.Ã61010-2-201 |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: DINÃENÃ60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
