| Notes | General: For 0.14 mm² ... 4.0 mm² solid crimp contacts from the CK1.6 ED..., CK2.5 ED..., CK4.0 ED... series, the list of accessories includes a detailed list of the crimp contacts |

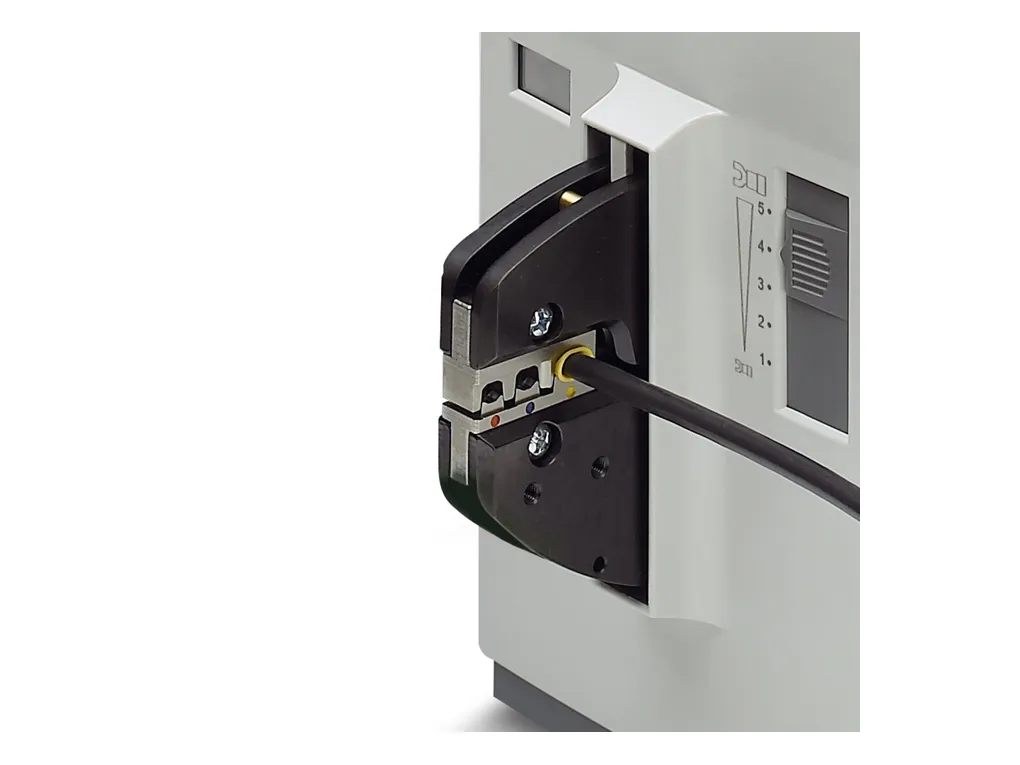

| Product properties | Product type: Die Compression: Square crimp Crimping position 1 Min. cross section: 0.14 mm² Max. cross section: 1 mm² AWG min: 26 AWG max: 18 Crimping position 2 Max. cross section: 1.5 mm² AWG max: 16 Crimping position 3 Max. cross section: 2.5 mm² AWG max: 14 Crimping position 4 Max. cross section: 4 mm² AWG max: 12 |
| Connection data | Conductor connection Cross section range, metric: 0.14 mm² ... 4 mm² Cross section range AWG: 26 ... 12 |
| Dimensions | Width: 9 mm Height: 36 mm Length: 32 mm Min. material thickness: 6.05 mm Max. material thickness: 9 mm |
| Material specifications | Color: nickel-plated Material: Steel Coating: nickel-plated |
