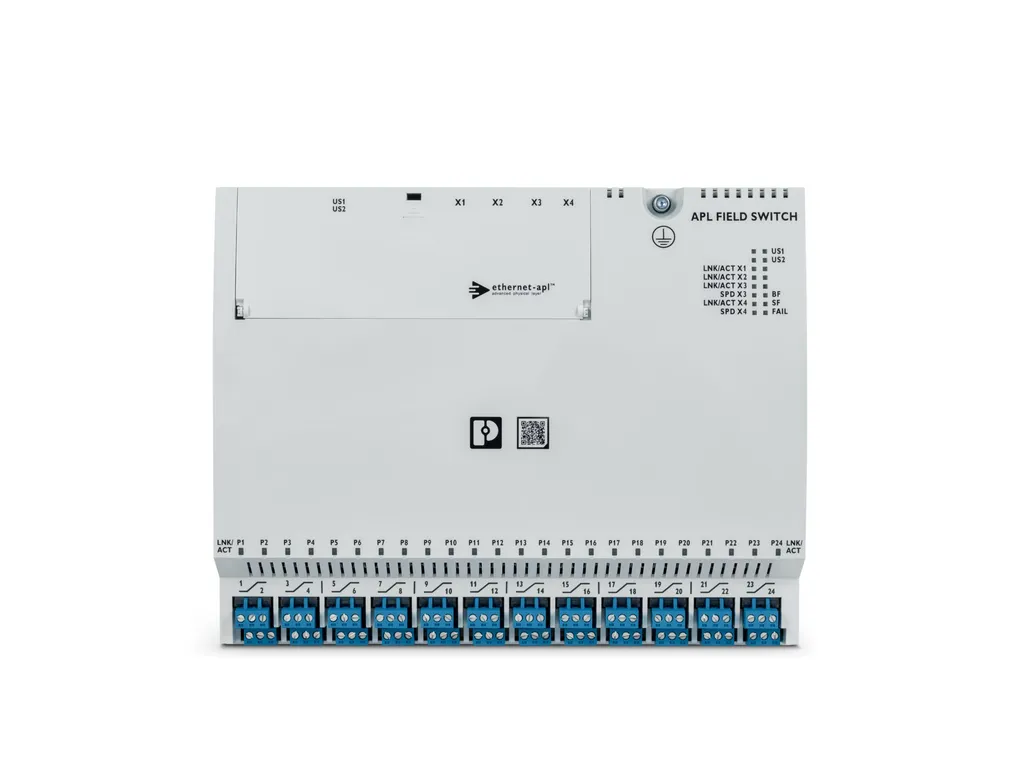

1384244 PHOENIX CONTACT -

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/300470/full/b1500?format=jpg Width: 270 mm Height: 215 mm Depth: 127 mm Note on dimensions: Depth valid when a TH 35-15 DIN rail is used (according to EN 60715).
Notes	Note on application Note on application: Only for industrial use Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Material specifications	Housing material: Die-cast aluminum Polycarbonate
Interfaces	Ethernet (RJ45) Number of interfaces: 2 Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Copper Transmission length: 100 m (per segment) Signal LEDs: Data receive, link status No. of channels: 2 (RJ45 ports) Ethernet (SFP) Number of interfaces: 2 Connection method: SFP Note on the connection method: Full duplex Transmission speed: 100/1000 Mbps (full duplex) Transmission physics: FO Transmission length: Depending on the SFP module used No. of channels: 2 (SFP ports) Ethernet (APL) Connection method: Screw connection Note on the connection method: APL, full duplex Transmission speed: 10 Mbps Transmission physics: Copper No. of channels: 24 (APL ports) Power Source Equipment (PSE) Port: Class A Power Class: SPAA Note: Each port configurable via software Output nominal voltage: Ã¢Ã¢°¥ 9.6 V DC Output current: Ã¢Ã¢°¥ 55.56 mA Output power: Ã¢Ã¢°¥ 0.54 W Power Source Equipment (PSE) Port: Class B, 20 m length Power Class: SPBA Note: Each port configurable via software Output nominal voltage: Ã¢Ã¢°¥ 8.9 V DC Output current: Ã¢Ã¢°¤ 100 mA Output power: Ã¢Ã¢°¤ 0.89 W Power Source Equipment (PSE) Port: Class B, 200 m length Power Class: SPBA Note: Each port configurable via software Output nominal voltage: Ã¢Ã¢°¥ 8.9 V DC Output current: Ã¢Ã¢°¥ 93 mA Output power: Ã¢Ã¢°¤ 0.83 W
Product properties	Product type: Switch Product family: Managed Switch 2000 MTTF: 37.59 Years (SN 29500 standard, temperature 25 °C, operating cycle 21%) 19.62 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25%) 11.6 Years (SN 29500 standard, temperature 70 °C, operating cycle 100%) Special properties: PROFIBUS PA field switch Zone 2 mountable Ex Ã¢Ã¢¬ÃiaÃ¢Ã¢¬Ã¢¢ APL ports four uplink ports Data management status Article revision: 02 Insulation characteristics Protection class: III (IEC 61140, EN 61140, VDE 0140-1) Overvoltage category: II Degree of pollution: 2 Switch functions Diagnostic functions: RMON History LLDP (Link Layer Discovery Protocol) SNMP-Traps N:1-Portmirroring ACD (Address Conflict Detection) SysLog CRC-Surveillance Filter functions: Quality of Service (8 priority classes) Class of Service DiffServ/DSCP Port prioritization VLAN (up to 32 VLANs) IGMP Snooping/Querier (v1/v2) Auto-Query-Port Extended Multicast Filtering IP parameterization: DHCP client DHCP Option 82 (Relay Agent) DHCP server (pool-based, port-based) BootP DCP (Discovery and Configuration Protocol) MAC address table: 8k Management: Web-based management (HTTP/HTTPS) Role-based user management (LDAP, RADIUS) SNMPv1/v2/v3 Redundancy: MRP (Media Redundancy Protocol) RSTP (Rapid Spanning Tree Protocol) Large Tree Support LACP (Link Aggregation Control Protocol) PROFINET S2 system redundancy Time synchronization: SNTP (Simple Network Time Protocol)
Electrical properties	Current consumption: 5.75 A Power consumption: 25 W (idle) Maximum power dissipation for nominal condition: 50 W (24 Class A ports at max. load (22 V DC supply voltage at 70 °C)) Test section: Supply Voltage/spurs 1500 V ACrms 100BASE-T / Spurs 1500 V ACrms SFP / Spurs 1500 V ACrms Spurs / Earth Ground (Housing) 500 V ACrms Block of Spurs / Block of Spurs 500 V ACrms Supply / 100BASE-T 2000 V ACrms 100BASE-T / 100BASE-T 2000 V ACrms Supply / SFP 1500 V ACrms Supply Supply voltage (DC): 24 V DC (Redundancy) Supply voltage range: 22 V DC ... 30 V DC (Redundancy) Max. current consumption: 5.75 A Current consumption: 5.75 A
Connection data	Connection method: Pluggable screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Stripping length: 7 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40 °C ... 70 °C (horizontal) -40 °C ... 60 °C (vertical) Ambient temperature (storage/transport): -40 °C ... 85 °C Altitude: 2000 m (maximum) Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) Shock (operation): 15g (IEC 600868-2-27) Vibration (operation): 1g, according to EN 60068-2-6
Approvals	ATEX Identification: Ã¯Ã II 3(1) G Ex ic ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC Certificate: UL 23 ATEX 2992X IECEx Identification: Ex ic ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC Certificate: IECEx UL 23.0028X UKEX Identification: Ã¯Ã II 3(1) G Ex ic ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC Certificate: UL23UKEX2830X UL, USA/Canada Identification: Ind. Cont. Eq. E238705 also Listed Ind. Cont. Eq. for haz. loc. E196811 Install in: Class I, Div. 2, Groups A, B, C, D T4 Intrinsically safe outputs for: Class I, Div. 2, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz. Loc. Class I, Zone 2, AEx ic ec [ia Ga] IIC T4 Gc, [AEx ia Da] IIIC Ex ic ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC CCC Identification: Ex ic ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC
Ex data	Safety data Max. output voltage U_o: 13.23 V Max. output current I_o: 279.38 mA Max. output power P_o: 1.66 W Safety-related maximum voltage U_m: 60 V A, B / IIC: Max. external inductivity L_o / Max. external capacitance C_o: / 0.5 ÃµF 0.15 mH C/IIB, IIIC: Max. external inductivity L_o / Max. external capacitance C_o: / 1.3 ÃµF 1.5 mH D/IIA, E, F, G, Class III: Max. external inductivity L_o / Max. external capacitance C_o: / 1.4 ÃµF 2.6 mH
EMC data	Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU (Test requirements for NE 21, IEC 61326-7 also considered as per the APL EMC specifications) Conformance with EMC directives: EN 61000-6-2 EN 61000-4-2 (ESD) Criterion A, Ã±6 kV contact discharge, Ã±8 kV air discharge EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A, Field intensity: 10 V/m EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A, supply lines: Ã±2 kV, signal/data lines: Ã±1 kV EN 61000-6-2 EN 61000-4-5 (surge) Criterion A, Ã±1 kV supply line L-PE; Ã±1 kV supply line N-PE; Ã±1 kV shielded I/O signal lines for metallic enclosure devices EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A, 10 Vrms EN 61000-6-2 IEC 61000-4-16 (common mode disturbances) Criterion A: 10V (10 kHz to 150 kHz) EN 61000-6-4 EN 55011 (emitted interference) Class A Noise immunity: EN 61000-6-2 Noise emission: EN 61000-6-4
