1400693 PHOENIX CONTACT -

SAC-3P-15,0-PUR/BI-1L-Z - Sensor/actuator cable

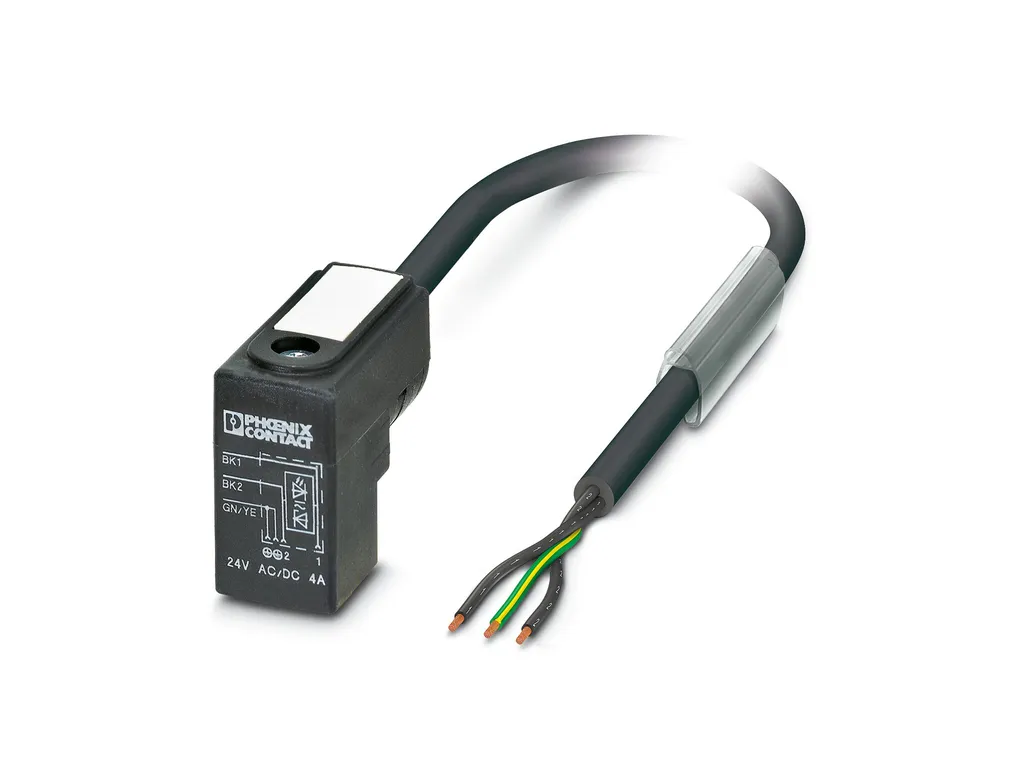

Sensor/actuator cable, 3-position halogen-free, free cable end, on Valve connector BI (11mm), coding: A, with 1 LED, connected with Z diode, cable length: 15 m

Product Code: 1400693 copia - copy

Partner cod.: 1400693 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 3 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: III Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6.6 Contact surface material: Sn
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: free cable end Connection 2 Type: Valve connector BI (11Ãmm) Number of positions: 3 Coding type: A Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)
Cable/line	Cable length: 15 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Cable weight: 30 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 1.5 mm Ã±0.05 mm (Signal line) External cable diameter: 4.5 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: 39 Ã©/km (at 20Ã°C) Insulation resistance: min. 20 MÃ©*km Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 1200 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 22.5 mm Smallest bending radius, movable installation: 45 mm Max. bending cycles: 15000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃVDEÃ0482 According to DINÃENÃ50265-2-1 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: largely oil-resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 85°C (valve plug) -40°C ... 80°C (cable, fixed installation) -15°C ... 80°C (Cable, flexible installation)
