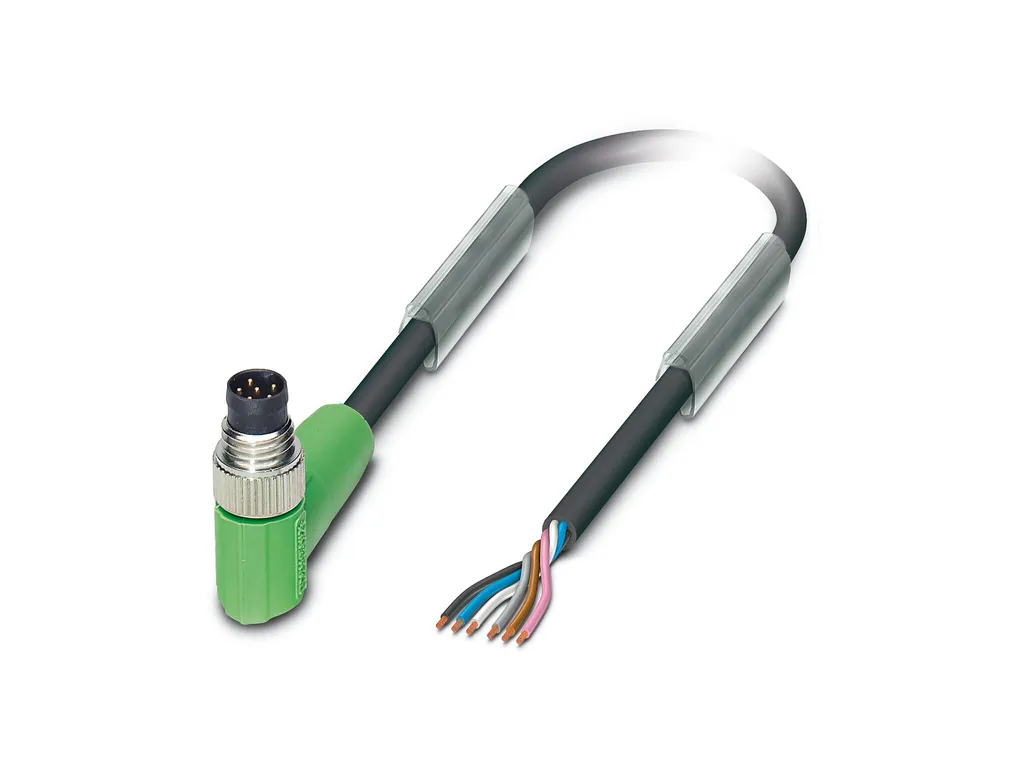

SAC-8P-500,0-94D - Network cable

Network cable, Ethernet CAT5 (1 Gbps), 8-position, shielded, cable length: 500 m
Product Code: 1404863 copia - copy
Partner cod.: 1404863 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Data cable preassembled
Sensor type: Ethernet
Number of positions: 8
Shielded: yes
InterfacesSignal type/category: Ethernet CAT5, 1 Gbps
Electrical propertiesNominal voltage UN: 30 VÂAC
30 VÂDC
Cable/lineCable length: 500 m
EthernetÂ[94D]
Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4126776af2f2f646aa88c4da963a2d68/-S204x204-FJPG
UL AWM Style: 2464 (80°C/300 V)
Number of positions: 8
Shielded: yes
Cable type: EthernetÂ[94D]
Conductor structure: 4x2xAWG26/7, SF/UTP
Signal speed: 0.6 c
Conductor structure signal line: 7x 0.16 mm
AWG signal line: 26
Conductor cross section: 4x 2x 0.14 mm²
Wire diameter incl. insulation: 0.98 mm ±0.05 mm
External cable diameter: 6.4 mm ±0.2Âmm
Outer sheath, material: PVC (reinforced) UV-resistant
External sheath, color: black RALÂ9005
Conductor material: Bare Cu litz wires
Material wire insulation: PP
Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Thickness, outer sheath: 0.8 mm
Twisted pairs: 2 cores to the pair
Overall twist: 4 pairs, twisted
Optical shield covering: 85 %
Max. conductor resistance: < 140 Ω/km
Insulation resistance: ≥ 5 GΩ*km
Wave impedance: 100 Ω ±15ÂΩ (at 4 ... 100 MHz)
Cable capacity: < 56 nF/km
Nominal voltage, cable: 72 VÂDC
300 VÂAC
Test voltage Core/Core: 2500 VÂDC (2 s)
Test voltage Core/Shield: 2500 VÂDC (2 s)
Smallest bending radius, fixed installation: 30 mm
Smallest bending radius, movable installation: 60 mm
Tensile strength: 80 N
Flame resistance: According to VW-1
Resistance to oil: according to IEC 60811-2-1
Other resistance: UV resistant According to ULÂ1581, Section 1200
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
Ambient temperature (installation): 0°C ... 50°C
