| Product properties | Product type: Sensor/actuator cable Number of positions: 4 Application: Food processing industry No. of cable outlets: 1 Shielded: no Coding: A |
| Material specifications | Seal material: FKM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Polypropylene |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.2 Nm (M8 connectors) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M8 Number of positions: 4 Coding type: A |

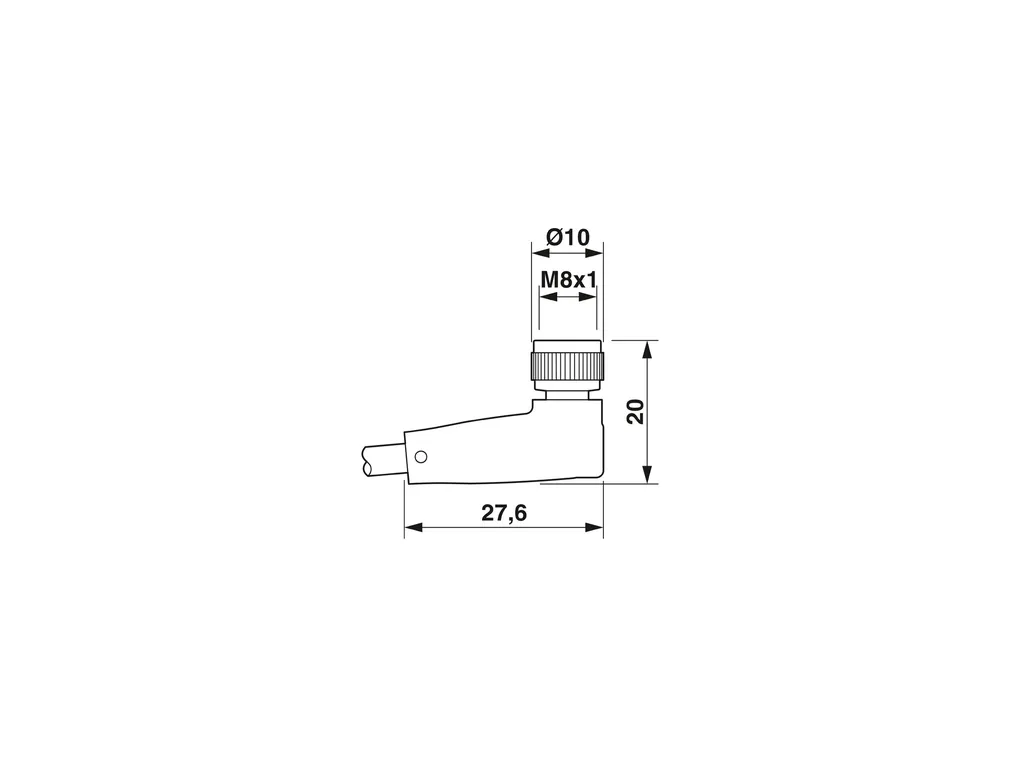

| Cable/line | Cable length: 3 m Halogen-free PP grayÃ[600] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0fd25837db3a6f47aff71ccb65f7616f/-S204x204-FJPG Cable weight: 23 kg/km Number of positions: 4 Shielded: no Cable type: Halogen-free PP grayÃ[600] Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 4x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.02Ãmm (Signal line) External cable diameter: 4.5 mm ñ0.15Ãmm Outer sheath, material: PP-EPDM External sheath, color: gray RAL 7035 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.21 mm (Core insulation) Thickness, outer sheath: approx. 0.8 mm Overall twist: 4 wires, twisted Length of twist, overall twist: 44 mm Max. conductor resistance: 78 é/km (at 20ðC) Insulation resistance: ââ°¥ 1 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 4000000 Torsion force: ñ 270°/m Torsion cycles: ââ°¥ 4000000 Torsional frequency: max. 25 (Torsion cycles/min) Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Other resistance: Resistant to cold bending and cold impacts according to DINÃENÃ60811-1-4 (-40ðC) Special properties: FDA compliant according to FDA 21 CFR 177.2600 highly flexible Flexible cable conduit capable Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -25°C ... 105°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -40°C ... 105°C (Plug / socket) |
| Standards and regulations | Standard designation: M8 connector Material conformance Standards/specifications: IEC 61076-2-104 FDA 21 CFR 177.2600 |
