| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |

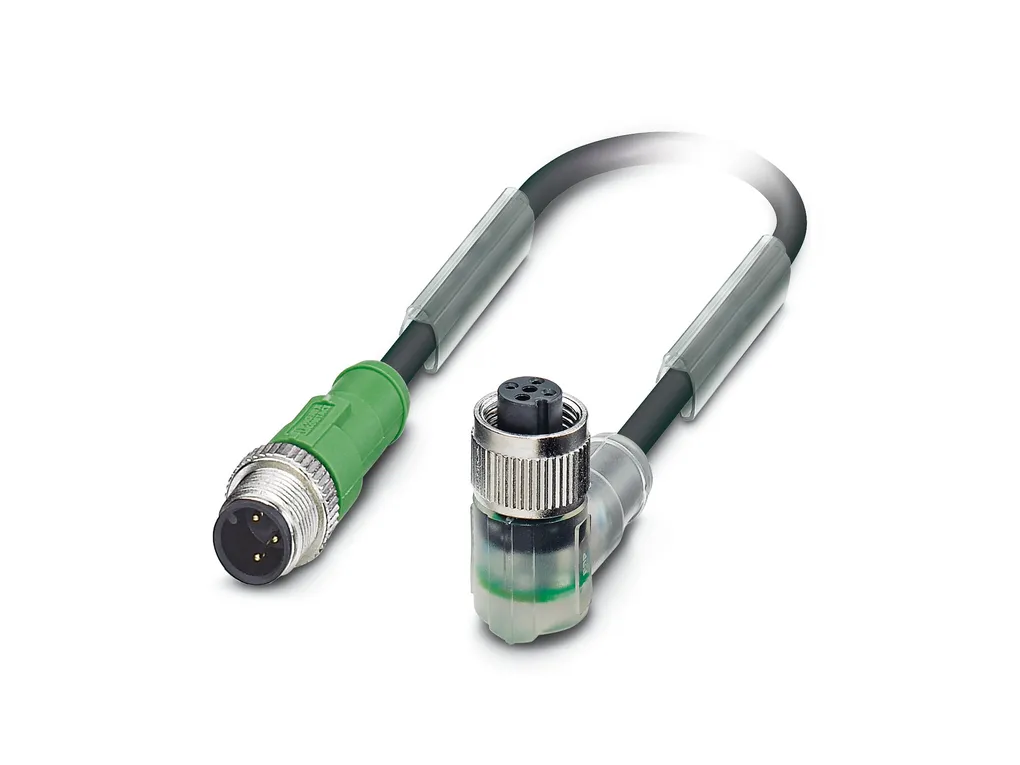

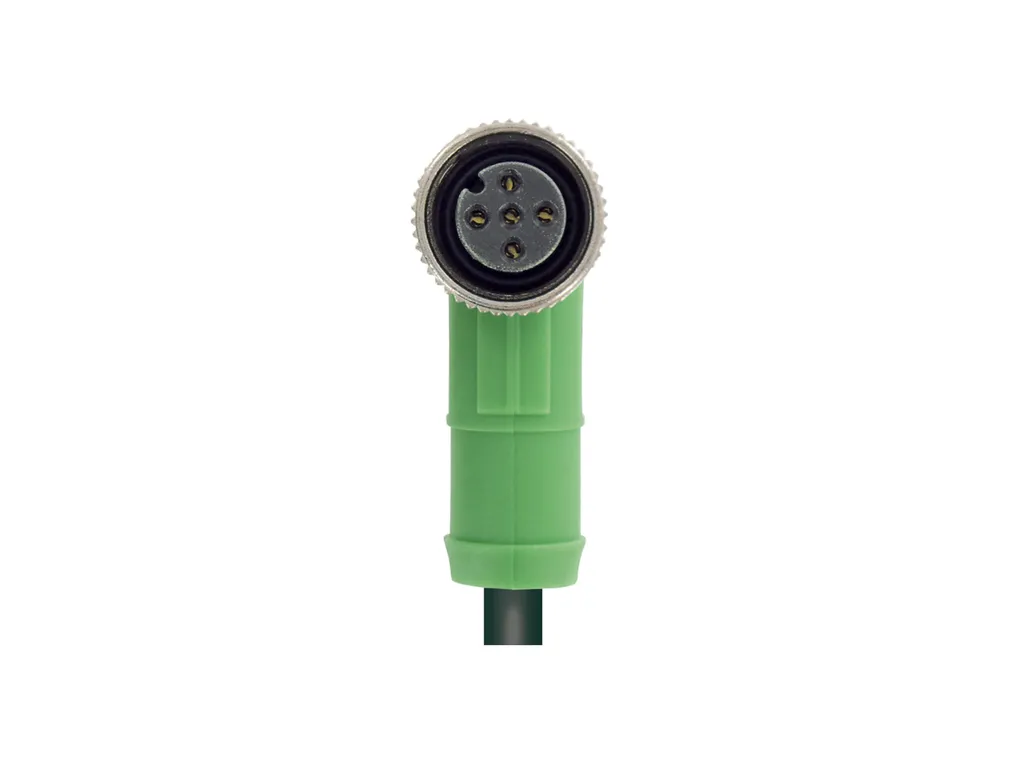

| Connector | Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |
| Cable/line | Cable length: 0.6 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c2c6f5903ea5c04c9ef8b5712c4dc2ca/-S204x204-FJPG Cable weight: 51 kg/km UL AWM Style: 2464 / 1729 (80°C/300 V) Number of positions: 5 Shielded: no Cable type: PVC blackÃ[PVC] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.26 mm ñ0.05 mm External cable diameter: 5 mm ñ0.15Ãmm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black, green-yellow Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) Thickness, outer sheath: ââ°¥ 0.76 mm Overall twist: 5 wires around filler to the core Max. conductor resistance: max. 57 é/km (at 20ðC) Insulation resistance: ââ°¥ 200 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Flame resistance: As per UL-Style 2464 Resistance to oil: in accordance with DIN EN 60811-2-1 Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -10°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
