| Product properties | Product type: Power cable Number of positions: 4 Application: Power supply No. of cable outlets: 1 Shielded: yes Coding: S Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 690 VÃAC Nominal current IN: 12 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Coding type: S (Power) |

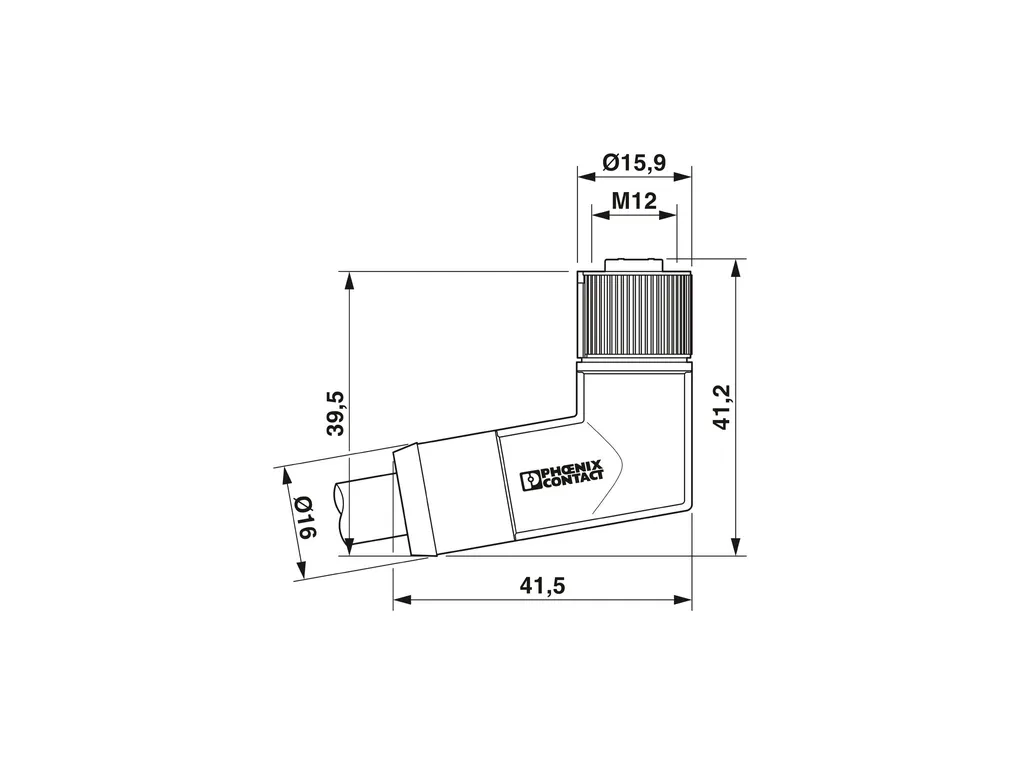

| Cable/line | Cable length: 20 m PUR halogen-free orange shieldedÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ef808ef38b10cb4a830a35021c4c1cdb/-S204x204-FJPG UL AWM Style: 20234 / 10492 (80°C/1000 V) Number of positions: 4 Shielded: yes Cable type: PUR halogen-free orange shieldedÃ[PUR] Conductor cross section: 4x 1.5 mm² Wire diameter incl. insulation: ââ°¤ 2.5 mm External cable diameter: 9.7 mm ñ0.3Ãmm Outer sheath, material: PUR External sheath, color: orange RALÃ2003 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, black 3, green/yellow Thickness, insulation: 0.4 mm Thickness, outer sheath: 1.2 mm Overall twist: 4 wires optimally twisted Max. conductor resistance: ââ°¤ 13.3 é/km (at 20ðC) Insulation resistance: ââ°¥ 10 Mé*km (at 20ðC) Nominal voltage, cable: 1000 VÃAC Test voltage: 4260 VÃAC (5 min.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 7.5 x D Max. bending cycles: 4000000 Torsion force: ñ 25°/m Halogen-free: according to VDE 0282-13 Appendix C Flame resistance: in accordance with ENÃ60332-1-2 in acc. to ULÃ1581 VW1 According to CSA C 22.2 No. 210-05 FT1 Resistance to oil: in accordance with DINÃENÃ60811-2-1 According to DIN EN 50363-10-2 Other resistance: UV resistant Low adhesion Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -30°C ... 90°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 (without preloading, as additional test in accordance with IEC 60529) Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
