1453313 PHOENIX CONTACT -

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 2 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material housing valve plug: PA Contact material: CuSn Contact surface material: Ni/Au Sn Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃDC Nominal current I_N: 4 A Protective circuit: Protective circuit and holding current reduction Valve connector characteristics Fixing screws: M2
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: Plug straight M8 Material: CuSn (Contact) Ni/Au (Contact surface) TPU GF (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Connection 2 Type: Valve connector Festo ZC Material: CuSn (Contact) Sn (Contact surface) PA (Housing)

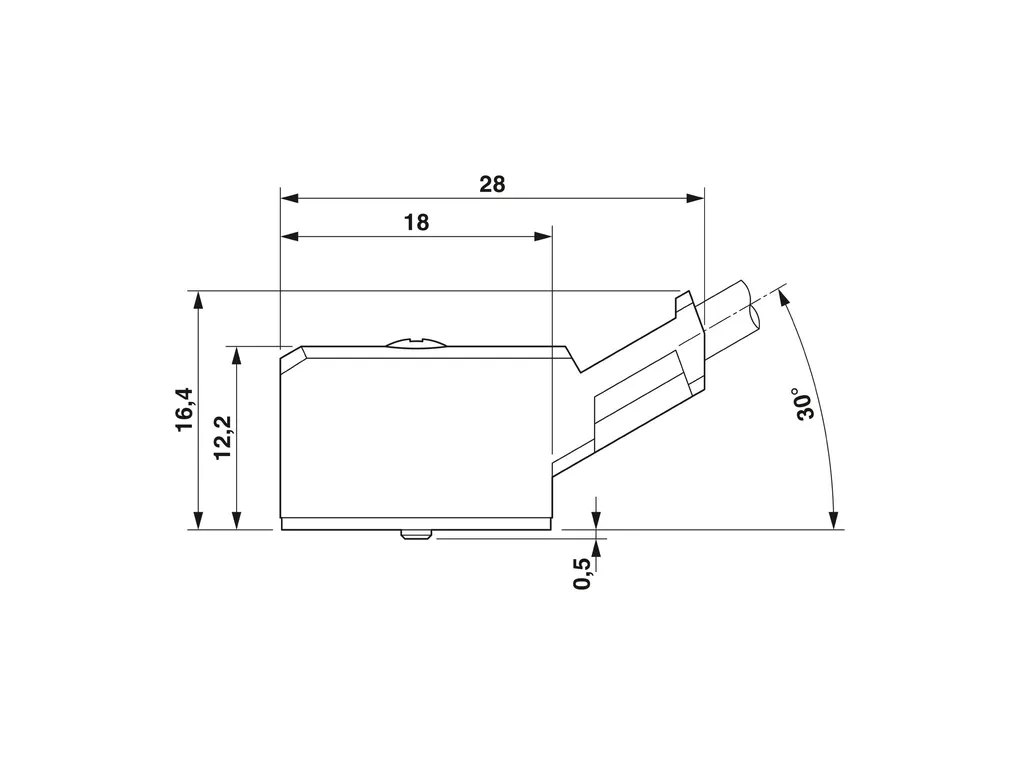

Cable/line	Cable length: 0.3 m PUR grayÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bd1a178df365f342b810def79898d2a5/-S204x204-FJPG Number of positions: 2 Shielded: no Cable type: PUR grayÃ[PUR] AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Signal line) External cable diameter: 3.4 mm Outer sheath, material: PUR External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Single wire, color: black, black Ambient temperature (operation): -10°C ... 50°C (cable, fixed installation) -10°C ... 50°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -10°C ... 50°C (valve plug) -25°C ... 90°C (Plug / socket)
