SAC- 3,0/0,2-116/2XBI-1L-Z - Double valve connector cable

Double valve connector cable, 4-position, free cable end, on Valve connector BI (11mm), with 1 LED, connected with Z diode and Valve connector BI (11mm), with 1 LED, connected with Z diode, cable length: 3 m, valve connector spacing: 0.2 m

Product Code: 1458431 copia - copy

Partner cod.: 1458431 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: no Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6.6 Contact surface material: Sn
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode Valve connector characteristics Fixing screws: M3 x 29 Pulse power: 40 W (at 100ÃÃµs square-wave pulse) Terminal voltage: 70 V (at 2ÃmA constant current) Reverse voltage: 50 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: free cable end Connection 2 Type: Valve connector BI (11Ãmm) Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)

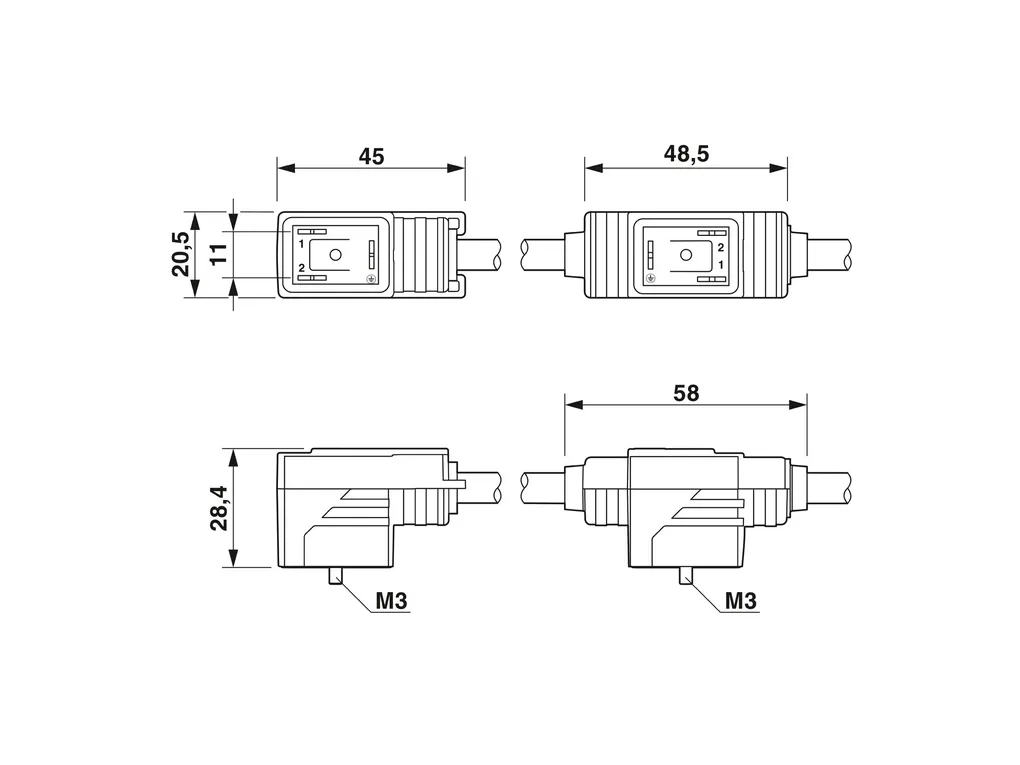

Cable/line	Cable length: 3 m 0.2 m PUR/PVC, 0.75 mm², blackÃ[116] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bdcea8d344c87449b081d2ebb0196c55/-S204x204-FJPG UL AWM Style: 20549 Number of positions: 4 Shielded: no Cable type: PUR/PVC, 0.75 mm², blackÃ[116] Conductor structure signal line: 24x 0.20 mm AWG signal line: 18 Conductor cross section: 4x 0.75 mm² Wire diameter incl. insulation: 1.7 mm Ã±0.05 mm External cable diameter: 6.3 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: black Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, black 3, green/yellow Overall twist: 4 wires, twisted Max. conductor resistance: 26 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 20 MÃ©*km Nominal voltage, cable: 300 V Test voltage: 1200 V Smallest bending radius, fixed installation: 63 mm Flame resistance: according to DINÃVDEÃ0482 According to DINÃENÃ50265-2-1 in acc. with UL FT-2 Ambient temperature (operation): -5°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (valve plug)
