| Product properties | Product type: System cable Data management status Article revision: 00 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40 °C ... 50 °C (fixed installation) -10 °C ... 50 °C (flexible installation) Ambient temperature (storage/transport): -40 °C ... 80 °C Altitude: ââ°¤ 2000 m |

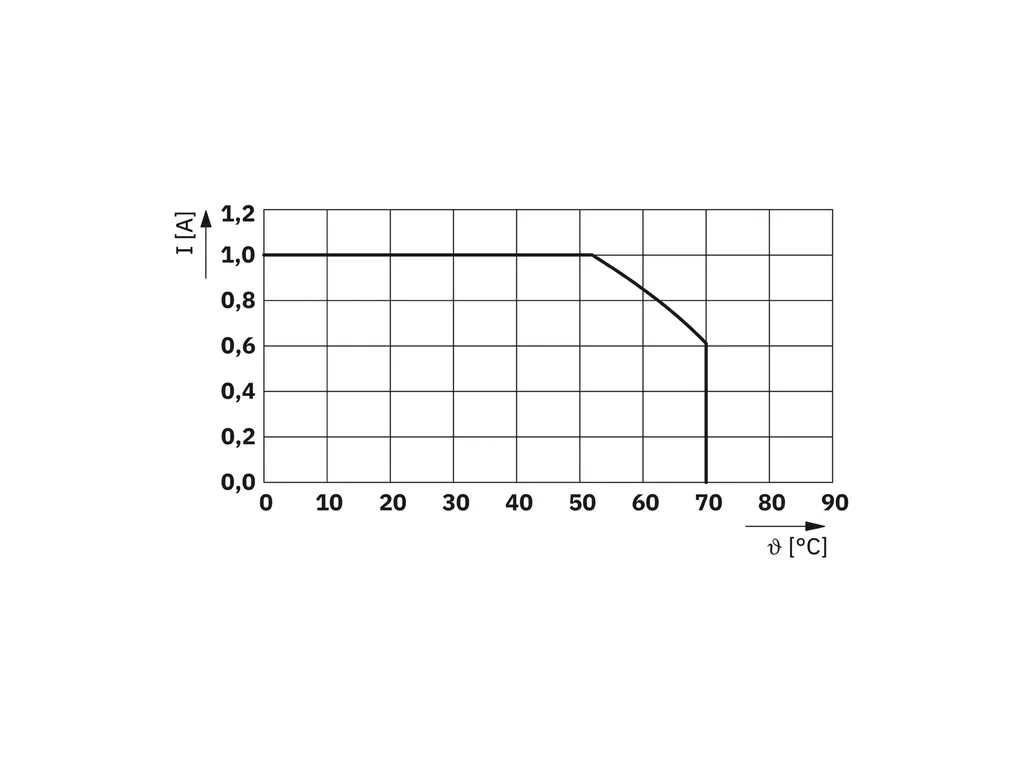

| Electrical properties | Operating voltage (AC): ââ°¤ 30 V AC Operating voltage (DC): ââ°¤ 60 V DC Nominal operating mode: 100% operating factor Current (Per path, 50 °C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70 °C): ââ°¤ 0.6 A (Uncoiled, see derating) Supported controller SIEMENS S7-1500 Suitable I/O card: 6ES7521-1BP00-0AA0 (Sinking mode) 6ES7522-1BP00-0AA0 6ES7522-1BP50-0AA0 6ES7523-1BP50-0AA0 (DI32 (Sinking mode)/DQ32) |
| Cable/line | Cable length: 1 m Number of positions: 14 Shielded: no Conductor type: Assembled, halogen-free round cable Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 14x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03 mm External cable diameter: 5.80 mm ñ0.4 mm Outer sheath, material: halogen-free (type 2) External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20 °C) Insulation resistance: ââ°¥ 20 Mé*km (20 °C) Smallest bending radius, fixed installation: 50 mm Smallest bending radius, movable installation: 93 mm Dynamic load capacity (bending): Max. bending cycles: 5000 (at a radius of ââ°¥ 15x outside diameter) Halogen-free: yes Flame resistance: IEC 60332-1-2 (raw cable) VDE 0842, Part 332-1-2 (raw cable) IEC 60332-3-22 (raw cable) Resistance to oil: can withstand occasional splashes (raw cable) Cable type: Splitting cable for four modules Color code black: IDC/FLK40 (1) = IDC/FLK14-1 (1) IDC/FLK40 (21) = IDC/FLK14-2 (1) IDC/FLK40 (2) = IDC/FLK14-3 (1) IDC/FLK40 (22) = IDC/FLK14-4 (1) brown: IDC/FLK40 (3) = IDC/FLK14-1 (2) IDC/FLK40 (23) = IDC/FLK14-2 (2) IDC/FLK40 (4) = IDC/FLK14-3 (2) IDC/FLK40 (24) = IDC/FLK14-4 (2) red: IDC/FLK40 (5) = IDC/FLK14-1 (3) IDC/FLK40 (25) = IDC/FLK14-2 (3) IDC/FLK40 (6) = IDC/FLK14-3 (3) IDC/FLK40 (26) = IDC/FLK14-4 (3) orange: IDC/FLK40 (7) = IDC/FLK14-1 (4) IDC/FLK40 (27) = IDC/FLK14-2 (4) IDC/FLK40 (8) = IDC/FLK14-3 (4) IDC/FLK40 (28) = IDC/FLK14-4 (4) yellow: IDC/FLK40 (9) = IDC/FLK14-1 (5) IDC/FLK40 (29) = IDC/FLK14-2 (5) IDC/FLK40 (10) = IDC/FLK14-3 (5) IDC/FLK40 (30) = IDC/FLK14-4 (5) green: IDC/FLK40 (11) = IDC/FLK14-1 (6) IDC/FLK40 (31) = IDC/FLK14-2 (6) IDC/FLK40 (12) = IDC/FLK14-3 (6) IDC/FLK40 (32) = IDC/FLK14-4 (6) blue: IDC/FLK40 (13) = IDC/FLK14-1 (7) IDC/FLK40 (33) = IDC/FLK14-2 (7) IDC/FLK40 (14) = IDC/FLK14-3 (7) IDC/FLK40 (34) = IDC/FLK14-4 (7) violet: IDC/FLK40 (15) = IDC/FLK14-1 (8) IDC/FLK40 (35) = IDC/FLK14-2 (8) IDC/FLK40 (16) = IDC/FLK14-3 (8) IDC/FLK40 (36) = IDC/FLK14-4 (8) gray: IDC/FLK40 (19) = IDC/FLK14-1 (9) IDC/FLK40 (39) = IDC/FLK14-2 (9) IDC/FLK40 (20) = IDC/FLK14-3 (9) IDC/FLK40 (40) = IDC/FLK14-4 (9) white: IDC/FLK40 (17) = IDC/FLK14-1 (10) IDC/FLK40 (37) = IDC/FLK14-2 (10) IDC/FLK40 (18) = IDC/FLK14-3 (10) IDC/FLK40 (38) = IDC/FLK14-4 (10) |
| Connection data | Connection 1 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 1 Number of positions: 40 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm Connection 2 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 4 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Notes | Notes on operation: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
