1774292 PHOENIX CONTACT -

MKDSP 10N/ 5-10,16 GYBDNZ02648 - PCB terminal block

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: MKDSP 10N, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: gray, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Product Code: 1774292 copia - copy

Partner cod.: 1774292 copia - copy

PHOENIX CONTACT

Product properties	Type: PC terminal block can be aligned Product line: COMBICON Terminals L Product type: Printed circuit board terminal Product family: MKDSP 10N Number of positions: 5 Pitch: 10.16 mm Number of connections: 5 Number of rows: 1 Number of potentials: 5 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 76 A Nominal voltage U_N: 1000 V Degree of pollution: 3 Rated voltage (III/3): 690 V Rated surge voltage (III/3): 8 kV Rated voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Type: PC terminal block can be aligned Nominal cross section: 16 mm² Conductor connection Connection method: Screw connection with tension sleeve Conductor cross section rigid: 0.5 mm² ... 16 mm² Conductor cross section flexible: 0.5 mm² ... 16 mm² Conductor cross section AWG: 20 ... 6 Conductor cross section flexible, with ferrule without plastic sleeve: 0.5 mm² ... 16 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.5 mm² ... 16 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 6 mm² Stripping length: 10 mm Tightening torque: 1.2 Nm ... 1.5 Nm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Drive form screw head: SlottedÃ(L) Connection method: Screw connection with tension sleeve
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (5 - 7 Ãµm Sn) Metal surface terminal point (middle layer): Nickel (2 - 3 Ãµm Ni) Metal surface soldering area (top layer): Tin (5 - 7 Ãµm Sn) Metal surface soldering area (middle layer): Nickel (2 - 3 Ãµm Ni) Material data - housing Color (Housing): gray (7042) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 10.16 mm Width [w]: 50.8 mm Height [h]: 34.3 mm Length [l]: 18.4 mm Installed height: 29.3 mm Solder pin length [P]: 5 mm Pin dimensions: 1 x 0.9 mm PCB design Hole diameter: 1.5 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60998-2-1:2002-12 Result: Test passed Pull-out test Specification: IEC 60998-2-1:2002-12 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.5 mm² / solid / > 20 N 0.5 mm² / flexible / > 20 N 16 mm² / solid / > 100 N 16 mm² / flexible / > 100 N Torque test Specification: IEC 60998-2-1:2002-12
Electrical tests	Temperature-rise test Specification: IEC 60998-1:2002-12 Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤Ã45ÃK Insulation resistance Specification: IEC 60998-1:2002-12 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 690 V Rated surge voltage (III/3): 8 kV minimum clearance value - non-homogenous field (III/3): 8 mm minimum creepage distance (III/3): 8 mm Rated insulation voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV minimum clearance value - non-homogenous field (III/2): 8 mm minimum creepage distance (III/2): 8 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm

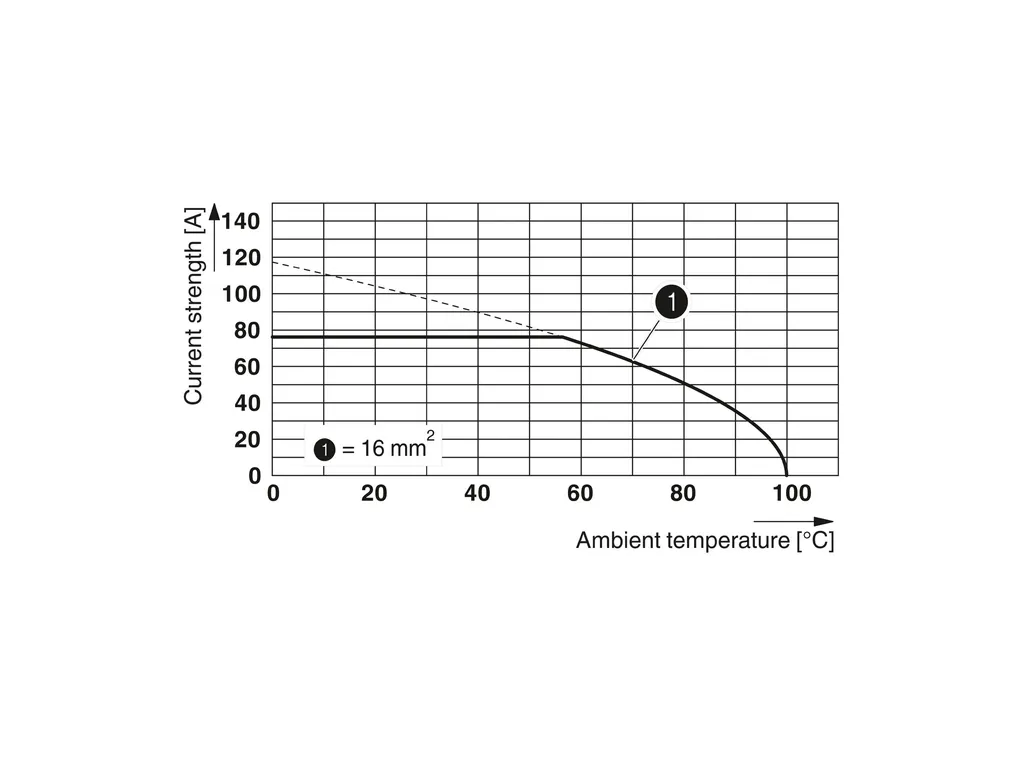

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 5g (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60998-1:2002-12 Temperature: 850°C Time of exposure: 5 s Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
