SPT 2,5/ 5-H-5,0 - PCB terminal block

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: SPT 2,5/..-H, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Product Code: 1991008 copia - copy

Partner cod.: 1991008 copia - copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals M Product type: Printed circuit board terminal Product family: SPT 2,5/..-H Number of positions: 5 Pitch: 5 mm Number of connections: 5 Number of rows: 1 Number of potentials: 5 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 24 A Nominal voltage U_N: 400 V Degree of pollution: 3 Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 400 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV
Connection data	Connection technology Nominal cross section: 2.5 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Stripping length: 10 mm Specifications for ferrules without insulating collar recommended crimping tool: 1212034 CRIMPFOX 6 ferrules without insulating collar, according to DINÃ46228Ã¢Ã¢¬Ã¢1: Cross section:Ã0.25 mm²; Length: 7 mm Specifications for ferrules with insulating collar recommended crimping tool: 1212034 CRIMPFOX 6 ferrules with insulating collar, according to DINÃ46228Ã¢Ã¢¬Ã¢4: Cross section:Ã0.25 mm²; Length: 8 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Push-in spring connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (4 - 8 Ãµm Sn) Metal surface soldering area (top layer): Tin (4 - 8 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C

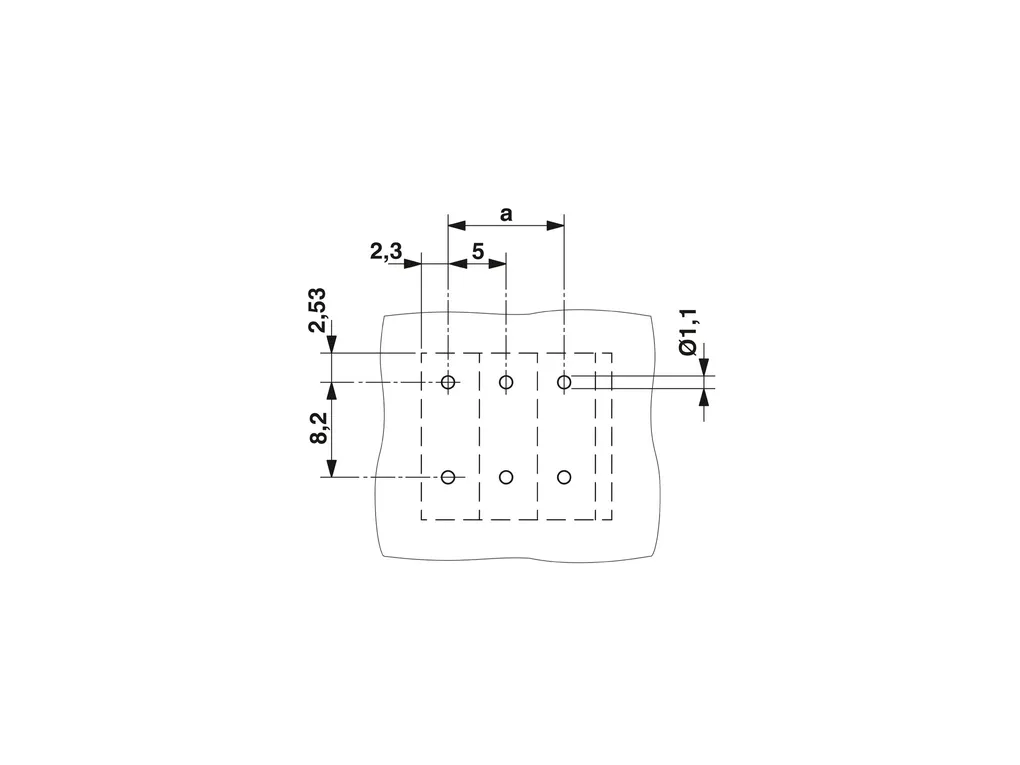

Dimensions	Pitch: 5 mm Width [w]: 26.4 mm Height [h]: 16 mm Length [l]: 14.4 mm Installed height: 13.5 mm Solder pin length [P]: 2.5 mm PCB design Pin spacing: 5 mm Hole diameter: 1.2 mm
Electrical tests	Air clearances and creepage distances \| 1. Insulation coordination Application: without pitch spacer Specification: IEC 60947-7-4:2019-01 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 400 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 3 mm Rated insulation voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm Air clearances and creepage distances \| 2. Insulation coordination Application: with RZ-SPTÃ2,5-2,5 Specification: IEC 60947-7-4:2019-01 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 400 V Rated surge voltage (III/3): 6 kV minimum clearance value - non-homogenous field (III/3): 5.5 mm minimum creepage distance (III/3): 5.5 mm Rated insulation voltage (III/2): 630 V Rated surge voltage (III/2): 6 kV minimum clearance value - non-homogenous field (III/2): 5.5 mm minimum creepage distance (III/2): 5.5 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm Air clearances and creepage distances \| 3. Insulation coordination Application: with RZ-SPTÃ2,5-5,0 Specification: IEC 60947-7-4:2019-01 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 630 V Rated surge voltage (III/3): 8 kV minimum clearance value - non-homogenous field (III/3): 8 mm minimum creepage distance (III/3): 8 mm Rated insulation voltage (III/2): 800 V Rated surge voltage (III/2): 8 kV minimum clearance value - non-homogenous field (III/2): 8 mm minimum creepage distance (III/2): 8 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 8 kV minimum clearance value - non-homogenous field (II/2): 8 mm minimum creepage distance (II/2): 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
