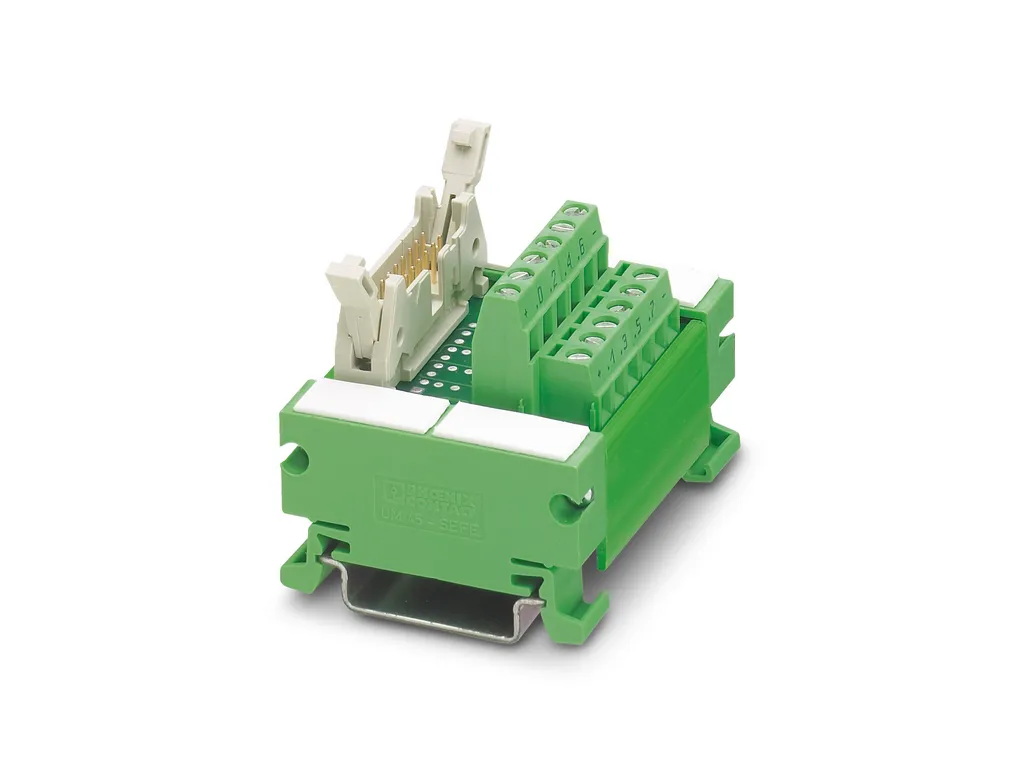

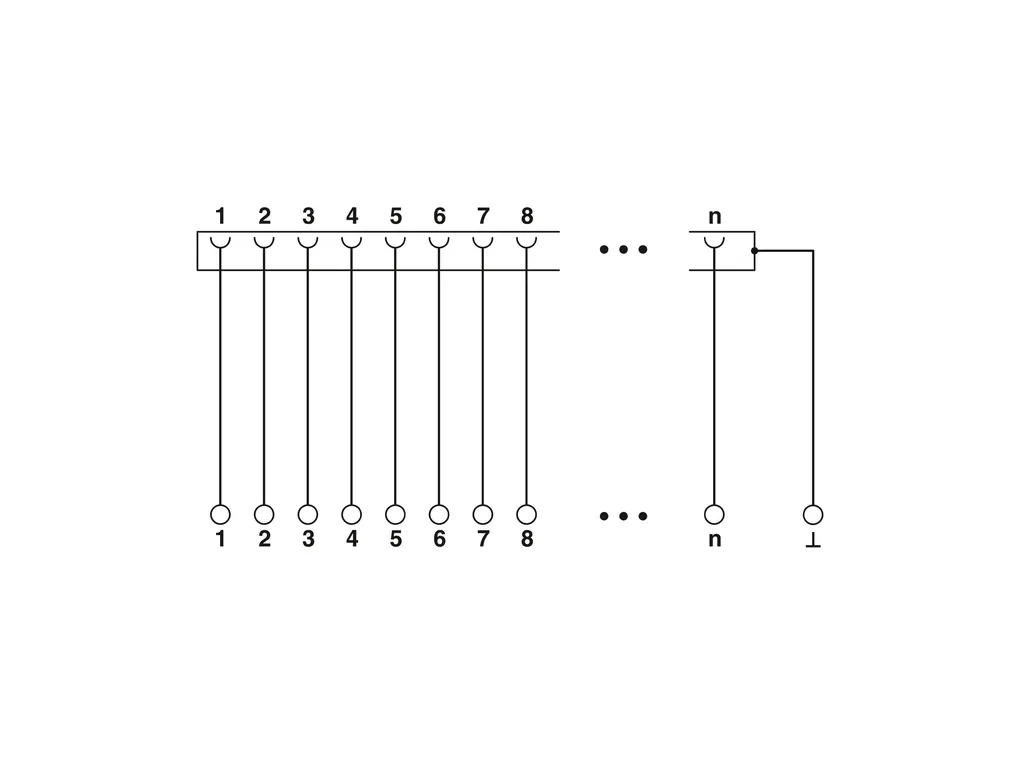

2293611 PHOENIX CONTACT -

Product properties	Product type: Interface module Number of positions: 9 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Operating voltage (AC): Ã¢Ã¢°¤ 30 VÃAC Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Current (per branch): Ã¢Ã¢°¤ 2.5 A Current (Total current): Ã¢Ã¢°¤ 22.5 A Air clearances and creepage distances Rated insulation voltage: 125 V Rated surge voltage: 1.2 kV (1.2/50 Ã¼s)
Connection data	ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60807-2 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 9 Insertion/withdrawal cycles: > 500 Pitch: 2.74 mm ConnectionÃ2 (field level) Connection method: Spring-cage connection Stripping length: 8 mm Number of positions: 10 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 14
Signaling	Status display present: No
Dimensions	Item dimensions Width: 53 mm Height: 45 mm Depth: 49.7 mm
Material specifications	Housing insulation material: PVC
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP20 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
