2294296 PHOENIX CONTACT -

Product properties	Product type: Interface module Product family: VARIOFACE No. of channels: 16 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 16 (variable) Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Current (per branch): Ã¢Ã¢°¤ 1 A Current (Voltage supply per byte): Ã¢Ã¢°¤ 2 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 Ã¼s) Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM Suitable I/O card: DDI 353 DDI 841 DDI 853 DAI 340 DAI 353 DAI 440 DAI 453 DDO 353 DDM 390 ACI 030 ACI 040 ATI 030 ARI 030 AVI 030 ACO 020 ACO 130 AVO 020 EHC 105 EHC 202

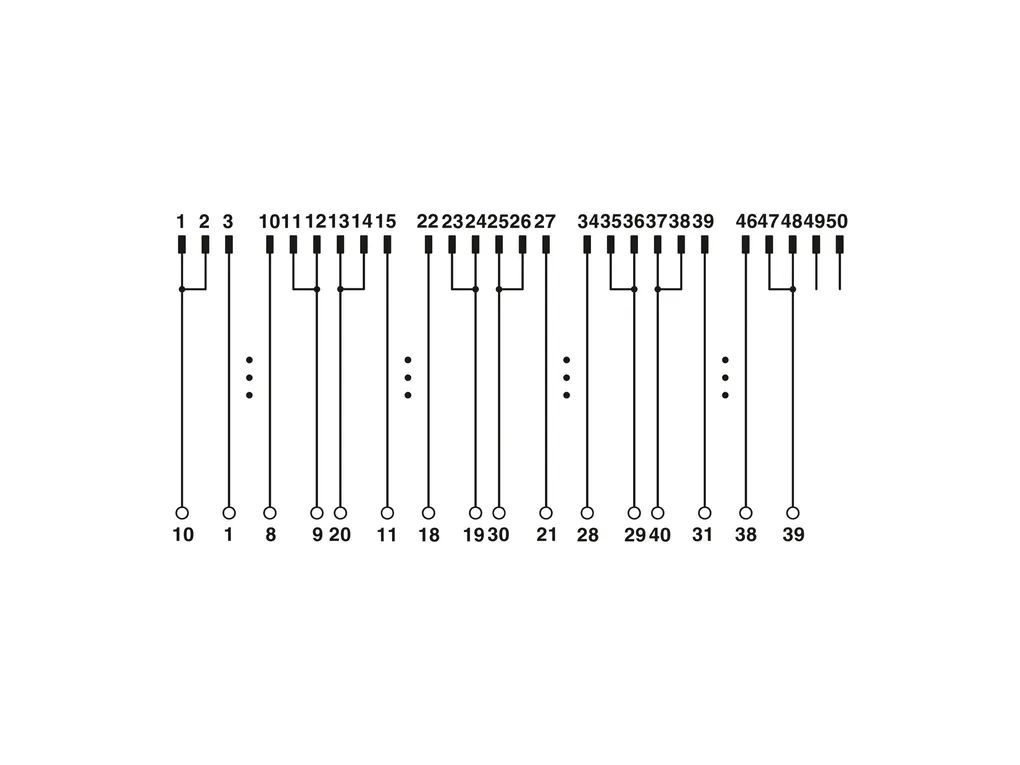

Connection data	ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 50 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 40 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Item dimensions Width: 112 mm Height: 89.6 mm Depth: 65.9 mm
Material specifications	Housing insulation material: PVC
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
