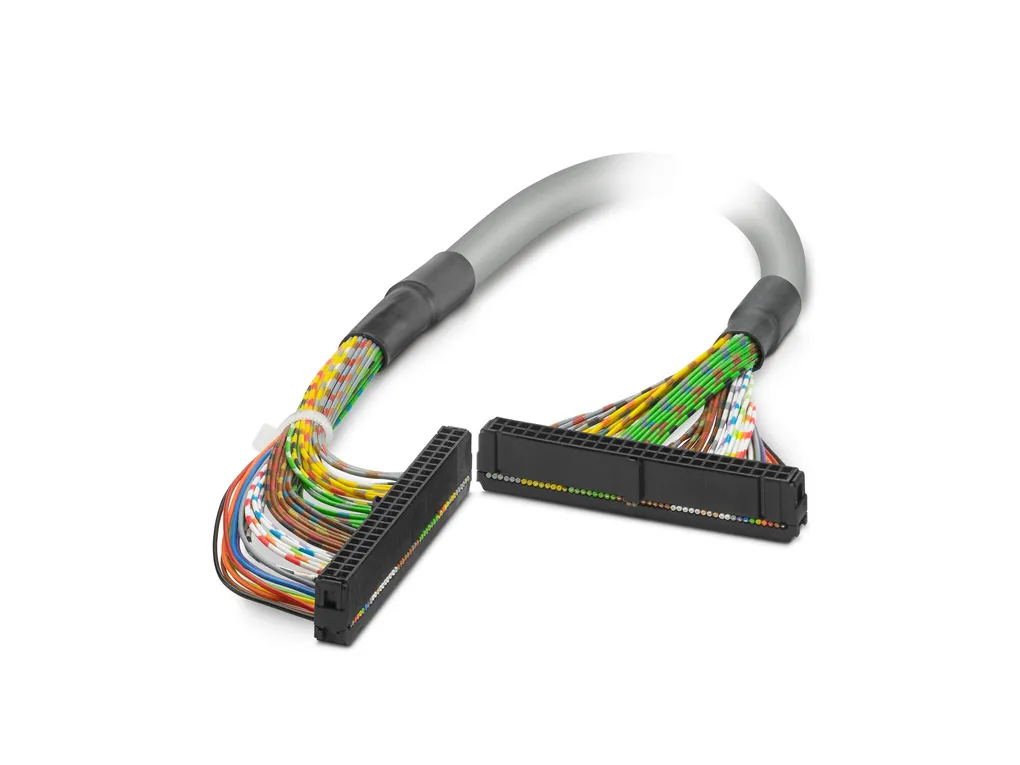

| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |

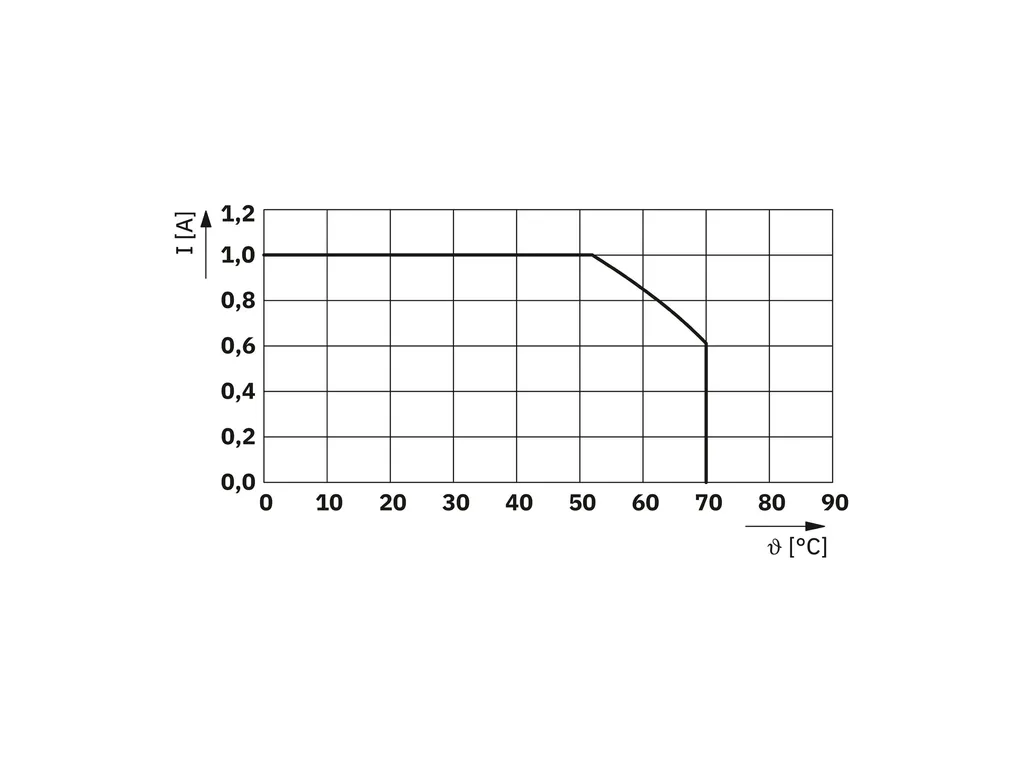

| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path, 50°C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70°C): ââ°¤ 0.6 A (Uncoiled, see derating) |
| Cable/line | Cable length: 6 m 34X0.14Ã[PVC] UL AWM Style: 2464/1061 Number of positions: 34 Shielded: no Cable type: 34X0.14Ã[PVC] Conductor type: Round cable set Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 34x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03Ãmm External cable diameter: 8.7 mm ñ0.3Ãmm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20ðC) Insulation resistance: ââ°¥ 20 Mé*km (20ðC) Smallest bending radius, fixed installation: 72 mm Smallest bending radius, movable installation: 135 mm Max. bending cycles: 5000 (at a radius of ââ°¥ 15x outside diameter) Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code IDC/FLK34 (1): IDC/FLK34 (1) = black IDC/FLK34 (2): IDC/FLK34 (2) = brown IDC/FLK34 (3): IDC/FLK34 (3) = red IDC/FLK34 (4): IDC/FLK34 (4) = orange IDC/FLK34 (5): IDC/FLK34 (5) = yellow IDC/FLK34 (6): IDC/FLK34 (6) = green IDC/FLK34 (7): IDC/FLK34 (7) = blue IDC/FLK34 (8): IDC/FLK34 (8) = violet IDC/FLK34 (9): IDC/FLK34 (9) = gray IDC/FLK34 (10): IDC/FLK34 (10) = white IDC/FLK34 (11): IDC/FLK34 (11) = white-black IDC/FLK34 (12): IDC/FLK34 (12) = white-brown IDC/FLK34 (13): IDC/FLK34 (13) = white-red IDC/FLK34 (14): IDC/FLK34 (14) = white-orange IDC/FLK34 (15): IDC/FLK34 (15) = white-yellow IDC/FLK34 (16): IDC/FLK34 (16) = white-green IDC/FLK34 (17): IDC/FLK34 (17) = white-blue IDC/FLK34 (18): IDC/FLK34 (18) = white-violet IDC/FLK34 (19): IDC/FLK34 (19) = white-gray IDC/FLK34 (20): IDC/FLK34 (20) = brown-black IDC/FLK34 (21): IDC/FLK34 (21) = brown-red IDC/FLK34 (22): IDC/FLK34 (22) = brown-orange IDC/FLK34 (23): IDC/FLK34 (23) = brown-yellow IDC/FLK34 (24): IDC/FLK34 (24) = brown-green IDC/FLK34 (25): IDC/FLK34 (25) = brown-blue IDC/FLK34 (26): IDC/FLK34 (26) = brown-violet IDC/FLK34 (27): IDC/FLK34 (27) = brown-gray IDC/FLK34 (28): IDC/FLK34 (28) = brown-white IDC/FLK34 (29): IDC/FLK34 (29) = green-black IDC/FLK34 (30): IDC/FLK34 (30) = green-brown IDC/FLK34 (31): IDC/FLK34 (31) = green-red IDC/FLK34 (32): IDC/FLK34 (32) = green-orange IDC/FLK34 (33): IDC/FLK34 (33) = green-blue IDC/FLK34 (34): IDC/FLK34 (34) = green-violet |
| Connection data | Connection 1 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 1 Number of positions: 34 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm Connection 2 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 1 Number of positions: 34 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
