| Notes | General: The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e.Ãg., partition plates). Ensure that the supply voltage of the device has a common reference potential. For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |

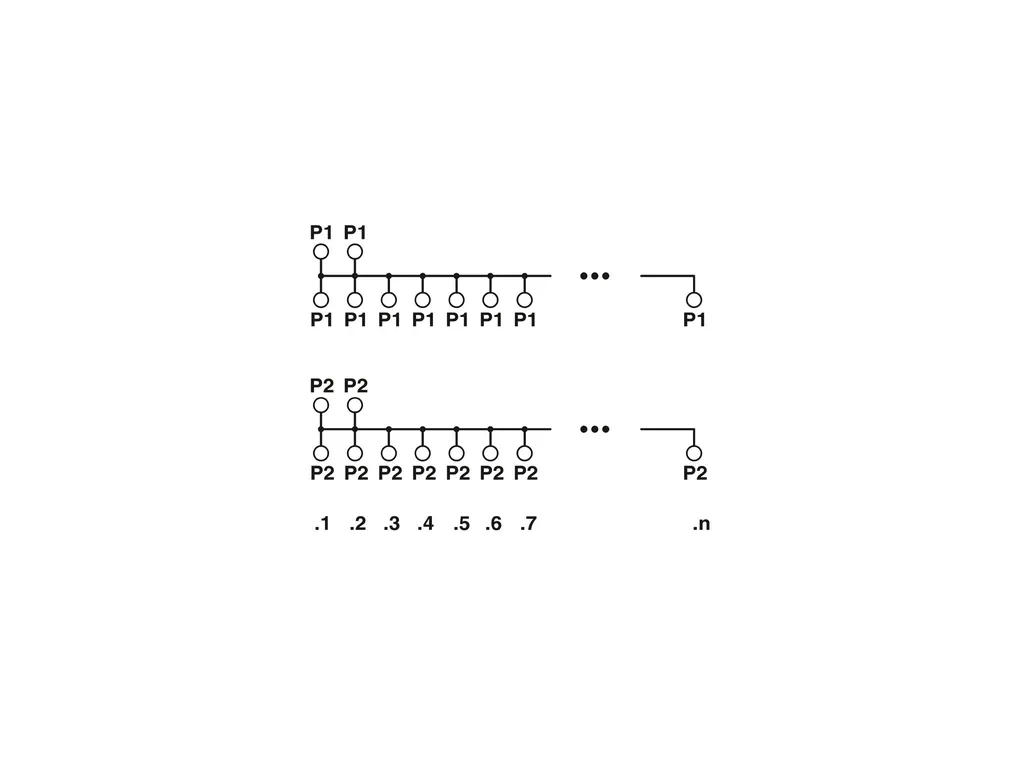

| Product properties | Product type: Potential distributor Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristicsââ¬Ã¢¹ Insulation: Functional insulation Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 250 V AC/DC Max. current carrying capacity per branch: 17 A Max. total current of all branches: 32 A (per potential) Rated insulation voltage: 260 V Rated surge voltage: 2.3 kV |
| Connection data | Service Entrance Connection method: Spring-cage connection Stripping length: 8 mm Number of connections: 2 Conductor cross section rigid: 0.2 mm² ... 6 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 10 Distribution Connection method: Spring-cage connection Stripping length: 8 mm Number of connections: 16 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 45 mm Height: 77 mm Depth: 51.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: ENÃ60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
