2302861 PHOENIX CONTACT -

FLKM 14-PA-AB/1756/EXTC - Front adapter

VARIOFACE front adapters, for Allen Bradley ControlLogix and Honeywell PlantScape, max. 2 x 8 channels can be connected.
The front adapters are pushed into the high 1756-TBE hoods (not supplied as standard).

Product Code: 2302861 copia - copy

Partner cod.: 2302861 copia - copy

PHOENIX CONTACT

Product properties	Product type: Front adapter Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Operating voltage (AC): Ã¢Ã¢°¤ 30 VÃAC Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (per branch): Ã¢Ã¢°¤ 1 A Current (Voltage supply via screw connection): Ã¢Ã¢°¤ 8 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 Ã¼s) Supported controller ALLEN-BRADLEY ControlLogix Suitable I/O card: 1756-IA8D 1756-OB16E 1756-IF6I 1756-IR6I 1756-IT6I 1756-OF4 1756-OF6CI 1756-OF6VI 1756-OF8 1756-PLS 1756-IF6CIS 1756-OF8H Supported controller HONEYWELL Experion PKS C200 Suitable I/O card: TC-IDX 081 TC-IXR 061 TC-IAH 061 TC-OAH 061 TC-OAV 061 TC-OAV 081 TC-IXL 061

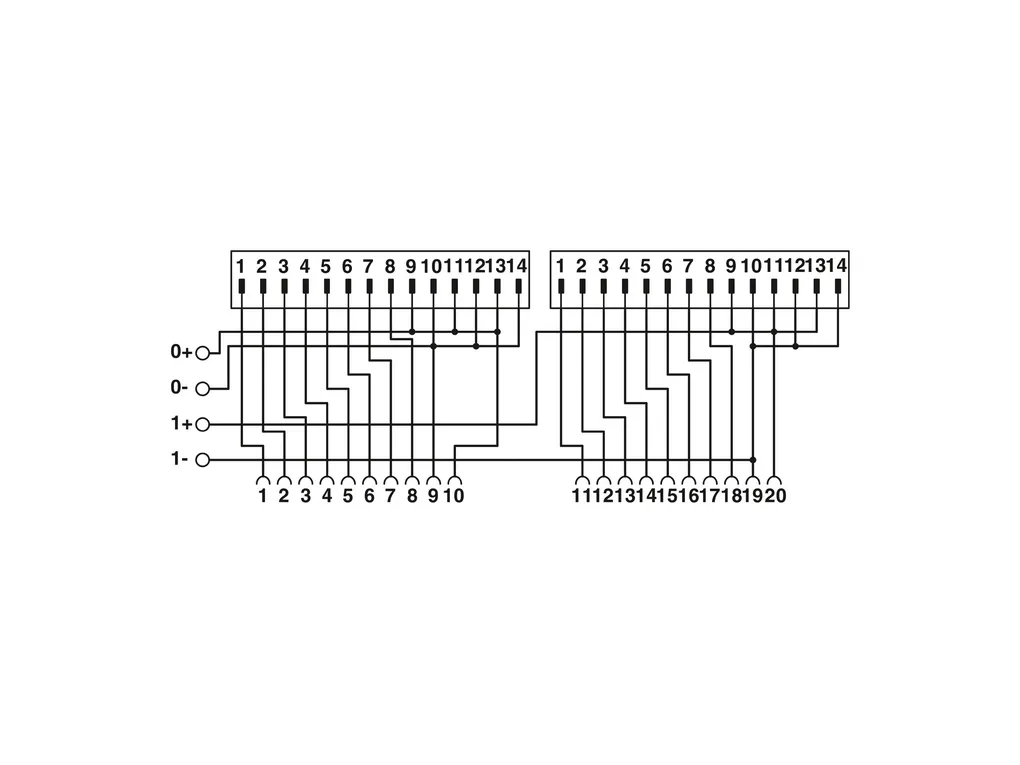

Connection data	ConnectionÃ1 (control level) Connection method: Plug-in connection Number of positions: 20 ConnectionÃ2 (field level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 2 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ3 (supply) Connection method: Screw connection Number of positions: 4 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Pitch: 3.81 mm
Dimensions	Item dimensions Width: 104.9 mm Height: 33 mm Depth: 40.84 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: Plug-in mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
