2305716 PHOENIX CONTACT -

CABLE-D50SUB/S/S/300/KONFEK/S - Cable

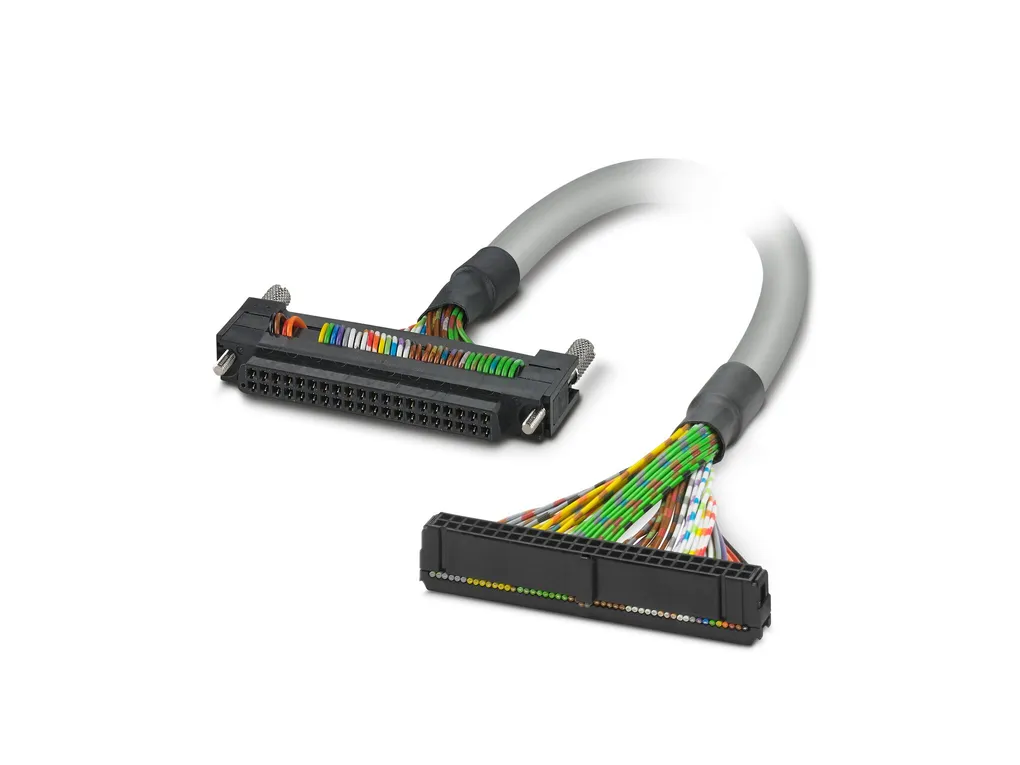

Assembled shielded round cable; connection 1: D-SUB pin strip (1x 50-position); connection 2: D-SUB pin strip (1x 50-position); cable length: 3 m

Product Code: 2305716 copia - copy

Partner cod.: 2305716 copia - copy

PHOENIX CONTACT

Product properties	Product type: System cable
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m

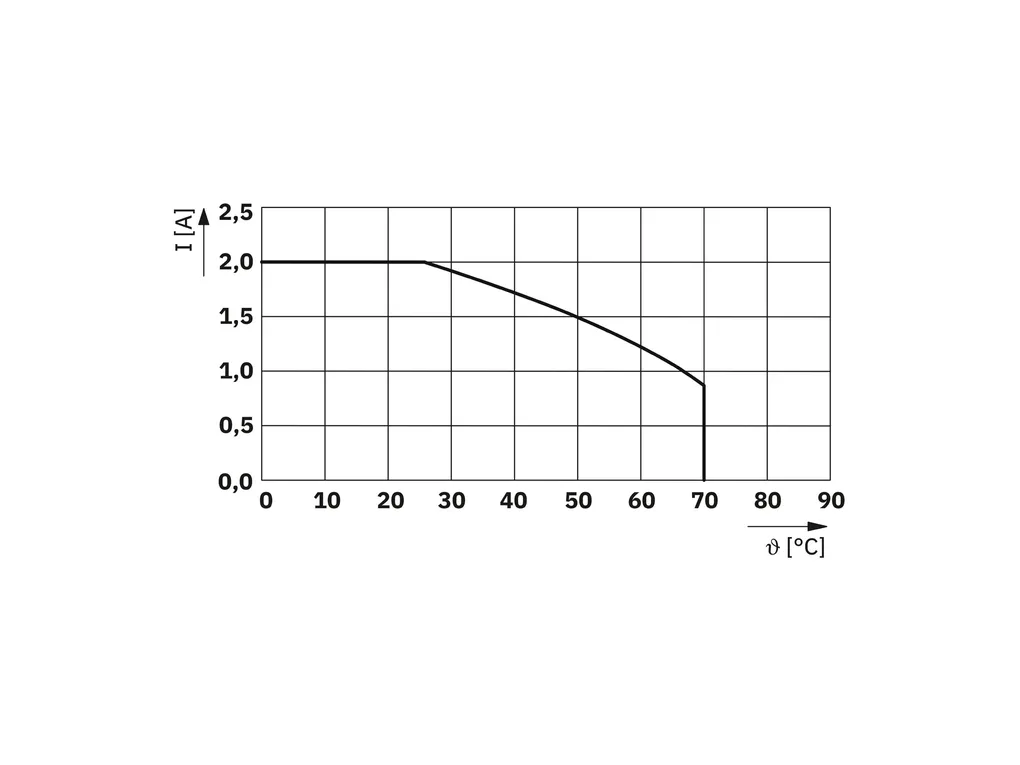

Electrical properties	Operating voltage (AC): Ã¢Ã¢°¤ 30 VÃAC Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path): Ã¢Ã¢°¤ 2 A (Uncoiled, see derating)
Cable/line	Cable length: 3 m 50X0.25Ã[PVC] Number of positions: 50 Shielded: yes Cable type: 50X0.25Ã[PVC] Conductor type: Assembled shielded round cable Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Conductor cross section: 50x 0.25 mm² Wire diameter incl. insulation: 1.2 mm Ã±0.05 mm External cable diameter: 12.4 mm Ã±0.5 mm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Bare Cu litz wires Cable resistance: Ã¢Ã¢°¤ 80 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 20 MÃ©*km (at 20Ã°C) Smallest bending radius, fixed installation: 106 mm Smallest bending radius, movable installation: 200 mm Max. bending cycles: (at a radius of Ã¢Ã¢°¥ 15x outside diameter) Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code D-SUB50 (1): D-SUB50 (1) = white D-SUB50 (2): D-SUB50 (2) = brown D-SUB50 (3): D-SUB50 (3) = green D-SUB50 (4): D-SUB50 (4) = yellow D-SUB50 (5): D-SUB50 (5) = gray D-SUB50 (6): D-SUB50 (6) = pink D-SUB50 (7): D-SUB50 (7) = blue D-SUB50 (8): D-SUB50 (8) = red D-SUB50 (9): D-SUB50 (9) = black D-SUB50 (10): D-SUB50 (10) = violet D-SUB50 (11): D-SUB50 (11) = gray-pink D-SUB50 (12): D-SUB50 (12) = red-blue D-SUB50 (13): D-SUB50 (13) = white-green D-SUB50 (14): D-SUB50 (14) = brown-green D-SUB50 (15): D-SUB50 (15) = white-yellow D-SUB50 (16): D-SUB50 (16) = yellow-brown D-SUB50 (17): D-SUB50 (17) = white-gray D-SUB50 (18): D-SUB50 (18) = gray-brown D-SUB50 (19): D-SUB50 (19) = white-pink D-SUB50 (20): D-SUB50 (20) = pink-brown D-SUB50 (21): D-SUB50 (21) = white-blue D-SUB50 (22): D-SUB50 (22) = brown-blue D-SUB50 (23): D-SUB50 (23) = white-red D-SUB50 (24): D-SUB50 (24) = brown-red D-SUB50 (25): D-SUB50 (25) = white-black D-SUB50 (26): D-SUB50 (26) = brown-black D-SUB50 (27): D-SUB50 (27) = gray-green D-SUB50 (28): D-SUB50 (28) = yellow-gray D-SUB50 (29): D-SUB50 (29) = pink-green D-SUB50 (30): D-SUB50 (30) = yellow-pink D-SUB50 (31): D-SUB50 (31) = green-blue D-SUB50 (32): D-SUB50 (32) = yellow-blue D-SUB50 (33): D-SUB50 (33) = green-red D-SUB50 (34): D-SUB50 (34) = yellow-red D-SUB50 (35): D-SUB50 (35) = green-black D-SUB50 (36): D-SUB50 (36) = yellow-black D-SUB50 (37): D-SUB50 (37) = gray-blue D-SUB50 (38): D-SUB50 (38) = pink-blue D-SUB50 (39): D-SUB50 (39) = gray-red D-SUB50 (40): D-SUB50 (40) = pink-red D-SUB50 (41): D-SUB50 (41) = gray-black D-SUB50 (42): D-SUB50 (42) = pink-black D-SUB50 (43): D-SUB50 (43) = blue-black D-SUB50 (44): D-SUB50 (44) = red-black D-SUB50 (45): D-SUB50 (45) = white-brown D-SUB50 (46): D-SUB50 (46) = yellow-green D-SUB50 (47): D-SUB50 (47) = gray-pink D-SUB50 (48): D-SUB50 (48) = blue-red D-SUB50 (49): D-SUB50 (49) = white-green D-SUB50 (50): D-SUB50 (50) = green-brown
Connection data	Connection 1 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 50 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.77 mm Connection 2 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 50 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.77 mm
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
