2315230 PHOENIX CONTACT -

VIP-2/SC/2FLK14 (1-20) /S7 - Passive module

VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific labeling (1 - 20), with screw connection, module width: 80.6 mm

Product Code: 2315230 copia - copy

Partner cod.: 2315230 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: VARIOFACE Professional Number of positions: 14 No. of channels: 2 4 6 8 16 Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 24 6 8 16 ((with analog variable)) Max. permissible operating voltage: 25 VÃAC 60 VÃDC Max. current carrying capacity per branch: 1 A Rated surge voltage: 0.6 kV Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: 6ES7321-1BH02-0AA0 6ES7321-1BH10-0AA0 6ES7321-1BH50-0AA0 6ES7321-1BL00-0AA0 6ES7321-7BH01-0AB0 6ES7322-1BH01-0AA0 6ES7322-1BH10-0AA0 6ES7322-1BH10-0AA0 6ES7322-1BL00-0AA0 6ES7322-8BH01-0AB0 6ES7322-8BH10-0AB0 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0 6ES7331-1KF01-0AB0 6ES7331-1KF02-0AB0 6ES7331-7HF01-0AB0 6ES7331-7KB02-0AB0 6ES7331-7KF02-0AB0 6ES7331-7NF00-0AB0 6ES7331-7NF10-0AB0 6ES7331-7PF01-0AB0 6ES7331-7PF11-0AB0 6ES7331-7TF01-0AB0 6ES7332-5HB01-0AB0 6ES7332-5HD01-0AB0 6ES7332-7ND02-0AB0 6ES7332-8TF01-0AB0 6ES7334-0CE01-0AA0 6ES7334-0KE00-0AB0 6ES7335-7HG01-0AB0 6ES7338-4BC01-0AB0 6ES7350-1AH03-0AE0 6ES7350-2AH01-0AE0 6ES7351-1AH01-0AE0 6ES7352-1AH02-0AE0 6ES7353-1AH01-0AE0 6ES7354-1AH01-0AE0 6ES7355-0VH10-0AE0 6ES7355-1VH10-0AE0 6ES7357-4AH01-0AE0 CPU 313C CPU 313C-2DP CPU 313C-2PtP CPU 314C-2DP CPU 314C-2PtP

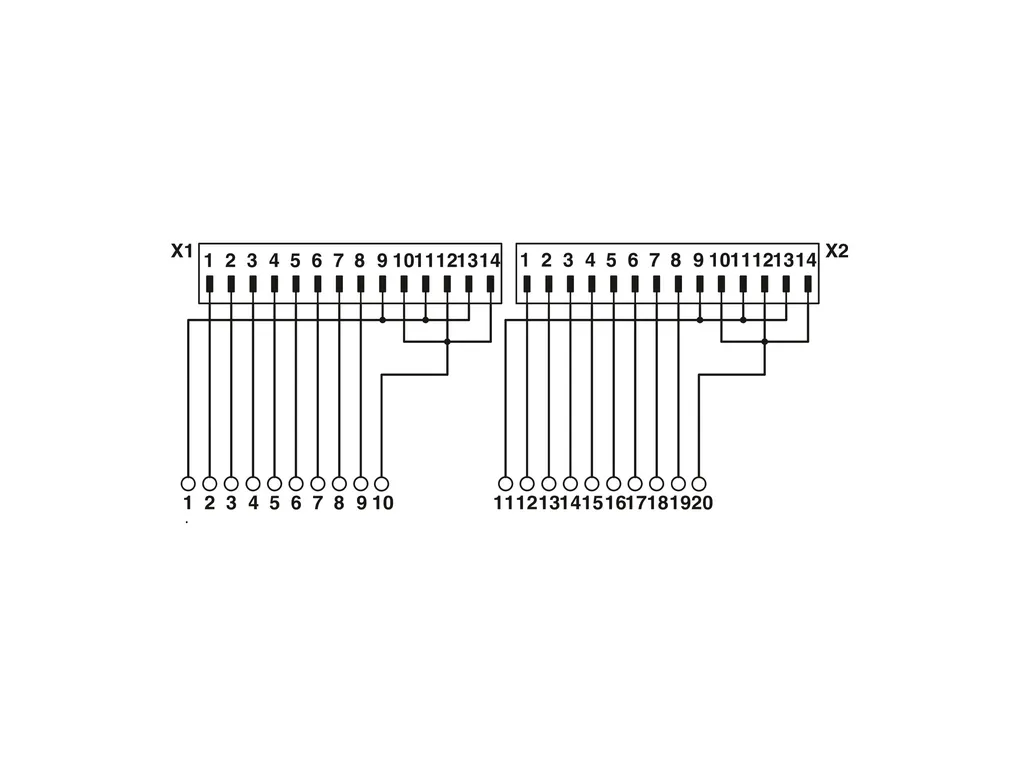

Connection data	Field level Connection method: Screw connection Stripping length: 8 mm Screw thread: M 3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Tightening torque: 0.5 Nm ... 0.6 Nm Controller level Connection method: IDC/FLK pin strip Number of connections: 2 Number of positions: 14 Pitch: 2.54 mm
Signaling	Status display: No Status display present: No
Dimensions	Item dimensions Width: 80.6 mm Height: 65.5 mm Depth: 56 mm
Material specifications	Housing insulation material: Polyamide PA non-reinforced
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 DINÃENÃ50178
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
