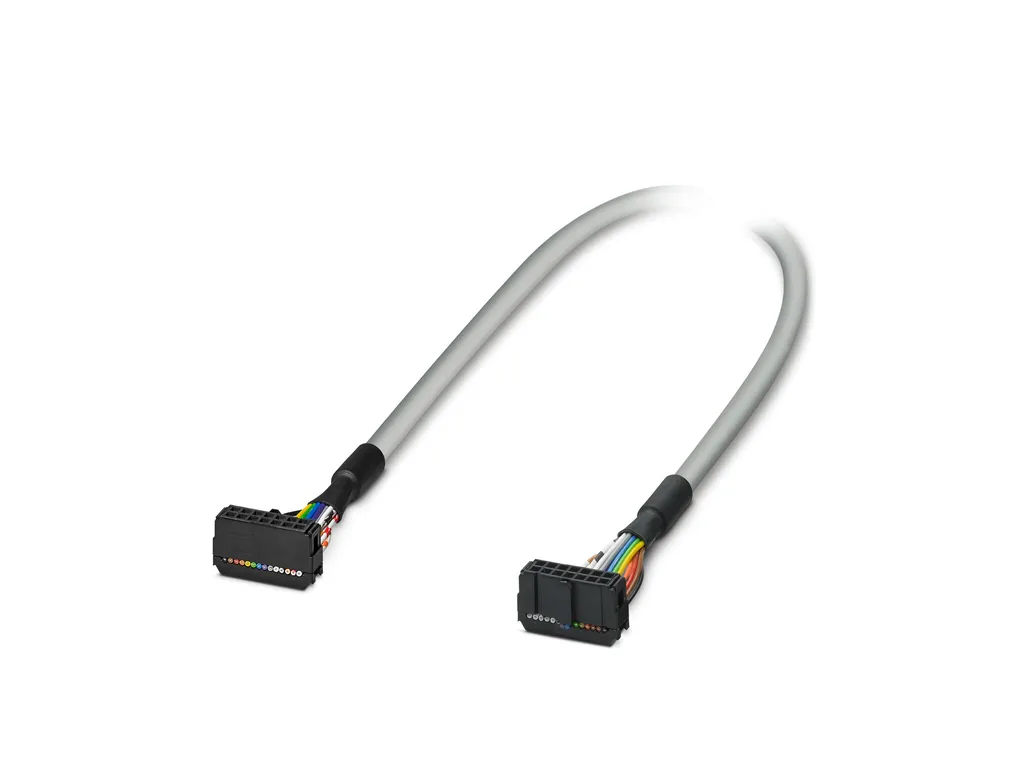

| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |

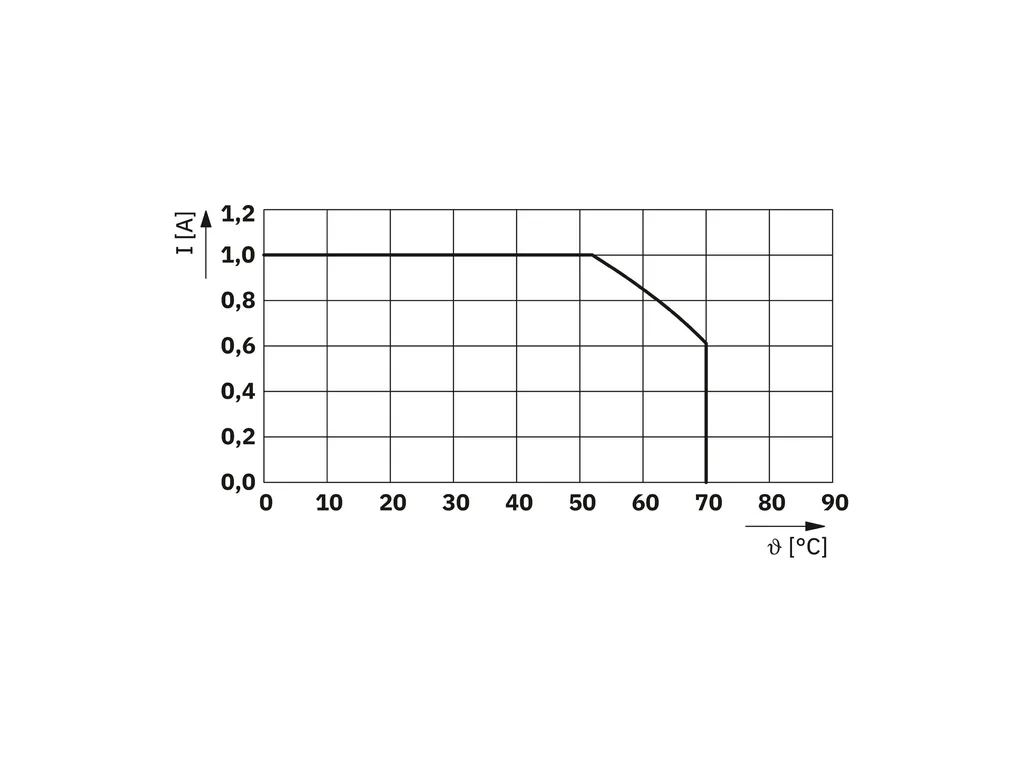

| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path, 50°C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70°C): ââ°¤ 0.6 A (Uncoiled, see derating) Supported controller SCHNEIDER ELECTRIC Modicon M340 Suitable I/O card: BMX DDI 3202K BMX DDI 6402K BMX DD0 3202K BMX DD0 6402K BMX DDM 3202K |
| Cable/line | Cable length: 8 m 40X0.14Ã[PVC] UL AWM Style: 2464/1061 Number of positions: 40 Shielded: no Cable type: 40X0.14Ã[PVC] Conductor type: Round cable set Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 40x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03Ãmm External cable diameter: 9.9 mm ñ0.4Ãmm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20ðC) Insulation resistance: ââ°¥ 20 Mé*km (20ðC) Smallest bending radius, fixed installation: 82 mm Smallest bending radius, movable installation: 155 mm Max. bending cycles: 5000 (at a radius of ââ°¥ 15x outside diameter) Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code Fujitsu40 (A1): IDC/FLK50 (47) = black Fujitsu40 (B1): IDC/FLK50 (37) = brown Fujitsu40 (A2): IDC/FLK50 (35) = red Fujitsu40 (B2): IDC/FLK50 (25) = orange Fujitsu40 (A3): IDC/FLK50 (46) = yellow Fujitsu40 (B3): IDC/FLK50 (45) = green Fujitsu40 (A4): IDC/FLK50 (44) = blue Fujitsu40 (B4): IDC/FLK50 (43) = violet Fujitsu40 (A5): IDC/FLK50 (42) = gray Fujitsu40 (B5): IDC/FLK50 (41) = white Fujitsu40 (A6): IDC/FLK50 (40) = white-black Fujitsu40 (B6): IDC/FLK50 (39) = white-brown Fujitsu40 (A7): IDC/FLK50 (34) = white-red Fujitsu40 (B7): IDC/FLK50 (33) = white-orange Fujitsu40 (A8): IDC/FLK50 (32) = white-yellow Fujitsu40 (B8): IDC/FLK50 (31) = white-green Fujitsu40 (A9): IDC/FLK50 (30) = white-blue Fujitsu40 (B9): IDC/FLK50 (29) = white-violet Fujitsu40 (A10): IDC/FLK50 (28) = white-gray Fujitsu40 (B10): IDC/FLK50 (27) = brown-black Fujitsu40 (A11): IDC/FLK50 (23) = brown-red Fujitsu40 (B11): IDC/FLK50 (13) = brown-orange Fujitsu40 (A12): IDC/FLK50 (11) = brown-yellow Fujitsu40 (B12): IDC/FLK50 (1) = brown-green Fujitsu40 (A13): IDC/FLK50 (22) = brown-blue Fujitsu40 (B13): IDC/FLK50 (21) = brown-violet Fujitsu40 (A14): IDC/FLK50 (20) = brown-gray Fujitsu40 (B14): IDC/FLK50 (19) = brown-white Fujitsu40 (A15): IDC/FLK50 (18) = green-black Fujitsu40 (B15): IDC/FLK50 (17) = green-brown Fujitsu40 (A16): IDC/FLK50 (16) = green-red Fujitsu40 (B16): IDC/FLK50 (15) = green-orange Fujitsu40 (A17): IDC/FLK50 (10) = green-blue Fujitsu40 (B17): IDC/FLK50 (9) = green-violet Fujitsu40 (A18): IDC/FLK50 (8) = green-gray Fujitsu40 (B18): IDC/FLK50 (7) = green-white Fujitsu40 (A19): IDC/FLK50 (6) = yellow-black Fujitsu40 (B19): IDC/FLK50 (5) = yellow-brown Fujitsu40 (A20): IDC/FLK50 (4) = yellow-red Fujitsu40 (B20): IDC/FLK50 (3) = yellow-orange |
| Connection data | Connection 1 Connection method: Fujitsu connector Type: FCN 367 Number of connections: 1 Number of positions: 40 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm Connection 2 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 1 Number of positions: 50 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
