| Product properties | Product type: Interface module Product family: VARIOFACE Professional Number of positions: 25 Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC Max. current carrying capacity per branch: 2.5 A |
| Connection data | Field level Connection in acc. with standard: IEC / EN Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Tightening torque: 0.5 Nm ... 0.6 Nm Controller level Connection method: D-SUB pin strip Number of connections: 1 Number of positions: 25 |
| Signaling | Status display: LED Status display present: Yes |

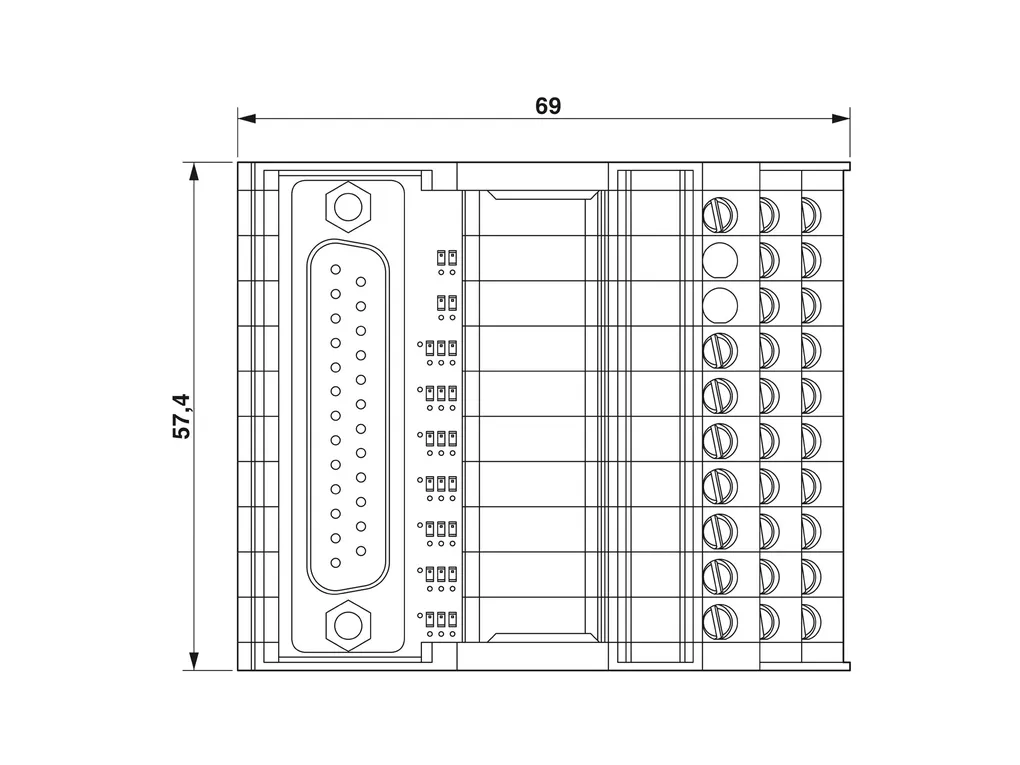

| Dimensions | Item dimensions Width: 57.4 mm Height: 69 mm Depth: 62 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing insulation material: Polyamide 6 green |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
