2322304 PHOENIX CONTACT -

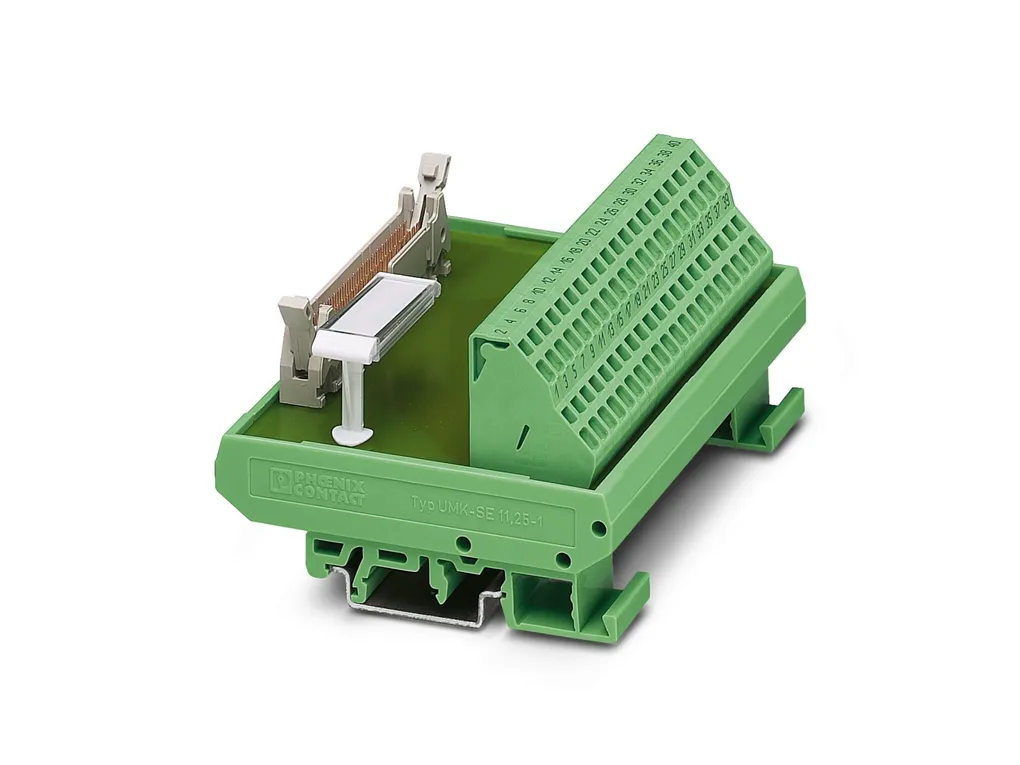

Product properties	Product type: Interface module Product family: VARIOFACE Professional Number of positions: 50 No. of channels: 2 4 6 8 16 32 Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 24 6 8 16 32 Max. permissible operating voltage: 25 VÃAC 60 VÃDC Max. current carrying capacity per branch: 1 A Rated surge voltage: 0.6 kV Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM Suitable I/O card: DDI 353 DDI 841 DDI 853 DAI 340 DAI 440 DAI 453 DDO 353 DDM 390 ACI 030 ACI 040 ATI 030 ARI 030 AVI 030 ACO 020 ACO 130 AVO 020 EHC 105 EHC 202

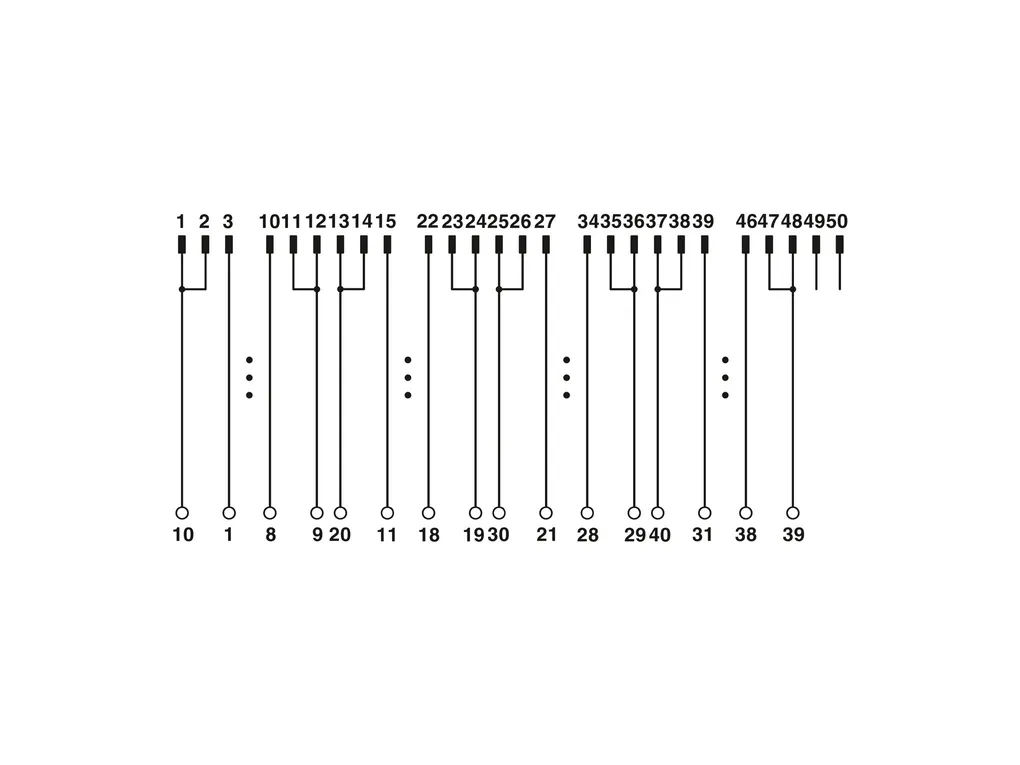

Connection data	Field level Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Tightening torque: 0.5 Nm ... 0.6 Nm Controller level Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 50 Pitch: 2.54 mm
Signaling	Status display: No Status display present: No
Dimensions	Item dimensions Width: 106.1 mm Height: 65.5 mm Depth: 56 mm
Material specifications	Flammability rating according to UL 94: V0 Housing insulation material: PVC
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 DINÃENÃ50178
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
