Not available
| Product properties | Product type: Relay socket Number of positions: 3 |
| Electrical properties | Nominal voltage UN: 400 V (voltage is determined by the coupling connector.) Nominal current IN: 16 A (current is determined by the coupling connector.) |
| Connection data | Connection method: Screw connection Stripping length: 7 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |

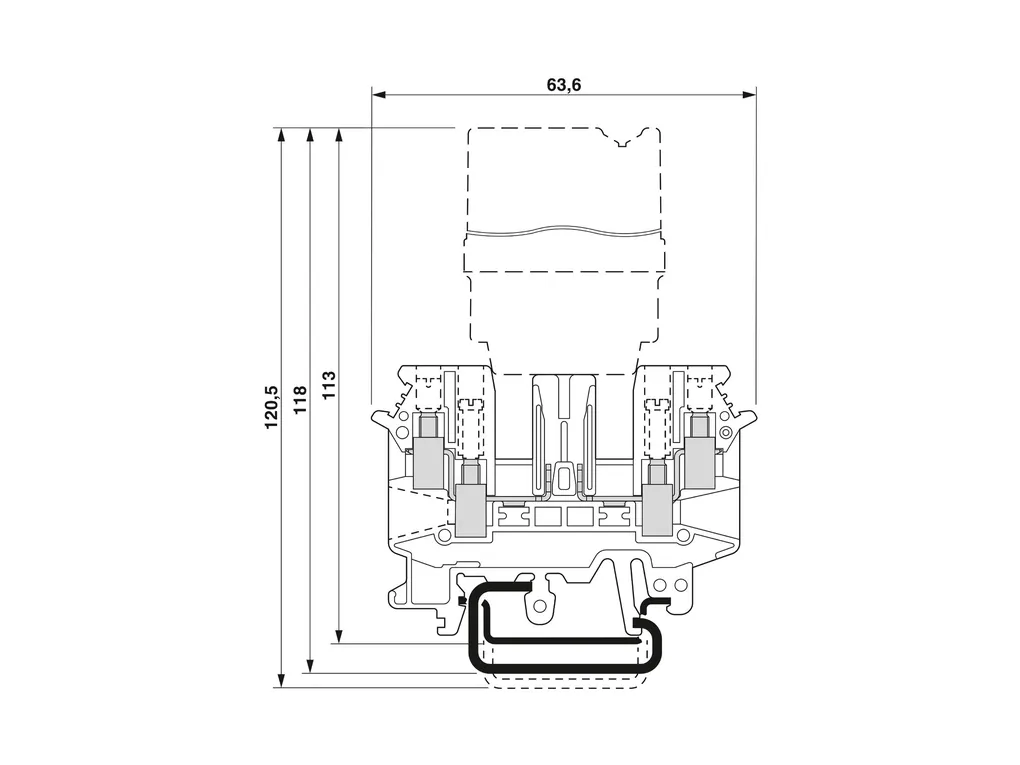

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/beea372136497b4d973d26acc0f9acc5/-S204x204-FJPG Width: 20.8 mm (with cover) Height: 63.6 mm Depth: 113 mm |
| Material specifications | Insulating material: PA |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
Description other products
