URELG 4 - Basic terminal block

Basic termination blocks with screw connection for NS 32 and NS 35/7.5 DIN rail, with end cover, for ST-REL..., ST-OV... and ST-OE... plugs, 4-pos.

Product Code: 2820149 copia - copy

Partner cod.: 2820149 copia - copy

PHOENIX CONTACT

Tecnichal data

Product properties	Product type: Relay socket Number of positions: 4
Electrical properties	Nominal voltage U_N: 400 V (voltage is determined by the coupling connector.) Nominal current I_N: 16 A (current is determined by the coupling connector.)
Connection data	Connection method: Screw connection Stripping length: 9 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

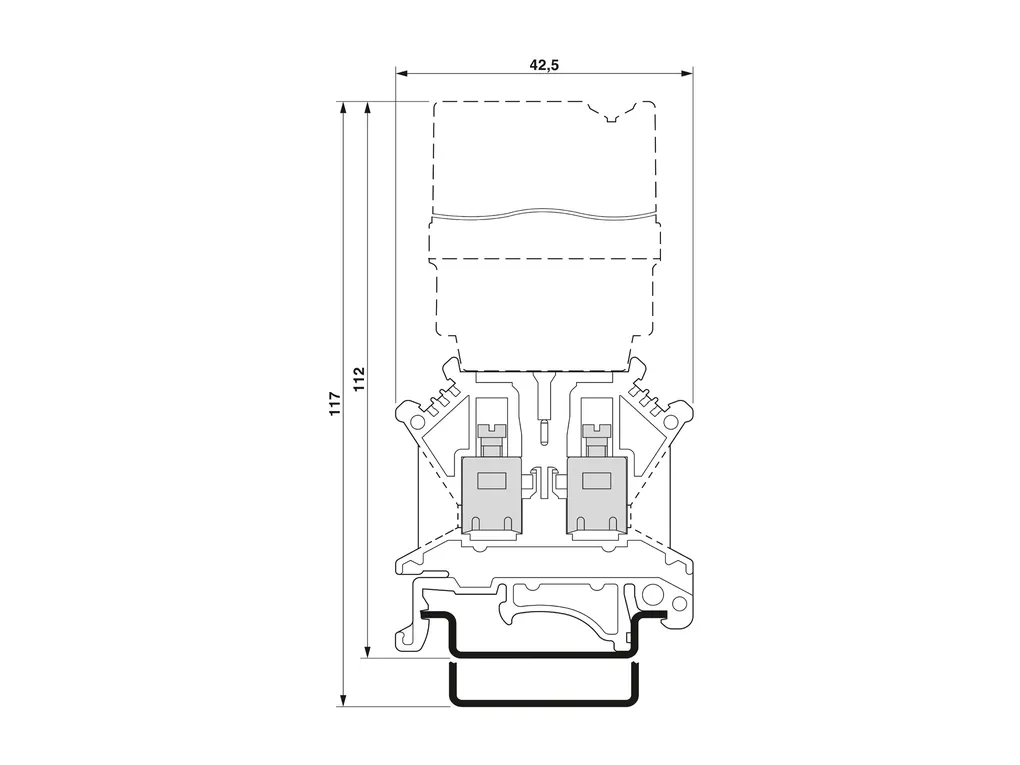

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7387f0052b2b854d83582d39d080b6f0/-S204x204-FJPG Width: 27 mm (with cover) Height: 42.5 mm Depth: 112 mm
Material specifications	Insulating material: PA
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
