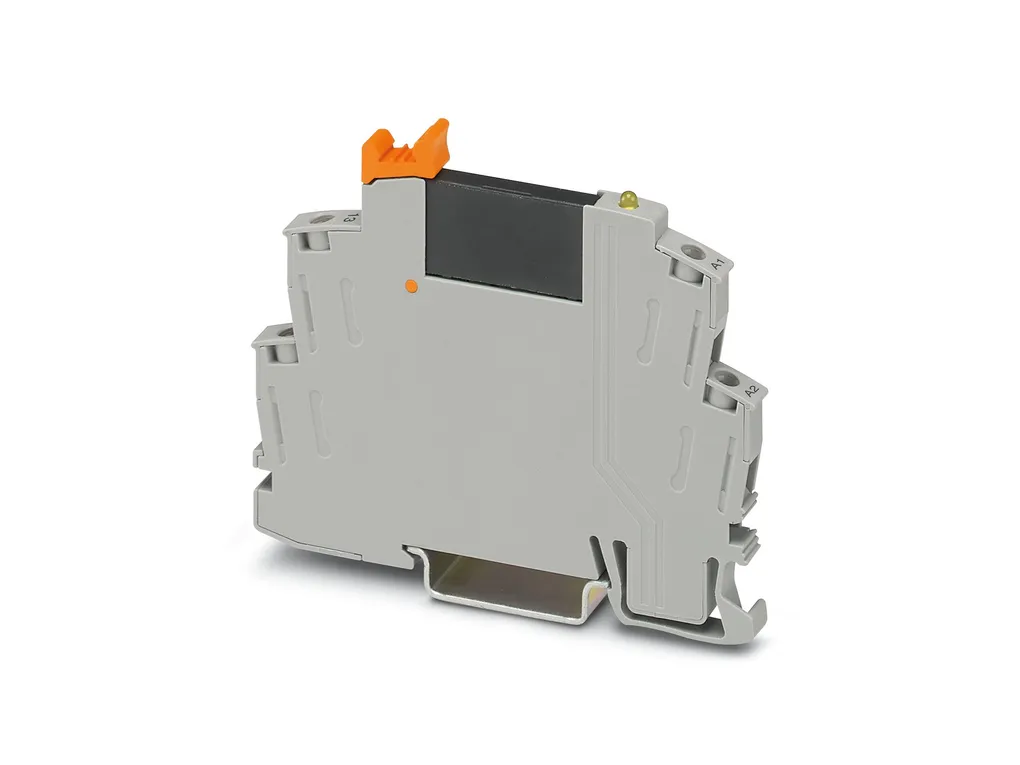

| Product properties | Product type: Relay socket Number of positions: 2 |
| Electrical properties | Nominal voltage UN: 400 V (voltage is determined by the coupling connector.) Nominal current IN: 16 A (current is determined by the coupling connector.) |
| Connection data | Connection method: Screw connection Stripping length: 7 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/db5c6a0915cc3f4c8bd27c8274abe99a/-S204x204-FJPG Width: 14.6 mm (with cover) Height: 86.5 mm Depth: 109.5 mm 114.5 mm (with NSÃ32 coupling connector) 117 mm (with NSÃ35/15 coupling connector) |
| Material specifications | Insulating material: PA |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
