2826512 PHOENIX CONTACT -

ST-REL2-KG220DC/1 - Relay connectors

Relay connector, fitted with miniature switching relay, contacts (AgNi): Medium to large loads, 1 N/O contact, 220 V DC input voltage, with light indicator, can be plugged into basic terminal blocks

Product Code: 2826512 copia - copy

Partner cod.: 2826512 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Operating mode: 100% operating factor Mechanical service life: approx. 2x 10⁷ cycles
Electrical properties	Maximum power dissipation for nominal condition: 0.99 W Test voltage (Winding/contact): 2.5 kV AC (50ÃHz, 1Ãmin., winding/contact)

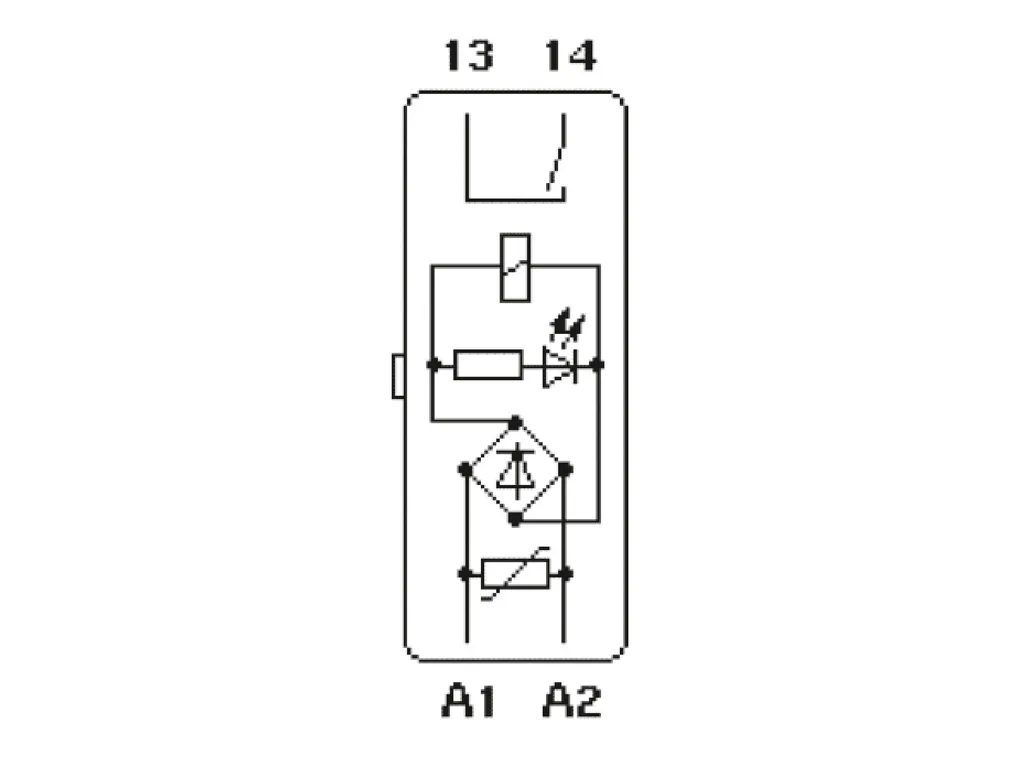

Input data	Coil side Nominal input voltage U_N: 220 VÃDC Input voltage range: 176 VÃDC ... 242 VÃDC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 4.5 mA Typical response time: 6 ms (with DC) Typical release time: 11 ms (with DC) Protective circuit: Damping diode, polarity protection; Damping diode, polarity protection diode, varistor Operating voltage display: yes
Output data	Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 95 W (at 24 V DC) 50 W (at 48 V DC) 45 W (at 60 V DC) 45 W (at 110 V DC) 75 W (at 220 V DC) 1500 VA (for 250 V AC)
Dimensions	Width: 14.6 mm Height: 33 mm Depth: 66.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 40°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: DINÃVDEÃ0110b, Gr. C for 250 V DC IEC 60255/DIN VDE 0435 (in relevant parts) DINÃENÃ50178/VDEÃ0160 (in relevant parts) ENÃ60730/DINÃVDEÃ0631 DINÃVDEÃ0160 (in relevant parts)
Mounting	Mounting type: Plug-in mounting Assembly instructions: After every 5 modules, spacing of 10 mm
