2900328 PHOENIX CONTACT -

PLC-RPT- 24UC/ 1/S/H - Switch

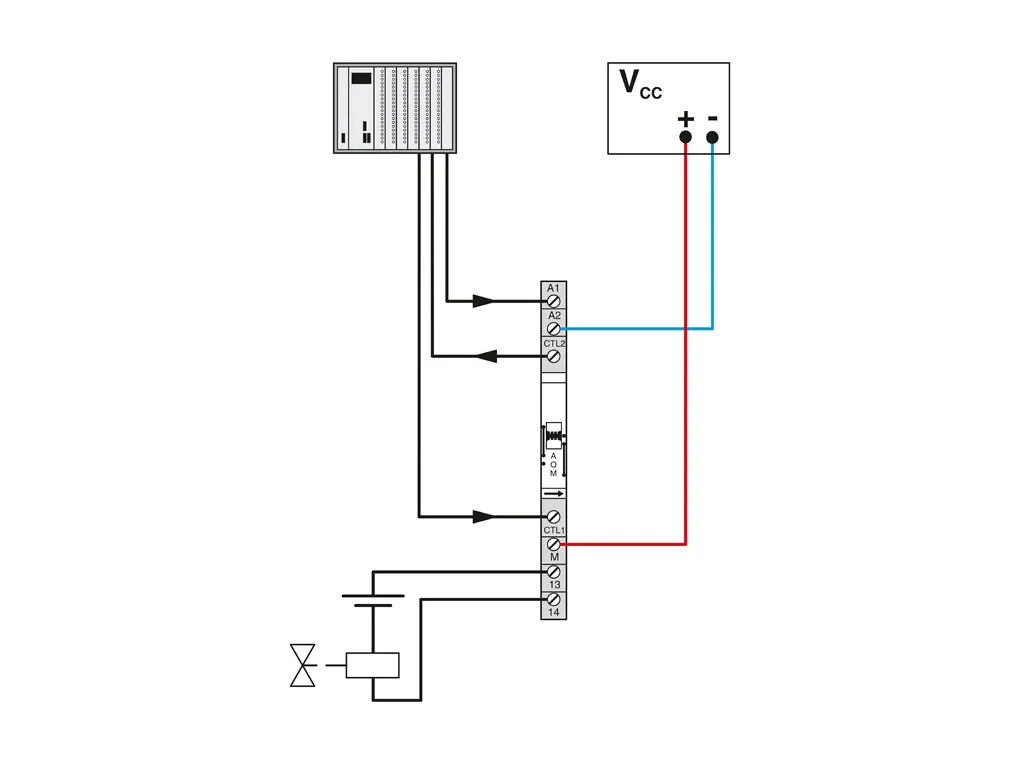

PLC-INTERFACE with switch (operation by hand) and integrated power contact relay for the "Manual, Zero and Automatic" functions, with push-in connection, for mounting on DIN rail NS 35/7.5, one N/O contact, input voltage 24 V AC/DC

Product Code: 2900328 copia - copy

Partner cod.: 2900328 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Palm switch Operating mode: 100% operating factor Insulation characteristics: Air clearances and creepage distances between the power circuits Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.26 W Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV
Input data	Coil side Nominal input voltage U_N: 24 V AC/DC Input voltage range: 19.4 V AC/DC ... 33.6 V AC/DC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 11 mA Typical response time: 6 ms Typical release time: 15 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact connection type: Power contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (100 mA) Limiting continuous current: 6 A Maximum inrush current: on request Min. switching current: 10 mA (12ÃV) Short-circuit current: 200 A (conditional short-circuit current) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Output fuse: 4 A gL/gG NEOZED
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 90 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60664 IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
