2900345 PHOENIX CONTACT -

PLC-RPT-230UC/21-21AU/RWF - Relay Module

PLC-INTERFACE for railway applications, consisting of basic terminal block with Push-in connection and plug-in miniature relay with multi-layer gold contact, range: 0.75 x UN to 1.15 x UN, nominal input frequency 16.7 Hz, 2 changeover contacts, input voltage 230 V AC

Product Code: 2900345 copia - copy

Partner cod.: 2900345 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Railway applications Operating mode: 100% operating factor Mechanical service life: approx. 3x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 1.1 W Test voltage (Winding/contact): 6 kV (50ÃHz, 1Ãmin., winding/contact) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV

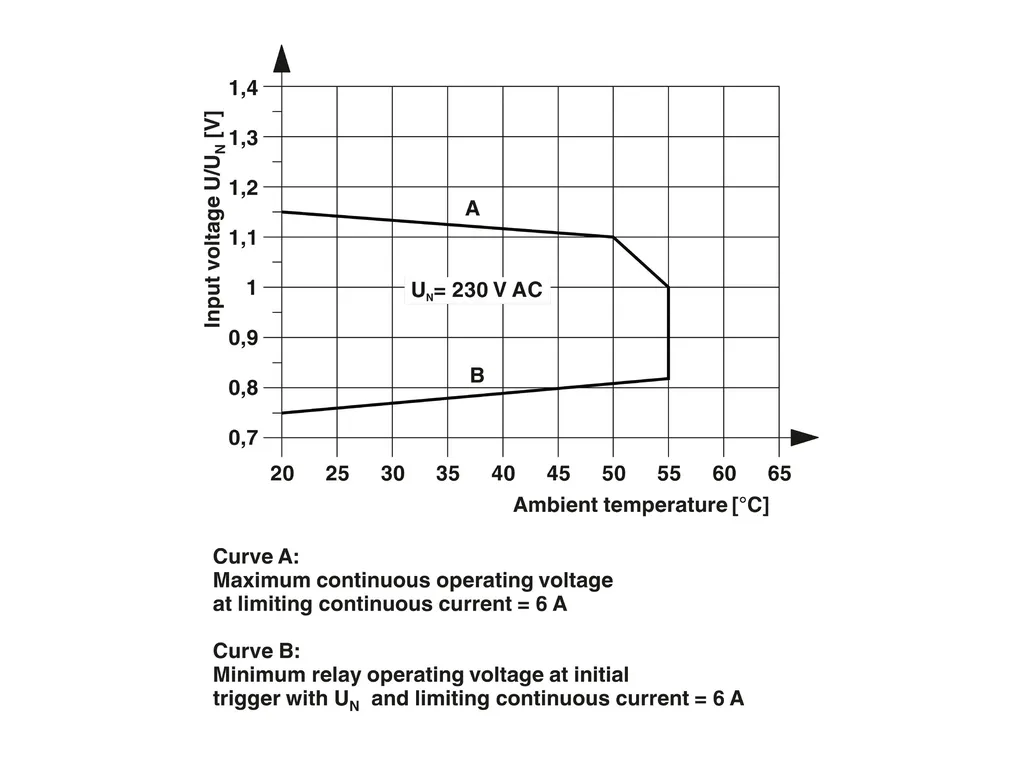

Input data	Coil side Nominal input voltage U_N: 230 VÃAC Input voltage range: 172.5 VÃAC ... 264.5 VÃAC (20Ã°C) Mains frequency: 16.67 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 4.8 mA (with AC) Typical response time: 20 ms Typical release time: 60 ms Coil voltage: 110 VÃDC Protective circuit: Bridge rectifier Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Note: If the specified maximum values are exceeded, the gold plating is destroyed. The AgNi contact values are then valid for further operation; a reduction in length of service life is to be expected. Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA Interrupting rating (ohmic load) max.: 1.2 W (24ÃVÃDC) Switching capacity: 2 A (24 V (DC13), in acc. with DIN VDE 0660/IEC 60947) 0.2 A (220 V DC / 230 V AC (DC13), in acc. with DIN VDE 0660/IEC 60947) 3 A (220 V DC / 230 V AC (AC15), in acc. with DIN EVDE 0660/IEC 60947) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgNi Maximum switching voltage: 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250ÃV (L1, L2, L3) between identical terminal blocks in adjacent modules.) Minimum switching voltage: 5 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Min. switching current: 10 mA Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 85 W (at 48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 2 A (at 24 V, AC15) 2 A (at 120 V, AC15) 2 A (at 250 V, AC15)
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 14 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT III (Relay) Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
