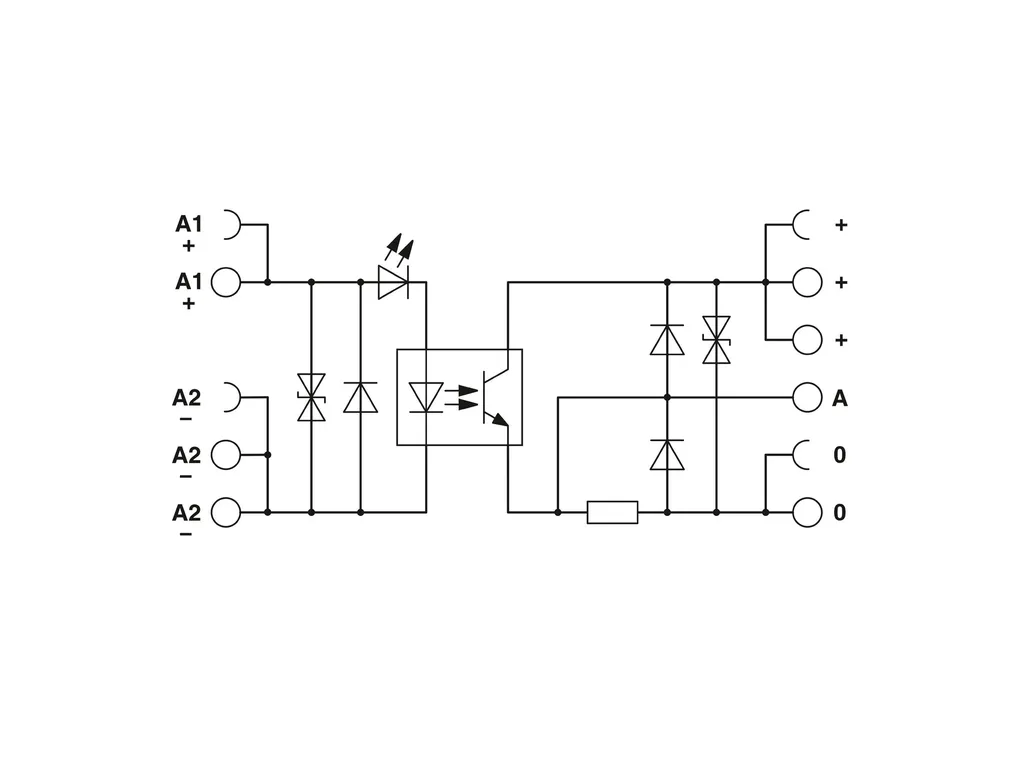

| Product properties | Product type: Solid-state relay module Product family: PLC-INTERFACE Application: TTL signal at output Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.08 W Test voltage (Input/output): 2.5 kVrms (50ÃHz, 1Ãmin., input/output) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃDC Rated surge voltage: 4 kV |
| Input data | Rated actuating voltage UC: 24 VÃDC Voltage range with reference to UC: 0.8 ... 1.2 Rated actuating current IC: 3.4 mA Switching threshold "0" signal in reference to UN: < 0.4 Switching threshold "1" signal in reference to UN: > 0.8 Typical input current at UN: 3.4 mA Typical response time: 35 õs Typical turn-off time: 35 õs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Parallel polarity protection diode Surge protection Surge voltage protection: > 33 V Transmission frequency: 1 kHz |
| Output data | Designation: Output data Contact switching type: 1 N/O contact Design of digital output: electronic Contact connection type: Signal contact Rated control circuit supply voltage US: 5 VÃDC Voltage range with reference to US: 0.9 ... 1.2 Output voltage range: 4.5 VÃDC ... 6 VÃDC Limiting continuous current: 50 mA (a TTL load (Fan out = 1)) Fan out: 1 Surge voltage protection: > 8 V Voltage drop at max. limiting continuous current: < 80 mV Output circuit: 3-conductor, ground-referenced Protective circuit: Reverse polarity protection; Parallel polarity protection diode Surge protection |
| Connection data | Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
