2900378 PHOENIX CONTACT -

PLC-OPT- 24DC/ 48DC/500/W - Solid-state relay module

PLC-INTERFACE with electronic changeover contact, consisting of PLC-BPTÃ¢â¬¦/21 basic terminal block with Push-in connection and integrated miniature solid-state relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input: 24 V DC, output: 3-48 V DC/500 mA

Product Code: 2900378 copia - copy

Partner cod.: 2900378 copia - copy

PHOENIX CONTACT

Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: With integrated solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.07 W Standards/regulations Rated insulation voltage: 300 V Rated surge voltage: 4 kV
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.4 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.8 Typical input current at U_N: 3 mA Typical response time: 0.03 ms Typical turn-off time: 0.15 ms Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Transmission frequency: 1000 Hz

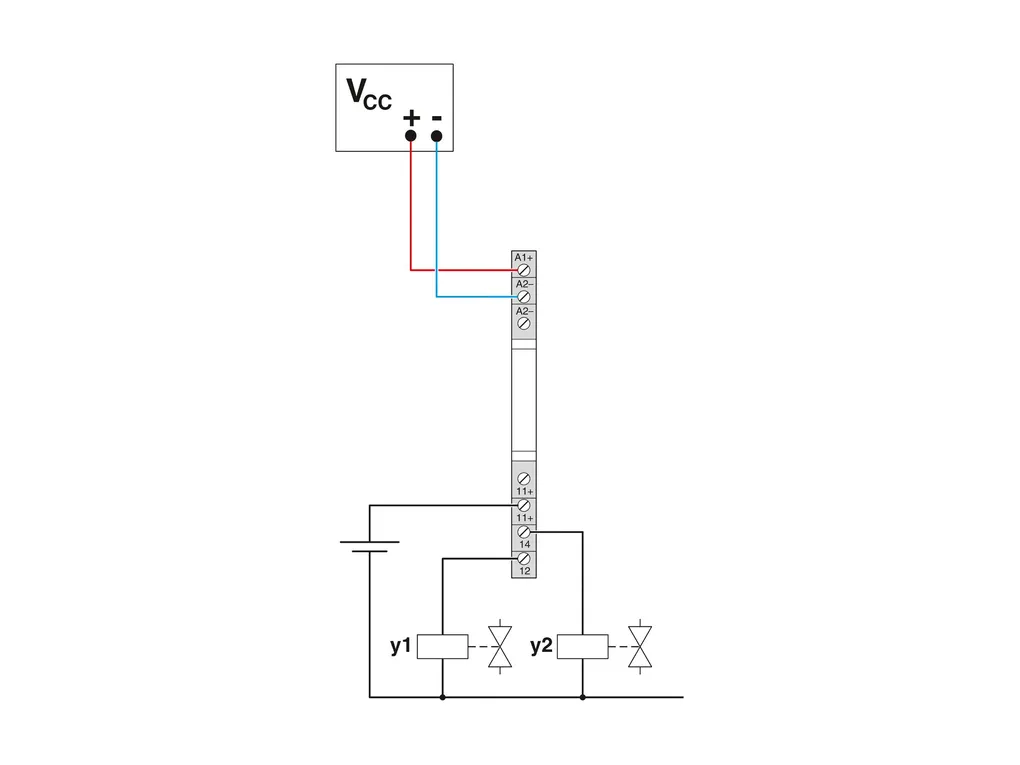

Output data	Contact switching type: 1Ãchangeover contact Design of digital output: electronic Contact connection type: Power contact Output voltage range: 3 VÃDC ... 48 VÃDC Limiting continuous current: 500 mA (see derating curve) Min. load current: 1 mA Voltage drop at max. limiting continuous current: < 1.2 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 86 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations Standards/regulations: IEC 60664 ENÃ50178
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
