PLC-OPT- 24DC/300DC/1 - Solid-state relay module

PLC-INTERFACE, integrated solid-state relay, with push-in connection, for mounting on NS 35/7,5 DIN rails, input: 24 V DC, output: 12 - 300 V DC/1 A

Product Code: 2900383 copia - copy

Partner cod.: 2900383 copia - copy

PHOENIX CONTACT

Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: With integrated solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.19 W Standards/regulations Rated insulation voltage: 300 V Rated surge voltage: 2.5 kV
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.4 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.8 Typical input current at U_N: 8 mA Typical response time: 0.3 ms Typical turn-off time: 0.7 ms Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection; Varistor Transmission frequency: 50 Hz

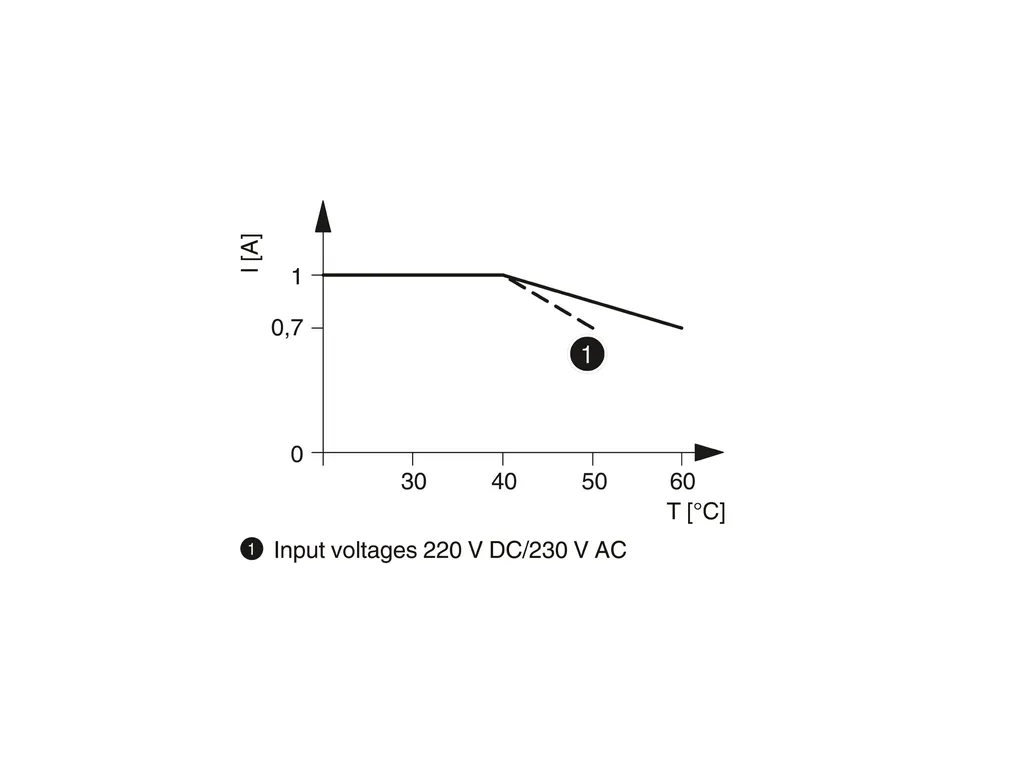

Output data	Designation: Output data Contact switching type: 1 N/O contact Design of digital output: electronic Contact connection type: Power contact Output voltage range: 12 VÃDC ... 300 VÃDC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) Limiting continuous current: 1 A (see derating curve) Voltage drop at max. limiting continuous current: < 500 mV Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection; Varistor
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 86 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Standards/regulations Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
