| Product properties | Product type: Front adapter Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1 A Current (Per connection, separate power supply): ââ°¤ 4 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller HONEYWELL Experion PKS C300/C-Series Suitable I/O card: TAIX01 (non-redundant) TAIX11 (redundant) TAIX51 (non-redundant) TAIX61 (redundant) TAIN01 (non-redundant) TAIN11 (redundant) TAOX01 (non-redundant) TAOX11 (redundant) |

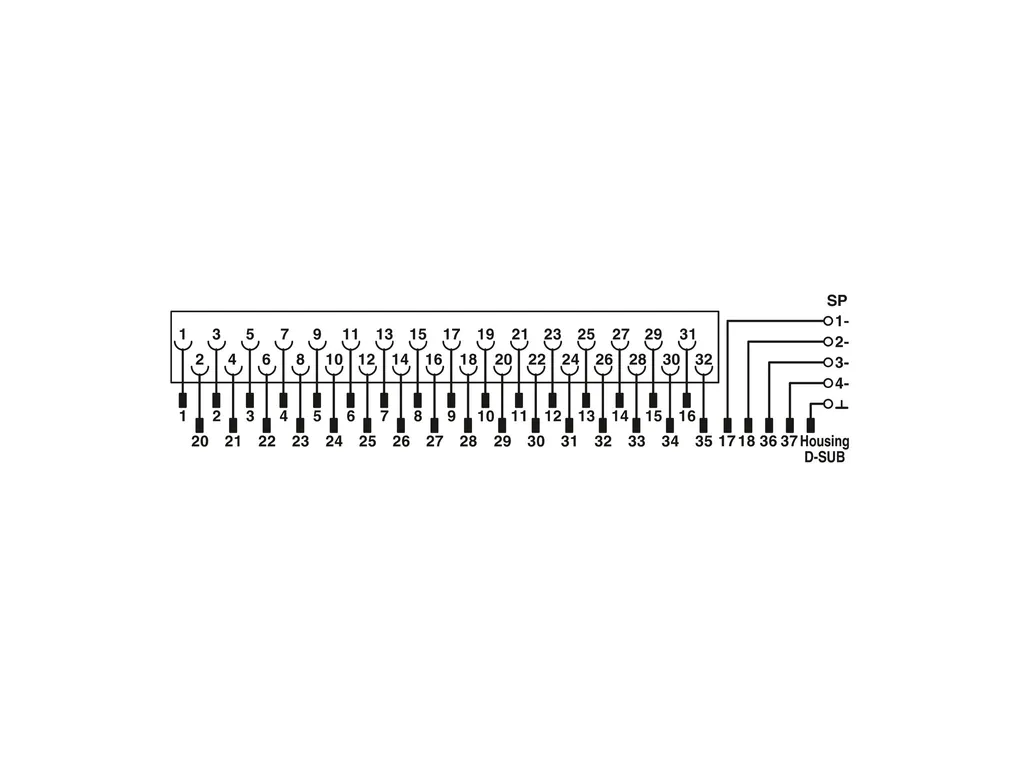

| Connection data | ConnectionÃ1 (control level) Connection method: Plug-in connection Number of connections: 2 Number of positions: 16 Pitch: 5.08 mm ConnectionÃ2 (field level) Connection in acc. with standard: IEC 60807-2 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 37 Insertion/withdrawal cycles: > 500 Pitch: 2.77 mm ConnectionÃ3 (supply) Connection method: Spring-cage connection Number of positions: 5 Note: 2,8 x 0,8 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Item dimensions Width: 93.8 mm Height: 41.8 mm Depth: 48.3 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: Plug-in mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
