PHOENIX CONTACT 2900899
PHOENIX CONTACT 2900899
PHOENIX CONTACTNot available

UM-KS50/32MR/1/ADV551/SC/SO207 - Relay module

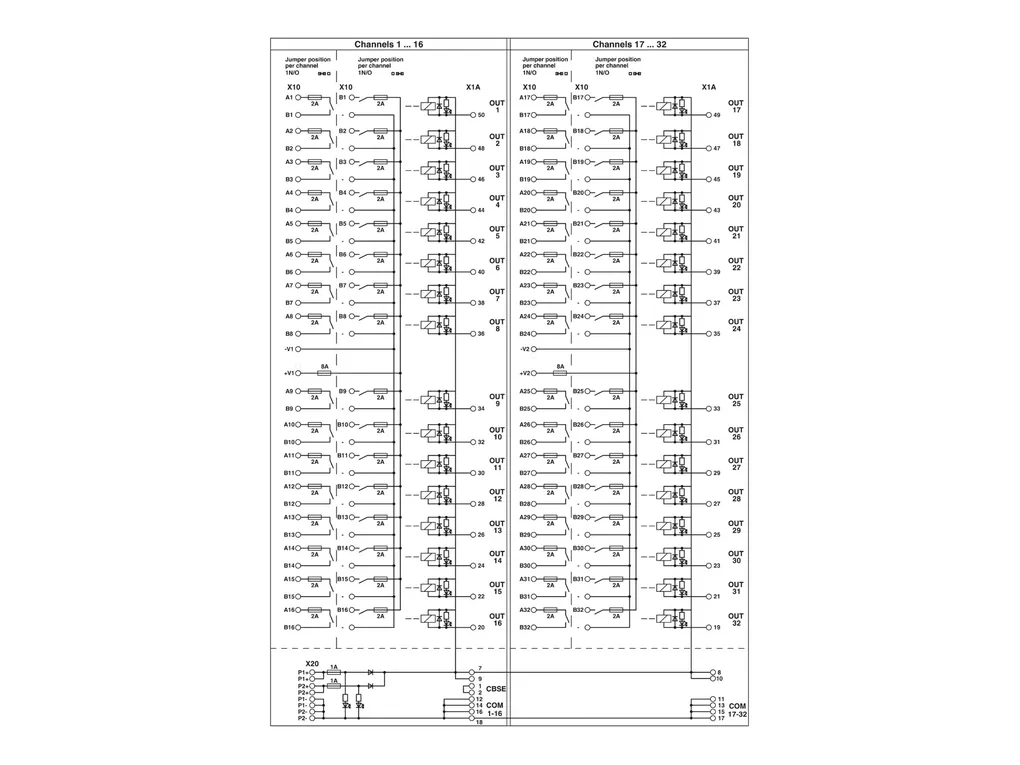

32-channel VARIOFACE relay module with screw connection and 50-pos. system connection. The power supply is designed redundantly, for Yokogawa ADV 551 card
Product Code: 2900899 copia - copy
Partner cod.: 2900899 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Description
Tecnichal data
Product propertiesProduct type: Interface module
No. of channels: 32
Data management status
Article revision: 07
Insulation characteristics: Air clearances and creepage distances, input/output
Insulation: Safe isolation, reinforced insulation
Overvoltage category: III
Pollution degree: 2
Insulation characteristics: Air and creepage distances, output/output
Insulation: Basic insulation
Overvoltage category: III
Pollution degree: 2
Electrical propertiesAir clearances and creepage distances, input/output
Rated insulation voltage: 300 V
Rated surge voltage: 6 kV (1.2/50 μs)
Air and creepage distances, output/output
Rated insulation voltage: 300 V
Rated surge voltage: 4 kV (1.2/50 μs)
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card: ADV551
ADV561
Supported controller YOKOGAWA STARDOM
Suitable I/O card: NFDV551
NFDV561
Input dataNominal input voltage UN: 24 V DC
Input voltage range in reference to UN: 0.8 ... 1.1
Input voltage range: 19.2 V DC ... 26.4 V DC
Typical input current at UN: 9 mA (per channel)
Protective circuit: Damping diode, polarity protection; Damping diode, polarity protection diode
Reverse polarity protection; Polarity protection diode
Operating voltage display: Green LED
Status display/channel: Yellow LED
Output dataSwitching
Contact switching type: 1 N/O contact
Type of switch contact: Single contact
Contact material: AgSnO
Maximum switching voltage: 230 V AC
Limiting continuous current: 2 A (Per channel, plug-in fuse (IEC 6012-3/IV, 2AT); for 100% ED 1 A per channel)
Maximum inrush current: 8 A (Supply, (V1+, V2+), pluggable fuse (UL 248-14, 250 V, 8AT))
Min. switching current: 100 mA
Interrupting rating (ohmic load) max.: 48 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
500 VA (for 250 V AC)
Connection dataField level
Connection method: Screw connection
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section AWG: 24 ... 12
Controller level
Connection method: Yokogawa KS-compatible
Number of connections: 1
Number of positions: 50
Tightening torque: 0.5 Nm
Supply
Connection method: Screw connection
Number of positions: 8
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section AWG: 24 ... 12
SignalingStatus display present: Yes
DimensionsWidth: 267 mm
Height: 127.5 mm
Depth: 56.5 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP00
Degree of protection (Installation location): ≥ IP54 (Installation location)
Ambient temperature (operation): -20 °C ... 50 °C
Altitude: ≤ 2000 m
Standards and regulationsAir clearances and creepage distances, input/output
Standards/regulations: EN 61010-2-201
Air and creepage distances, output/output
Standards/regulations: EN 61010-2-201
MountingMounting type: DIN rail mounting
Mounting position: any
NotesNotes on operation: Observe the maximum switching capacity of the relays used
Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates).
Adjacent channels are not suitable for switching different line conductors.
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Description
UM-KS50/32MR/1/ADV551/SC/SO207 Portarel
