2901056 PHOENIX CONTACT -

FLKM-2KS40/YCS - Passive module

VARIOFACE interface module for analog modules, 1:1 connection, redundant connector. For Yokogawa CENTUM CS3000 cards AAV141, AAV142, AAI141, AAI143, AAV542, AAI543, AAI135, AAI835, AAP135, AAT141, AAR181, AAB841.

Product Code: 2901056 copia - copy

Partner cod.: 2901056 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module No. of channels: 4 8 12 16 Operating mode: 100% operating factor Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 48 12 16 Operating voltage (DC): Ã¢Ã¢°¤ 30 VÃDC Current (per branch): Ã¢Ã¢°¤ 0.1 A Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV (1.2/50 Ã¼s) Supported controller YOKOGAWA CS3000 CentumVP Suitable I/O card: AAI543 AAI141 AAI143 AAI835 AAI841 AAI135 AAR181 AAT141 AAV141 AAV142 AAB841 AAV542 Supported controller YOKOGAWA STARDOM Suitable I/O card: NFAI141 NFAI43 NFAI543 NFAI135 NFAP135 NFAV141 NFAV142 NFAV542 NFAB841 NFAI841 NFAI835
Connection data	ConnectionÃ1 (control level) Connection method: Yokogawa KS-compatible Number of connections: 2 Number of positions: 40 Tightening torque: 0.5 Nm Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Number of positions: 36 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Signaling	Status display present: No

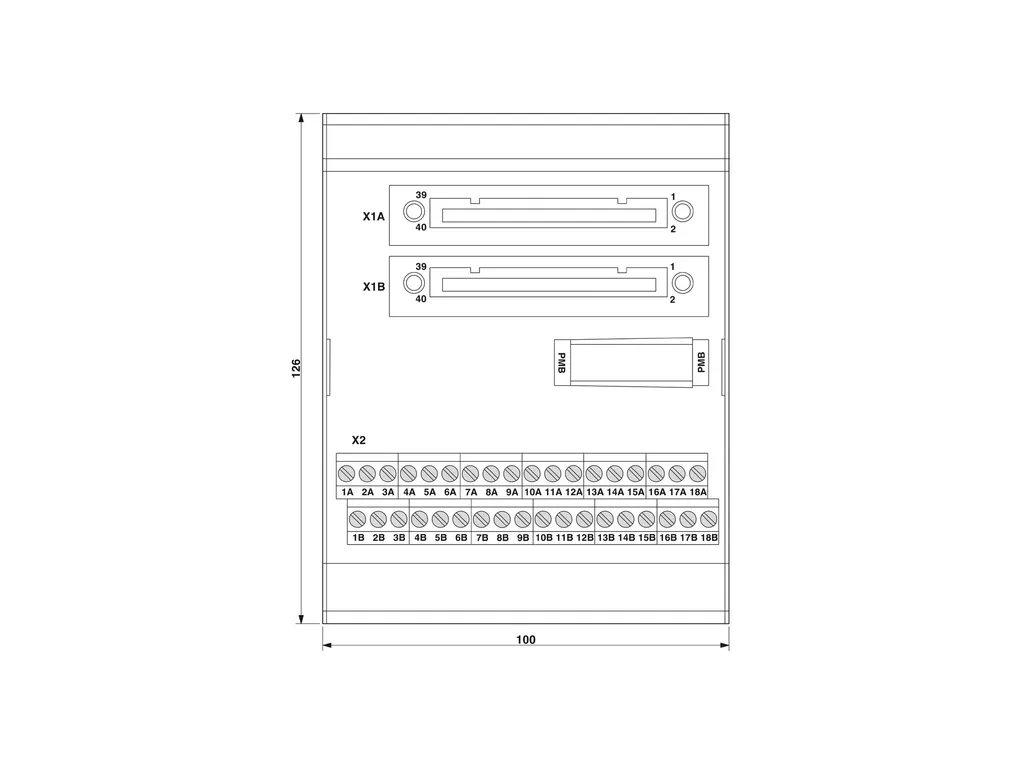

Dimensions	Item dimensions Width: 99.5 mm Height: 125.4 mm Depth: 65.8 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¤ IP54 Ambient temperature (operation): -20°C ... 65°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
