2901423 PHOENIX CONTACT -

FLKM-PA-D37/HW/DIO/C300 - Front adapter

VARIOFACE front adapter, for Honeywell C300, Series C I/O, maximum of 1x 16 channels can be connected (37-pos. D-SUB connector). Specifically for connecting digital, redundant I/O cards.

Product Code: 2901423 copia - copy

Partner cod.: 2901423 copia - copy

PHOENIX CONTACT

Product properties	Product type: Front adapter Product family: VARIOFACE Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Operating voltage (AC): Ã¢Ã¢°¤ 30 VÃAC Operating voltage (DC): Ã¢Ã¢°¤ 60 VÃDC Current (per branch): Ã¢Ã¢°¤ 2 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 Ã¼s) Supported controller HONEYWELL Experion PKS C300/C-Series Suitable I/O card: TDIL01 (non-redundant) TDIL11 (redundant) TDIL51 (non-redundant) TDIL61 (redundant) TDI110 (non-redundant) TDI120 (redundant) TDOB01 (non-redundant) TDOB11 (redundant) TDOB51 (non-redundant) TDOB61 (redundant) TAID01 (non-redundant) TAID11 (redundant) TAOX01 (non-redundant) TAOX11 (redundant) TAOX51 (non-redundant) TAOX61 (redundant) TAON01 (non-redundant) TAON11 (redundant)

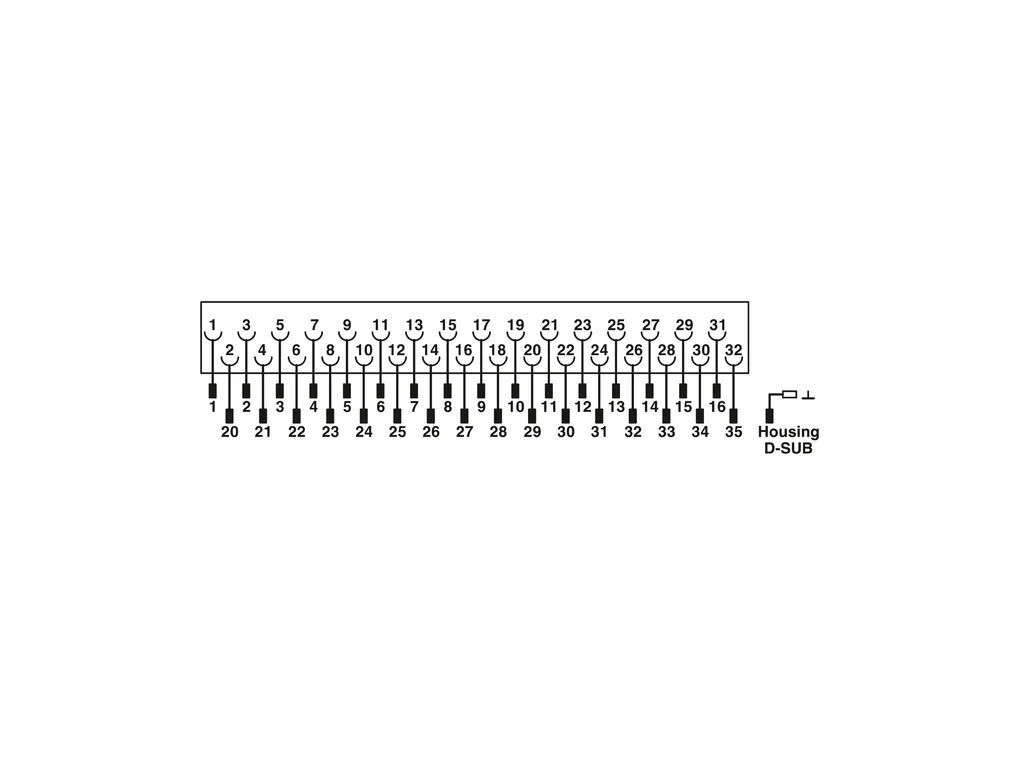

Connection data	ConnectionÃ1 (control level) Connection method: Plug-in connection Number of connections: 2 Number of positions: 16 Pitch: 5.08 mm ConnectionÃ2 (field level) Connection in acc. with standard: IEC 60807-2 Connection method: D-SUB pin strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 37 Insertion/withdrawal cycles: > 500 Pitch: 2.77 mm ConnectionÃ3 (shield) Connection method: Spade connection Number of positions: 1 Note: 2,8 x 0,8
Dimensions	Item dimensions Width: 93.8 mm Height: 28 mm Depth: 46.74 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: Plug-in mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
