| Product properties | Product type: Relay socket Product family: RIFLINEÃcomplete |

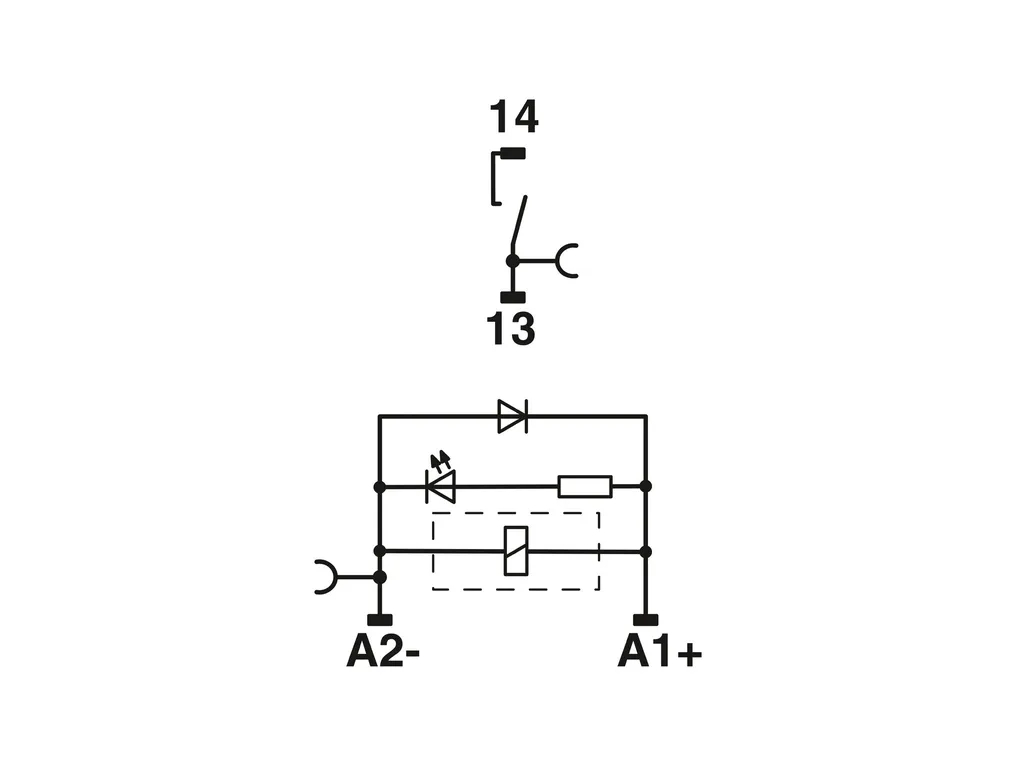

| Electrical properties | Nominal voltage UN: 250 V AC/DC (Contact side) Nominal current IN: max. 8 A (Depends on application/assembly) Protective circuit: Freewheeling diode |
| Input data | Input voltage range: 12 VÃDC ... 24 VÃDC |
| Connection data | Connection method: Screw connection Stripping length: 7 mm Conductor cross section rigid: 0.5 mm² ... 4 mm² Conductor cross-section rigid (2 conductors with same cross section): 0.5 mm² ... 1.5 mm² Conductor cross section flexible: 0.5 mm² ... 2.5 mm² 0.5 mm² ... 2.5 mm² (Ferrules without plastic sleeve) 0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve) Conductor cross section flexible (2 conductors with same cross section): 0.5 mm² ... 1.5 mm² 0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) Conductor cross section AWG: 20 ... 12 (solid) 20 ... 14 (flexible) Tightening torque: 0.5 Nm ... 0.6 Nm |
| Dimensions | Width: 6.2 mm Height: 84 mm Depth: 68 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C (Depends on application/assembly) Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
