| Product properties | Product type: Interface module No. of channels: 32 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 32 Operating voltage range: 19.2 VÃDC ... 26.4 VÃDC Fuse: 2 A 5x20 (fast-blow) (F101, F102) Current (per branch): ââ°¤ 1 A Current (Voltage supply): ââ°¤ 2 A (TA = 50°C) ââ°¤ 1.8 A (TU = 60ðC) ââ°¤ 1.5 A (TU = 70ðC) Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV (1.2/50 üs) Supported controller YOKOGAWA CS3000 CentumVP Suitable I/O card: ADV151 ADV161 ADV551 ADV561 Supported controller YOKOGAWA STARDOM Suitable I/O card: NFDV151 NFDV161 NFDV551 NFDV561 |
| Connection data | ConnectionÃ1 (control level) Connection method: Yokogawa KS-compatible Number of connections: 2 Number of positions: 50 Note: Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 Tightening torque: 0.5 Nm Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 96 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 ConnectionÃ3 (supply) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 8 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Signaling | Status display present: Yes, for power supply Operating voltage display: Green LED |

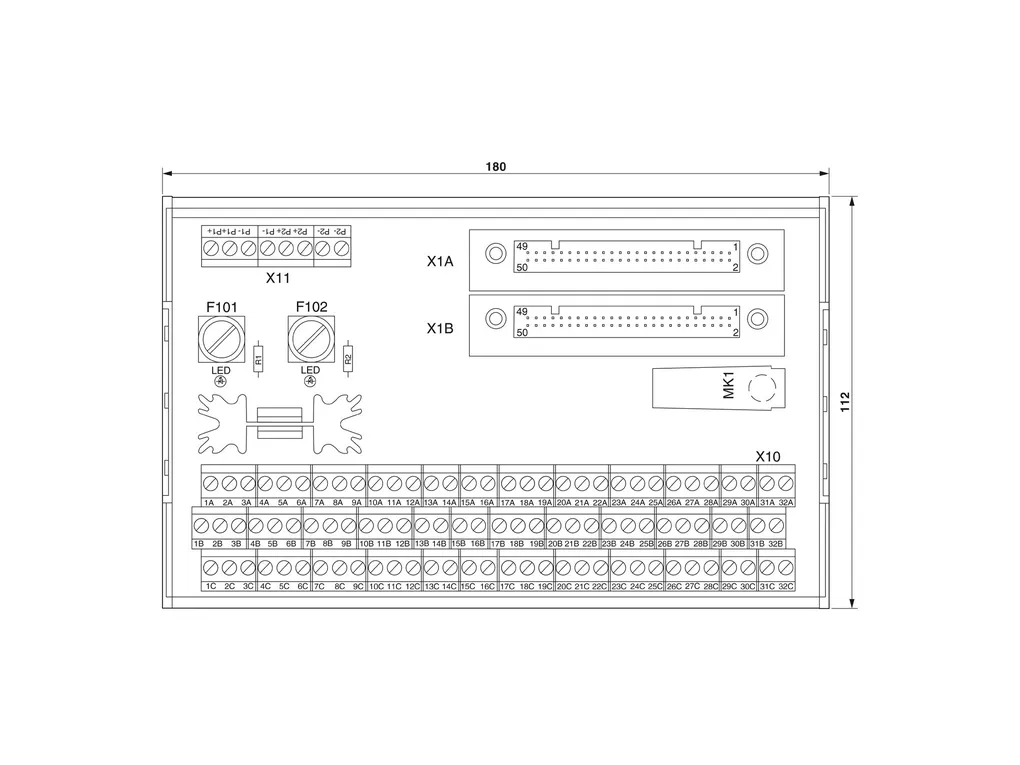

| Dimensions | Item dimensions Width: 180.3 mm Height: 111.8 mm Depth: 69.2 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¤ IP54 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
