2902647 PHOENIX CONTACT -

RIF-T3-24UC - Timer module

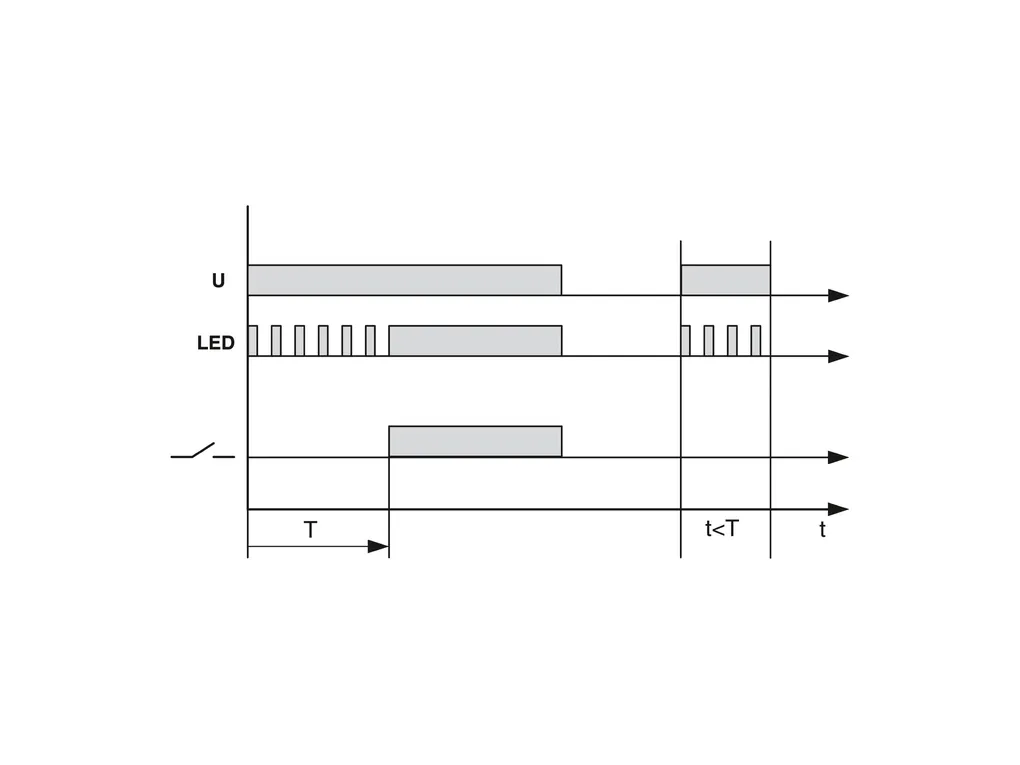

Plug-in module for extending a relay module to create a timer relay, 3time functions, 4time ranges, for mounting on RIF-1, RIF-2, RIF-3, and RIF-4, input voltage: 12VDC...24VDC

Product Code: 2902647 copia - copy

Partner cod.: 2902647 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Plug-in module Product family: RIFLINEÃcomplete Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances in a circuit Insulation: Basic insulation Overvoltage category: I Pollution degree: 2
Electrical properties	Setting accuracy: 3 % (of scale end value) Nominal voltage U_N: 24 V AC/DC Repeat accuracy: 1 % Air clearances and creepage distances in a circuit Rated insulation voltage: 50 VÃDC Rated surge voltage: 0.4 kV
Input data	Nominal input voltage U_N: 24 VÃDC (AC operation only permitted for RIF-1) Input voltage range in reference to U_N: 0.4 ... 1.2 Mains frequency: 50 Hz 60 Hz Status display: Yellow LED Protective circuit: Varistor Surge voltage protection: > 56 V
Output data	Limiting continuous current: Ã¢Ã¢°¤ 250 mA (Relay coil current) Voltage drop at max. limiting continuous current: < 100 mV
Dimensions	Width: 13 mm Height: 12 mm Depth: 35 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 50°C (RIF-1, AC coil, 2 changeover contacts at 6 A) -25°C ... 50°C (RIF-1, DC coil, 2 changeover contacts at 5 A) -25°C ... 40°C (RIF-2, DC coil, 2 changeover contacts at 8 A) -25°C ... 40°C (RIF-2, DC coil, 4 changeover contacts at 5 A) -25°C ... 40°C (RIF-3, DC coil, 3 changeover contacts at 6.75 A) -25°C ... 40°C (RIF-3, DC coil, 2 changeover contacts at 8 A) -25°C ... 35°C (RIF-4, DC coil, 3 changeover contacts at 8ÃA) -25°C ... 25°C (RIF-4, DC coil, 3 N/O contacts at 8 A) Ambient temperature (storage/transport): -25°C ... 85°C
Approvals	UKCA Certificate: UKCA-compliant Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Air clearances and creepage distances in a circuit Standards/regulations: IEC 60947-5-1
Mounting	Assembly instructions: Can be inserted into relay base Mounting position: any
